BW101-HS 2KW Single Galvo Handheld Welding Head for Fiber Welding/Cutting

Single Galvo Handheld Welding Head
Availability:
Quantity:
Inquire Add to Basket

  • BW101-HS

Product Description

BW101 2KW Hollow Motor Handheld Welding Head for Fiber Welding/Cutting

BW101 Laser Welding Head

Power rating 2KW; Handheld type with single axis wobbling size 1.7mm or 2.0mm.
* Light-duty design with comfortable access.
* Wide welding seam, low porosity and excellent melting pool protection.
* Single axis wobbling circle 1.7mm or 2.0mm by applying FL125mm or FL150mm.
* Various welding nozzles included for option.
* Multiple safety protection with auto beam off function once the nozzle goes away from workpiece.
* Laser welding control system and HMI panel are included.

* Wire feeder as optional to expand application range.


Product Paramenters:
Fiber Interface
QBH
Assist Gas Pressure

Clear Aperture
15mm
- Air Knife
N/A
Collimator Focal Length
60mm
- Protection Air
≤25L/min
Focusing Focal Length
125mm , 150mm
Weight
~ 0.8kg
Wobbling Circle Diameter
1.7mm/2.0 mm
Optional Tip Components
Coaxial Nozzle
Cover Glass



- Collimation Side (Top)
N/A


- Focusing Side (Bottom/Middle)
Φ20*3mm



Product characteristics:

Hollow motor handheld welding head:

Light weight, small size, simple operation, ergonomic design

Safety protection:

Multiple safety protection, no light can come out when leaving the workpiece, high safety

Process advantages:

Swing scanning of circular light spot increases the adaptability to plate gap

Various welding nozzle options:

Equipped with various welding nozzles to meet different process requirements


Technical parameter

Power level: 2000W

Optical aperture: 15mm

Scanning spot diameter: 1.7mm, 2.0mm

Applicable wavelength: 1070nm

Weight:~0.8kg

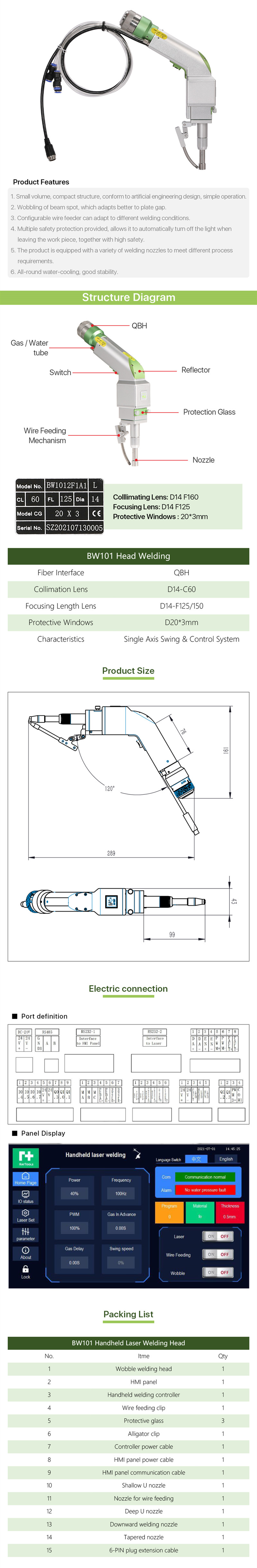

Hea0d416cbd5b46a69d7cf5faa3c49298o_副本

Raytools 激光加工头——焊接系列_07_副本
