Indusrial PC IBOX-701 Plus Fanless All Aluminum Barebone (Standard Port, 1*PCIE 4X + 1*PCI) with 3867U+ 8GB DDR4+ 128GB SSD
An industrial PC is a computer intended for industrial purposes (production of goods and services), with a form factor between a nettop and a server rack. Industrial PCs have higher dependability and precision standards, and are generally more expensive than consumer electronics.

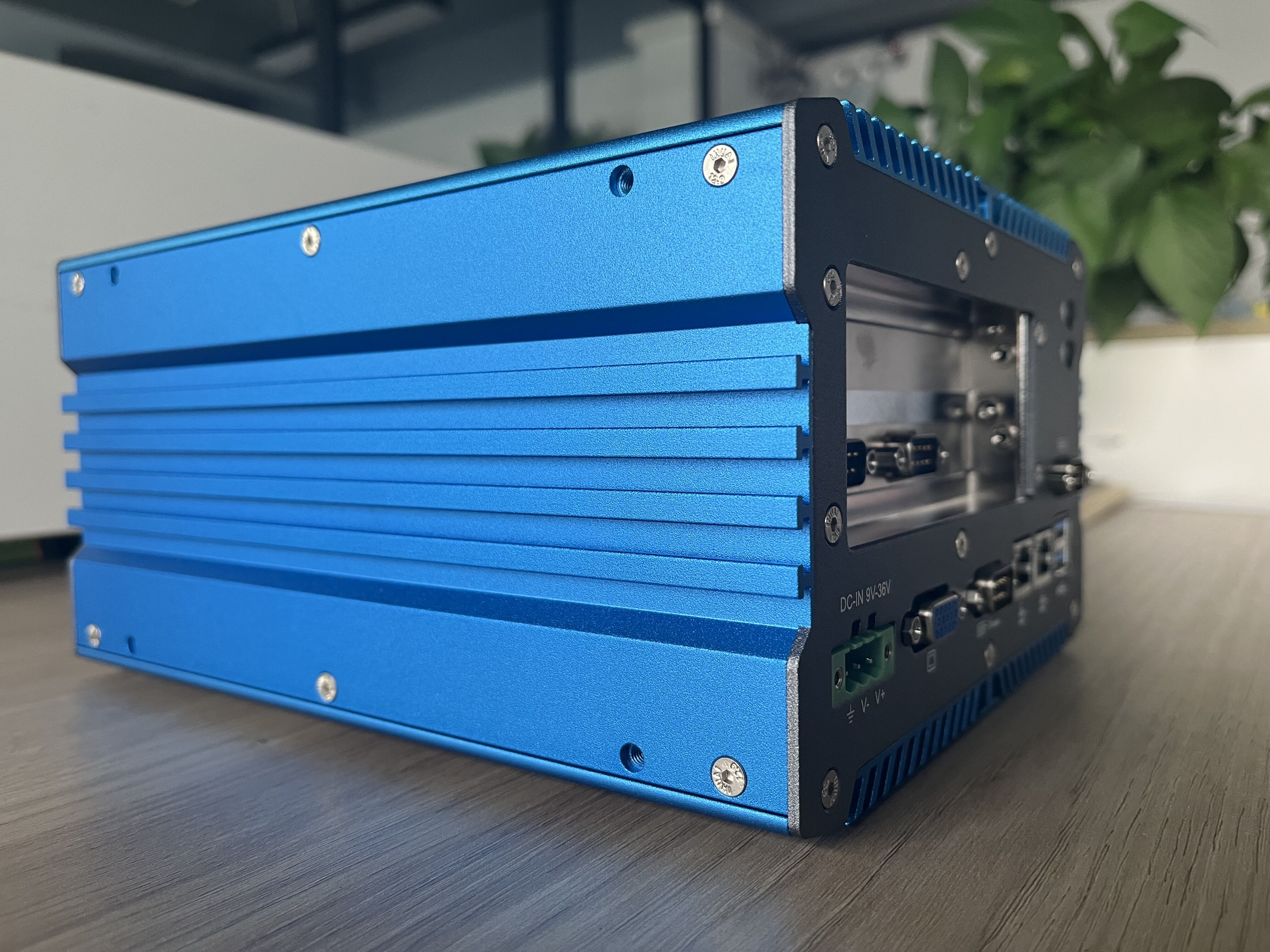

Indusrial PC IBOX-701 Plus
Advantages Features:
Fanless All Aluminum
Onboard Intel Celeron 3867U、Core i5 7200U
MAX: DDR4 16G Memory
Support 1*MSATA，Support 1*2.5" SATA
Support WIFI/3G/4G Module（choose one）
Support 6*COM（2 support RS232//422/485）
Support DC 9～36V wide voltage，power positive and negative reverse protection
Applied OS：Windows 7/8/10, Linux
Specifications:
Model
| IBOX-701 Plus |
Color
| Blue（other color can be customized） |
| Material | Pure Aluminu |
Processor | Onboard Intel Celeron 3865U/3867U (dual core，2MB second cache，1.8 GHz） |
Onboard Intel Core i5 7200U（dual core，2.5GHZ，turbo boost 3.1GHZ，TDP: 15W） |
| Ram | Support 1*DDR4 1866/2133 Memory Slot,，Max:16GB |
| Bios | PI AMI EFI BIOS |
| Display Chip | Integrated Intel HD Graphics 620 |
| Display port | 1*VGA（can exact another one HDMI port） |
| Front I/O | 2*USB3.0，2*USB2.0，2* Indicator Led，1* Power Switch |
Rear I/O
| 2*USB3.0，4*COM（2*COM Support RS232/422/485，Max 6*COM），2*Intel 1000M Lan, 1*VGA，1* phoenix power connector ，1*RS |
| Expansion port | Support 1*MINI PCIE（WIFI/3G/4G Optional），Embedded SIM Slot |
Support 1*MINI PCIE（for MSATA |
GPIO,PS/2,Audio,HDMI optional（Standard not include this） |
| Expansion slot | 1*PCIE 4X+1*PCI (32bit) OR 2*PCI (32bit) |
Lan
| 2*Intel i211-AT 10/100/1000M Lan |
| Storage | Onboard 1*2.5” SATA，1*MSATA |
| Power supply | DC 9～36V |
| Work temp | -10℃ ～ +50℃ |
| Work humidity | 0% ～ 95% Non-condensing |
Dimension
| 215 * 185 * 115 m |
| Weight | 3.6 kg |
IBOX-701P Drawing:
Application: Automation, Medical, Transportation, Warehouse, Education etc ..
Accessory:
Item Name
| Quantity | Specs
|
| Power Adapter | 1 | 12V/5A |
| Power Cord | 1 | Any Plug is optional (Chinese, British, USA standard etc) |

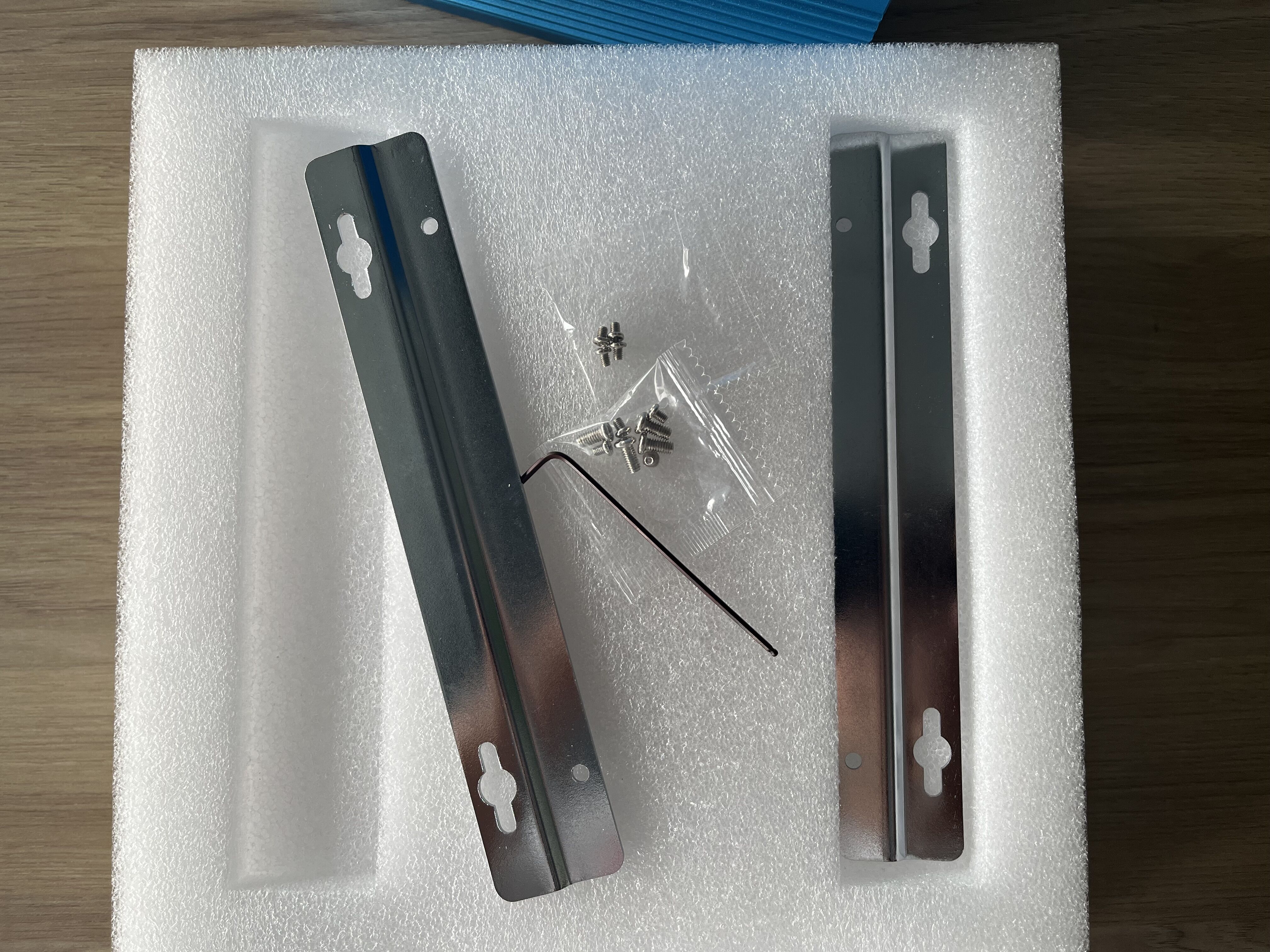

| Mount Braket | 2 |
|
| Driver CD | 1 | Neutral |
Order Information:
| Configuration 1 | Intel Celeron 3867U | Standard Port, 1*PCIE 4X + 1*PCI |
| Configuration 2 | Intel Celeron 3867U | Standard Port, 2*PCI |
Configuration 3 | Intel Core i5 7200U | Standard Port, 1*PCIE 4X + 1*PC |
Configuration 4 | Intel Core i5 7200U | Standard Port, 2*PCI |
