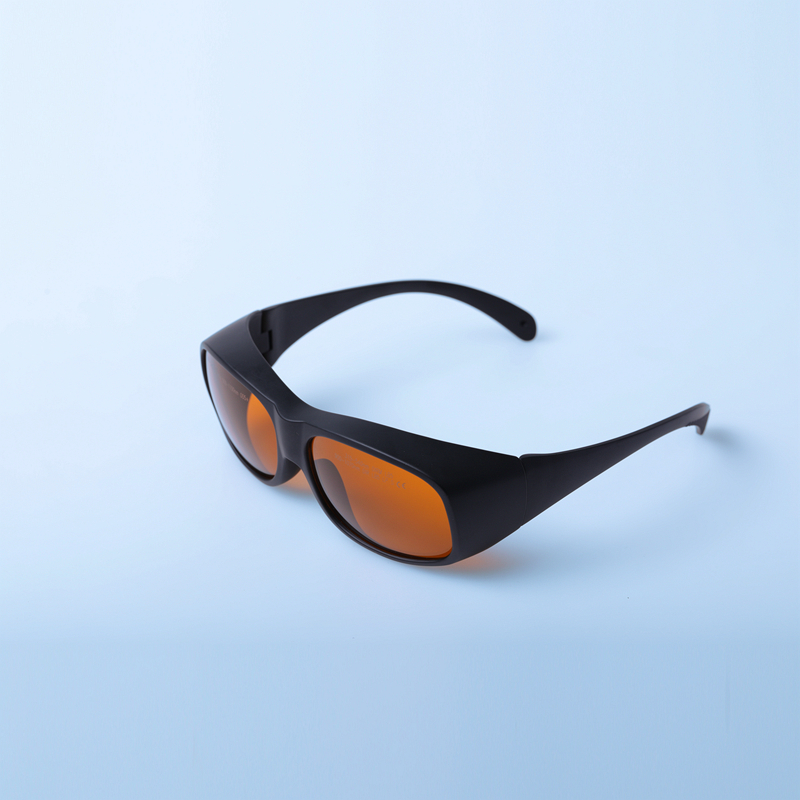

Laser Protective Goggles GTY 200-540nm&900-1100nm 1064nm for Laser Marking Cutting
GTY 33#
GTY 36#
GTY 52#
GTY 55#
GTY 200-540nm&900-1100nm
Optical Density : 200 - 540nm OD 6+
900 - 1100nm OD5+
LB-Rating : 315 - 540nm DIRM LB5
900 - 1070nm DIR LB5
Transmittance : 30%
Available for: 532nm & 1064nm etc.,
Application: 2 line YAG and KTP ,Q-Switch
According : CE EN207
Laser Safety World ™ The laser goggles are made of selected high-quality PMMA (acrylic) raw materials, which are in accordance with the EU CE EN207 standard. They are made of precise formula, exquisite injection molding, high protection level, crystal clear appearance and transparent light; No optical distortion, no blemish scratches. The lens frame of laser protective glasses is safe and comfortable, and can wear myopia glasses at the same time. It is widely used in: laser processing and manufacturing, laser alignment and calibration engineering, laser beauty and medical treatment and other fields.
Protection band: 190-490nm, optical density OD: 4~5+, VLT: 50%, applicable to ultraviolet and blue light.
Protection band: 190-550nm, optical density OD: OD7+@ 190-350nm
OD6+@350-380nm
OD5+@380-390nm
OD4+@390-410nm
OD5+@410-460nm
OD6+@460-525nm
OD5+@525-538nm
OD4+@ 538-542nm, VLT: 35%, applicable to ultraviolet, blue, green and 532nm lasers.
Protective wave band: 190-400nm 600-760nm, optical density OD: 5~6+, VLT: 35%, applicable to red light, 630nm laser and 660nm laser.
Protection wave band: 190-380nm, 750-860nm, optical density OD: OD6+@ 190-380nm
OD4+@380-383nm
OD3+@384-390nm
OD3+@740-749nm
OD5+@750-760nm
OD6+@760-770nm
OD7+@770-799nm
OD5+@800-855nm
OD4+@855-865nm
OD6+@ 808nm, VLT: 75%, applicable to red light, 755nm laser, 808nm laser, 810nm laser and pump laser.
Protection wave band: 190-450nm 800-1100nm, optical density OD: OD7+@ 190-280nm
OD6+@280-335nm
OD5+@335-360nm
OD6+@360-390nm
OD7+@390-440nm
OD6+@440-446nm
OD5+@446-450nm
OD5+@800-809nm
OD6+@809-940nm
OD7+@940-1100nm
OD8@1064nm , VLT: 60%, suitable for optical fiber infrared, 1064nm laser, and dark environment.
Protection wave band: 190-420nm, 850-1300nm
Optical density OD: OD7+@ 190-400nm
OD6+@400-410nm
OD5+@410-425nm
OD4+@425-450nm
OD4+@900-930nm
OD5+@930-960nm
OD6+@960-990nm
OD7+@990-1165nm
OD6+@1165-1185nm
OD5+@1185-1200nm
OD4+@1200-1220nm
OD3+@ 1225-1240nm VLT: 35%, suitable for optical fiber infrared, 1064nm laser, laser welding, laser cutting and laser cleaning.
Protection band: 190nm-550nm 800-1100nm
Optical density OD: OD7+@ 190-280nm
OD6+@280-535nm
OD5+@535-540nm
OD4+@540-546nm
OD3+@800-850nm
OD4+@850-900nm
OD5+@900-940nm
OD6+@940-962nm
OD7+@962-1050nm
OD6+@1050-1060nm
OD5+@1060-1075nm
OD4+@1075-1090nm
OD3+@ 1090-1100nm VLT: 35%, suitable for laser welding, laser cutting, laser cleaning, 532nm and 1064nm dual wavelength protection.
Protection band: 190nm-540nm 800-1100nm
Optical density OD: 8+VLT: 10%, suitable for laser welding, laser cutting, laser cleaning, 532nm and 1064nm dual wavelength protection.
Protection wave band: 190-450nm 800-1700nm
Optical density OD: OD7+@ 190-280nm
OD6+@280-450nm
OD5+@450-460nm
OD4+@460-475nm
OD3+@475-485nm
OD3+@780-820nm
OD4+@820-850nm
OD5+@850-870nm
OD6+@870-950nm
OD7+@950-1115nm
OD6+@1115-1180nm
OD5+@1180-1710nm
OD4+@1710-1780nm
OD3+@1780-1830nm
OD2+@ 1830-1900nm VLT: 40%, applicable to optical fiber infrared, 1064nm laser, 1319nm laser and 1540 nm laser.
Protection band: 600-1100nm optical density OD: 6+VLT: 25%, broad spectrum protection from red light to optical fiber infrared.
Protection wave band: 900-3000nm
Optical density OD: OD6+@ 190-265nm
OD5+@265-280nm
OD3+@880-910nm
OD4+@910-990nm
OD5+@990-1080nm
OD6+@1080-1480nm
OD5+@1480-1630nm
OD4+@1630-2400nm
OD3+@2400-2660nm
OD2+@2660-2830nm
OD3+@ 2830-3000nm 90% is applicable to 1319nm laser, 1540 nm laser, 2100 nm laser, 2780nm laser and 2940nm laser. The lens is completely transparent.
CO2-D4T20 10600nm 4+20% is applicable to ultraviolet, CO2 laser and 10600nm laser.
