Ospri Dual axis swing spot welding head LDW200 PLUS for laser welding machine

Dual axis swing spot welding head
LDW200 PLUS
Applicable power/Rated Power 2000W


Availability:
Quantity:
Inquire Add to Basket

  • LDW200 PLUS

  • Ospri

Product Description

双轴摆动光斑焊接头

Dual axis swing spot welding head

LDW200 PLUS

Applicable power/Rated Power 2000W


  • Adapt to QBH interface

  • X, Y dual-axis beam track editing

  • All-optical and body water cooling

  • Equipped with CCD camera module

  • Protective mirror drawer design, easy maintenance, effectively prolong product life


Product parameters:

Applicable wavelength: 1064nm

Collimated focus: 100mm/125mm/150mm/200mm

Focusing focal length: 150mm/200mm/250mm/300mm/400mm

Scanning range: X: 0~5mm Y: 0~5mm

Track frequency: 1500Hz

Shielding gas: coaxial/paraxial

Overall weight: 10.5KG

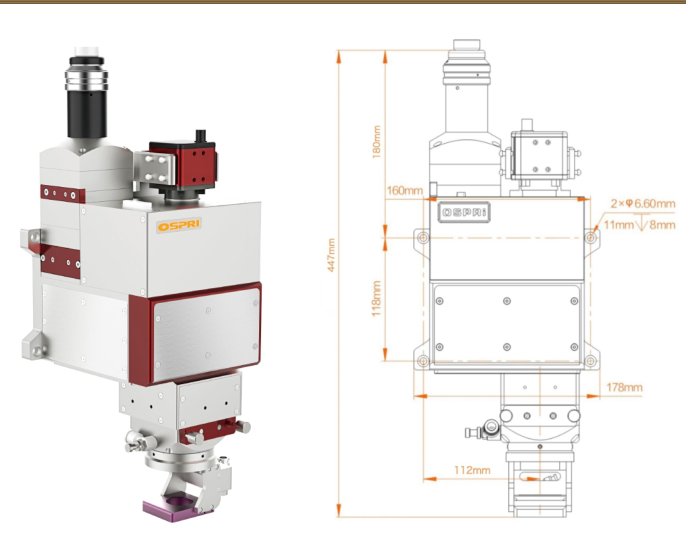

Dual axis swing spot welding head
