Ospri Fiber Laser Welding Head LW410 for Fiber laser welding machine

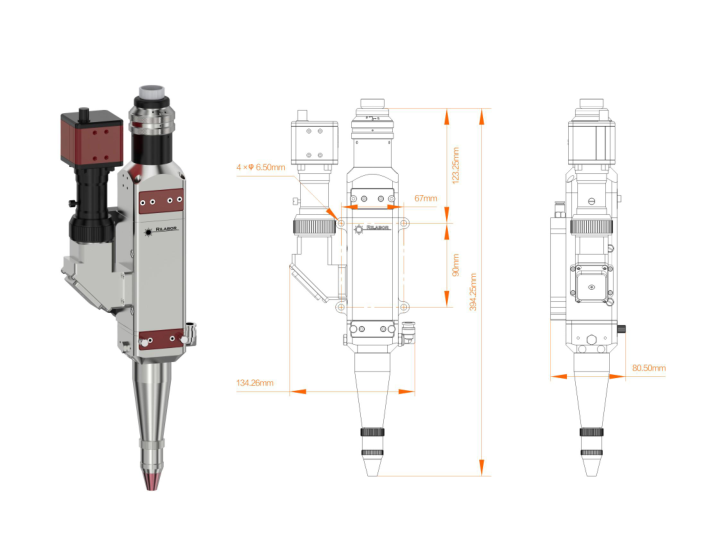

Fiber Laser Welding Head LW410


Availability:
Quantity:
Inquire Add to Basket

  • LW410

  • Ospri

Product Description
Fiber Laser Welding Head

Fiber Laser Welding Head

LW410

Laser Power

2000W/4000W

  • Anti-splash crossjet can extend the servide lifespan of protection window.

  • Water cooling for all optics and the cavity to extend service lifespan of the welding head.

  • Modular cartidge design of protection window is convenient for maintenance.

  • Integrated CCD and display module can carry visual software and seam tracking system.



Product parameters:

Connector Type:QBH Collimator Protection Window:PMD30T5
Applicable Wavelength: 1080±10nm Focus Protection Window: PMD30T5
Laser Power:2KW 、4KW Blowing Way: coaxial/airknife crossjet
Collimation Length:100mm、150mm Focus Length: F200、F250、F300
Gas Pressure: ≤1Mpa Net Weight: 3.2KG

Fiber Laser Welding Head LW410
