Ospri Handheld Wobble Laser Welding Head LHDW200 for Handheld laser welding machine

Handheld Wobble Laser Welding Head LHDW200


Availability:
Quantity:
Inquire Add to Basket

  • LHDW200

  • Ospri

Product Description

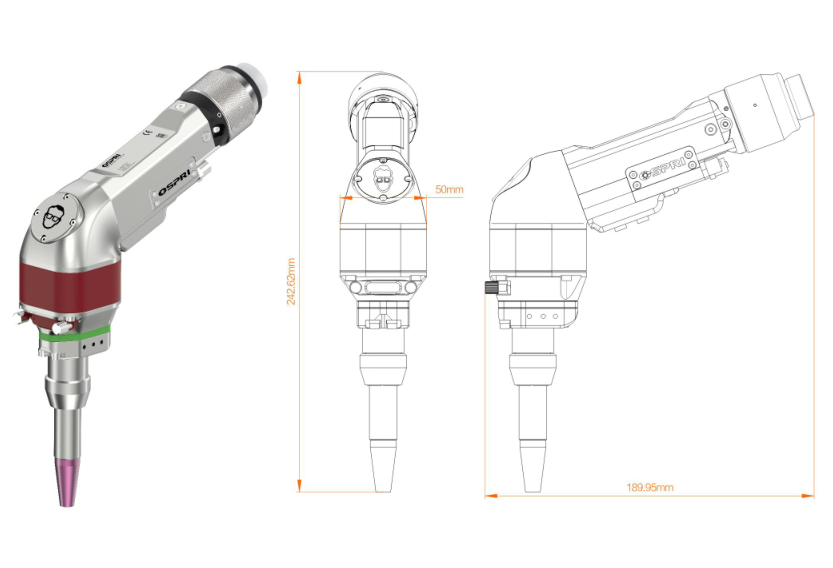

Handheld Wobble Laser Welding Head

Handheld Wobble Laser Welding Head

LHDW200

Laser Power

2000W

  • Protable and flexible with 0.88kG net weight.

  • Modular catridge of protection window is convenient for maintenance.

  • Ergonomic design is preferable to operate in long time processing.

  • Compatible with various nozzles to meet different welding technical demands.

  • Water cooling for all optics and the cavity to extend service lifespan of the welding head.

  • Capacitve safety protection to avoid laser damage during processing.



Product parameters:

Connector Type: QBH Wobble Range: 1.5mm
Applicable Wavelength: 1080±10nm Wobble Speed:600r/min - 6000r/min
Laser Power: ≤2KW Blowing Way: coaxial
Collimation Length:50mm Gas Pressure:≤1Mpa
Focus Length:F125、F150 Net Weight:0.88KG

Handheld Wobble Laser Welding Head
