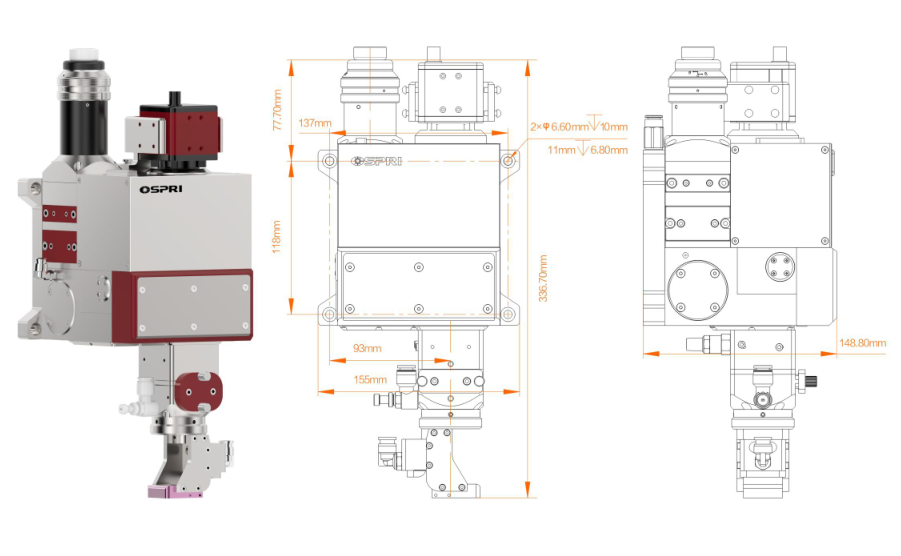

Ospri Intelligent Double-axis Wobble Welding Head LDW200/LDW400 for 2000W 4000W laser welding machine

Intelligent Double-axis Wobble Welding Head LDW200/LDW400


Availability:
Quantity:
Inquire Add to Basket

  • LDW200/LDW400

  • Ospri

Product Description


Intelligent Double-axis Wobble Welding Head

Intelligent Double-axis Wobble Welding Head

LDW200/LDW400

Laser Power

2000W/4000W

  • Editable laser spot trajectory.

  • Water cooling for all optics and the cavity to extend service lifespan of the welding head.

  • Laser Power:2000W / 4000W

  • Integrated CCD and display module can carry visual software and welding seam tracking system.


    Product parameters:

    Collimation Length: 75mm

    Focus Length: 150mm/200mm/250mm/300mm

    Scanning Range: X: 0~5mm Y: 0~5mm

    Wobble Frequency: 1500Hz

    Overall weight: 5.7KG

    Intelligent Double-axis Wobble Welding Head
