Ospri Single-axis swing hand-held welding head LHSW200 for Handheld laser welding machine

Single-axis swing hand-held welding head LHSW200


Availability:
Quantity:
Inquire Add to Basket

  • LHSW200

  • Ospri

Product Description

单轴摆动手持焊接头

Single-axis swing hand-held welding head

LHSW200

Applicable power/Rated Power

2000W


  • Adapt to QBH interface

  • The double-piece protective mirror drawer design is convenient for maintenance and effectively prolongs the life of the focusing mirror

  • First-class high-precision industrial-grade processing, with a total mass of 0.94kg, lightweight and convenient

  • Match a variety of welding nozzles for different process requirements

  • Full optical and body water cooling to ensure stable and continuous work

  • Capacitive safety protection to ensure safe production


    Product parameters:

    Applicable wavelength: 1080±10nm Swing speed: 0~4000mm/s

    Collimation focal length: 50mm Swing range: 0~5mm

    Focusing focal length: 125mm/150mm Auxiliary air pressure: ≤1Mpa

    Blowing method: coaxial blowing Weight: 0.94KG

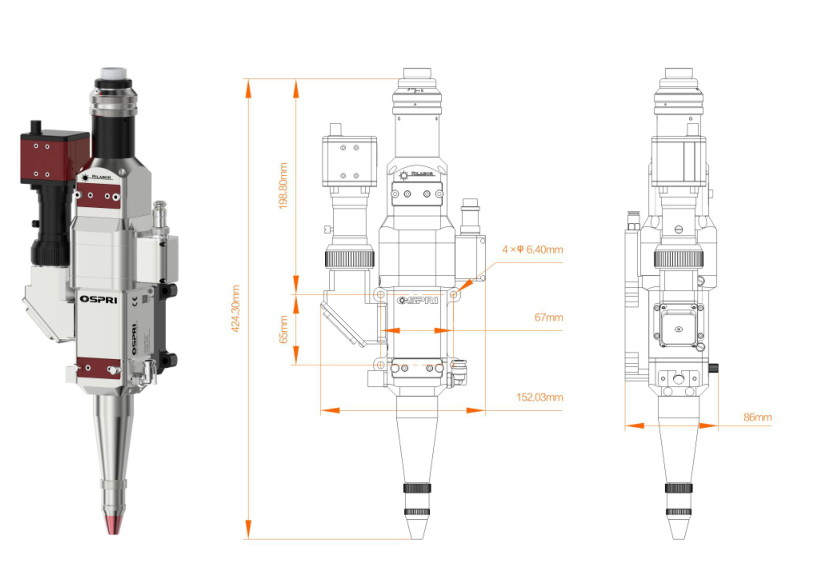

    Single-axis Wobble Laser Welding Head LRW410
