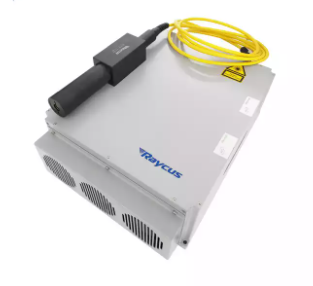

Raycus 30W RFL-P30QB Q-Switched Pulsed Fiber Laser Source for Marking

Raycus Q-Switched Pulse Fiber Laser Sources for Marking Machine 30W RFL-P30QB

Raycus pulsed laser is an ideal high power laser source with high speed and high efficiency.  It is specially designed for industrial laser making system and other applications.

Compared with traditional lasers, pulsed laser has some unique advantages in increasing the  conversion efficiency of the pump light 10 times higher.Its low power consumption and  automotive design make it appropriate for operating both in and outside the lab. Besides, it is  exquisite and convenient for its independence in placement, free time in using and facility in  connecting to equipment directly.

Raycus fiber laser

source QB Series 20W 30W

1. High beam quality fiber output.
2. Superior reliability, long lifetime.
3. No shadow or virtual open circuit phenomenon when processing on special materials.

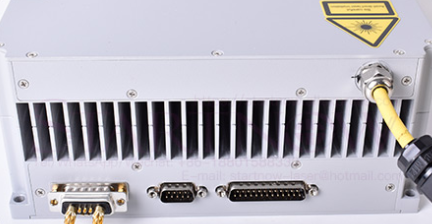

4. Universal DB-25 interface.

RFL-P30QB

The Q-switched pulsed fiber laser series developed by Raycus Laser is an industrial-grade marking and micromachining laser developed by Raycus Laser. This series of pulsed lasers have the characteristics of high peak power, high single-pulse energy, and optional spot diameter. In the fields of marking, precision machining, graphic engraving, etc., in the marking application process, the cost is lower and the performance is more stable than the traditional laser.

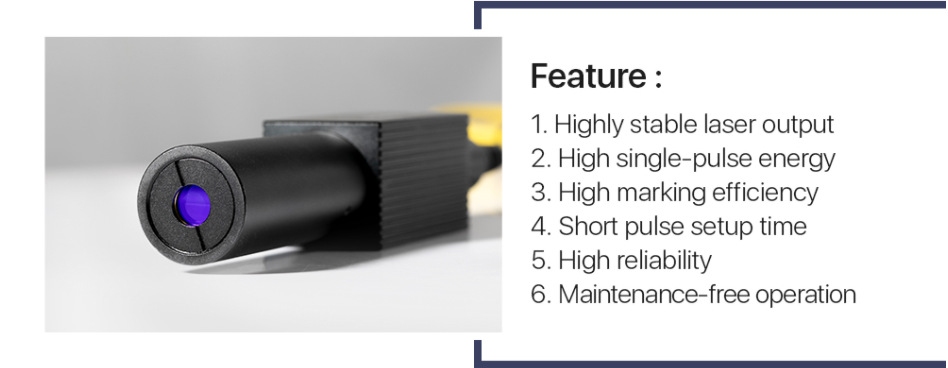

Features:

• High stability laser output

• High single pulse energy

• High marking efficiency

• Short pulse settling time

• High reliability

• Maintenance-free operation




Optical characteristics:

• Rated output power: 30W

• Center wavelength (nm): 1064

• Repetition frequency: 30-60

• Output power stability (%): <3

Output characteristics:

• Output spot diameter (mm): 5.7-8

• M²:＜1.6

• Polarization State: Random

• Pulse width: 120-150@30KHZ

• Maximum single pulse energy: 1

• Output fiber length: 3 (can be customized)

Electronic control characteristics:

• Input Power (VDC): 24

• Power adjustment range (%): 0~100




Other features:

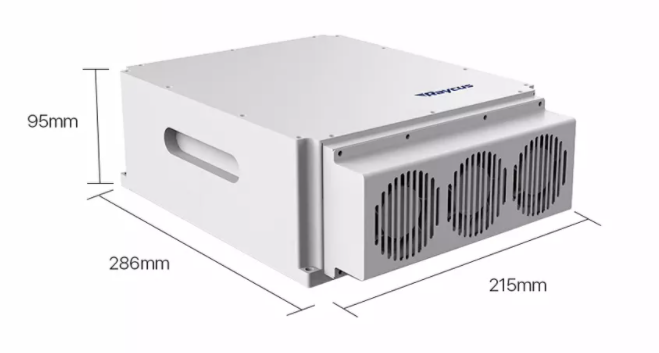

• Dimensions (W*H*D) ( mm ): 215*290*95

• Cooling method: air cooling

• Working temperature (℃): 0-40

Application of RFL-P30QB:

Material processing, marking, deep engraving, cleaning, precision welding, micro-machining, metal sheet cutting and punching, scribing, textured silicon processing, resistance adjustment, resistance adjustment, ITO film etching

Package accessoriesare：

Please refer to package accessoriesare in the packing box.

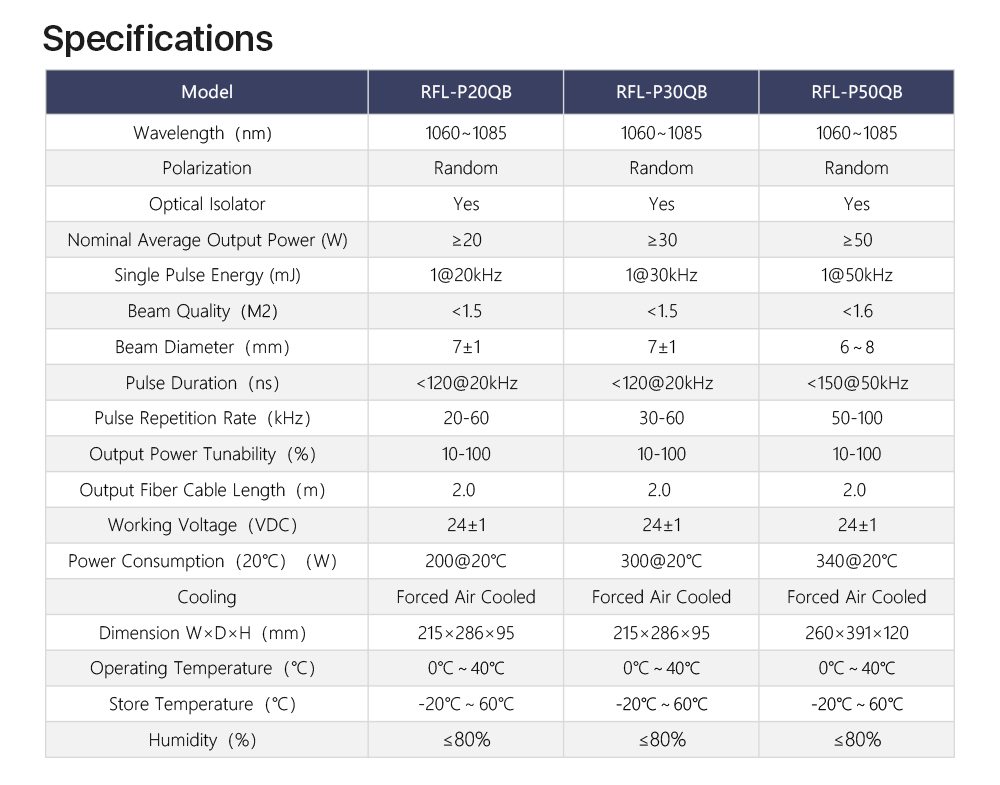

Raycus fiber laser marking source specifications:
