Raycus ABP Hybrid Cleaning Lasers for laser cleaning and Rust removal

Name: Raycus ABP Hybrid Cleaning Lasers for laser cleaning and Rust removal
Brand: Raycus
Rating: 5.0 (68 reviews)

Raycus ABP hybrid cleaning laser has ring beam combining technology to shape the output laser into ring spot. The central core is the pulsed spot with high peak power, and the ring core is a high-power continuous spot. Those two
spots are independent of each other without covering. Compared with traditional hybrid cleaning beam create through the combination of external optical paths, the power density of the outside ring beam of the ABP Hybrid Laser is increased significantly, greatly improving cleaning efficiency. For different cleaning surface materials and colors, a wider range of wavelengths can be selected. Combined with automatic methods, it can be widely used in rail transit, ships, aerospace and other fields, and can achieve large-scale cleaning of rust layers, aluminum alloys and other non-ferrous metal oxide layers.

Availability:

Quantity:



Inquire Add to Basket

Model:
Raycus
Brand:
Raycus

Product Description

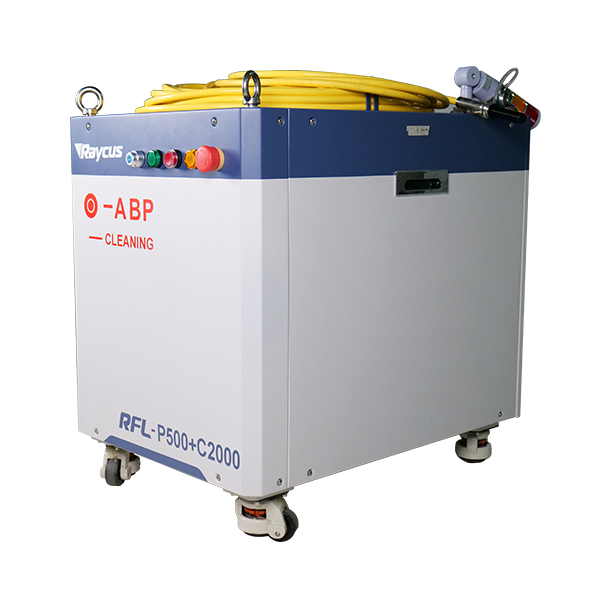

Raycus ABP Hybrid Cleaning Lasers for laser cleaning and Rust removal

Introduction：

Raycus ABP hybrid cleaning laser has ring beam combining technology to shape the output laser into ring spot. The central core is the pulsed spot with high peak power, and the ring core is a high-power continuous spot. Those two spots are independent of each other without covering. Compared with traditional hybrid cleaning beam create through the combination of external optical paths, the power density of the outside ring beam of the ABP Hybrid Laser is increased significantly, greatly improving cleaning efficiency. For different cleaning surface materials and colors, a wider range of wavelengths can be selected. Combined with automatic methods, it can be widely used in rail transit, ships, aerospace and other fields, and can achieve large-scale cleaning of rust layers, aluminum alloys and other non-ferrous metal oxide layers.

Rust removal

Product Specifications：

Index value of central facula

Working mode: pulse

Offset mode: random

Output power: 500W

Power regulation range: 10~100%

Power instability: ≤± 1.5%

Modulation frequency: 20~50kHz

Pulse width: 80~110ns, 120~160ns

Pulse establishment time:<200us

Pulse off time:<100us

Central wavelength: 1064 ± 5nm

Red light power: 0.5~1mW

Beam quality BPP: (3~5) mm × mrad

Output optical cable connector: IQB

Fiber diameter of output optical cable: 100/130/300um

Length of output optical cable: 10m

Power supply voltage: 220 ± 10% Vac, 50/60Hz

Control mode: RS-232/AD/Ethernet

Maximum power consumption: 8500W

External dimension: 512mm wide × 740mm high × 729mm deep (including elevator ring casters)

Weight:<120kG

Working environment temperature: 10~40 ℃

Humidity of working environment:<70%

Storage temperature: - 10~60 ℃

Cooling mode: water cooling

Central spot test conditions

Offset mode: random

Output power: 50kHz@Pmax

Power regulation range: 10~100%

Power instability: continuous 5h@50kHz ,Pmax

Pulse width: 10kHz@Pmax 20~50kHz@ Pmax

Pulse establishment time: 50kHz@P =0～90% Pmax

Pulse off time: 50kHz@P =100～10% Pmax

Central wavelength: 50kHz@Pmax

Red light power: 0.5~1mW

Beam quality BPP: 50kHz@Pmax

Output optical cable connector: IQB

Fiber diameter of output optical cable: 100/130/300um

Length of output optical cable: 10m

Power supply voltage: 220 ± 10% Vac, 50/60Hz

Control mode: RS-232/AD/Ethernet

Maximum power consumption: 8500W

External dimension: 512mm wide × 740mm high × 729mm deep (including elevator ring casters)

Weight:<120kG

Working environment temperature: 10~40 ℃

Humidity of working environment:<70%

Storage temperature: - 10~60 ℃

Cooling mode: water cooling

Index value of annular facula

Working mode: pulse/continuous

Offset mode: random

Output power: 2000W

Power regulation range: 10~100%

Power instability: ≤± 1.5%

Modulation frequency: 50~20000Hz

Pulse width:>50us

Pulse establishment time:<100us

Pulse off time:<100us

Central wavelength: 1080 ± 5nm

Red light power: 0.5~1mW

Beam quality BPP: (15~19) mm × mrad

Output optical cable connector: IQB

Fiber diameter of output optical cable: 100/130/300um

Length of output optical cable: 10m

Power supply voltage: 220 ± 10% Vac, 50/60Hz

Control mode: RS-232/AD/Ethernet

Maximum power consumption: 8500W

External dimension: 512mm wide × 740mm high × 729mm deep (including elevator ring casters)

Weight:<120kG

Working environment temperature: 10~40 ℃

Humidity of working environment:<70%

Storage temperature: - 10~60 ℃

Cooling mode: water cooling

Ring spot test conditions

Offset mode: random

Output power: @ Pmax

Power regulation range: 10~100%

Power instability: continuous 5h@Pmax

Pulse establishment time: 0~90% Pmax

Pulse off time: 100~10% Pmax

Central wavelength: Pmax

Red light power: 0.5~1mW

Beam quality BPP: Pmax

Output optical cable connector: IQB

Fiber diameter of output optical cable: 100/130/300um

Length of output optical cable: 10m

Power supply voltage: 220 ± 10% Vac, 50/60Hz

Control mode: RS-232/AD/Ethernet

Maximum power consumption: 8500W

External dimension: 512mm wide × 740mm high × 729mm deep (including elevator ring casters)

Weight:<120kG

Working environment temperature: 10~40 ℃

Humidity of working environment:<70%

Storage temperature: - 10~60 ℃

Cooling mode: water cooling

Applications：

Rust removal

Fouling and grease cleaning

Tire mold cleaning

Paint removing

Welding surface pre-treatment

Portrait stone surface treatment

Technical Advantages：

Ultra high power compounding

Higher cleaning efficiency

Two beam spots can be adjusted independently

Wider wavelength range

No need for external optical path design

Small size

Rust removal cleaning laser laser cleaning Pulsed laser cleaning Paint removing Fouling and grease cleaning Welding surface pre-treatment Tire mold cleaning Portrait stone surface treatment rust removal control system
