Raycus fiber laser source laser power RFL-C1000H for laser welding single module cw fiber

Name: Raycus fiber laser source laser power RFL-C1000H for laser welding single module cw fiber
Brand: Raycus
Rating: 5.0 (12 reviews)

It has the advantages of high electro-optical conversion efficiency, good beam quality, high energy density, wide modulation frequency, strong reliability, long life, and maintenance-free operation. It can be widely used in welding, precision cutting, cladding, surface treatment, 3D printing and other fields. Its optical fiber output characteristics make it easier to integrate with robots into flexible manufacturing equipment to meet the needs of three-dimensional processing.

Availability:

Quantity:



Inquire Add to Basket

Model:
RFL-C
Brand:
Raycus

Product Description

Raycus fiber laser source laser power RFL-C1000H for laser welding single module cw fiber

Product Description：

The third-generation single module CW fiber laser series developed by Raycus range from 300W to 30000W, the new lasers have higher electro-optical conversion efficiency, higher and more stable optical quality, stronger altitude stress-resisting capacity and it applies optimized second-generation fiber transmission system to ensure more stable and more sophisticated cutting effect in thick sheet cutting. This machine applies to many application scenarios cutting welding , holing, medical device processing, etc., with a narrow seam of the cut sheet and bright section. Compared with same lasers, it has obvious advantages.

Feature

①.High Electro-optical Conversion Efficiency

②.Stable beam quality

③.Sheet Cutting Efficienc

④.Altitude Stress-resisting Capacity

⑤.Maintenance-free Operation

⑥.Customized Output Fiber Length

Product Specifications

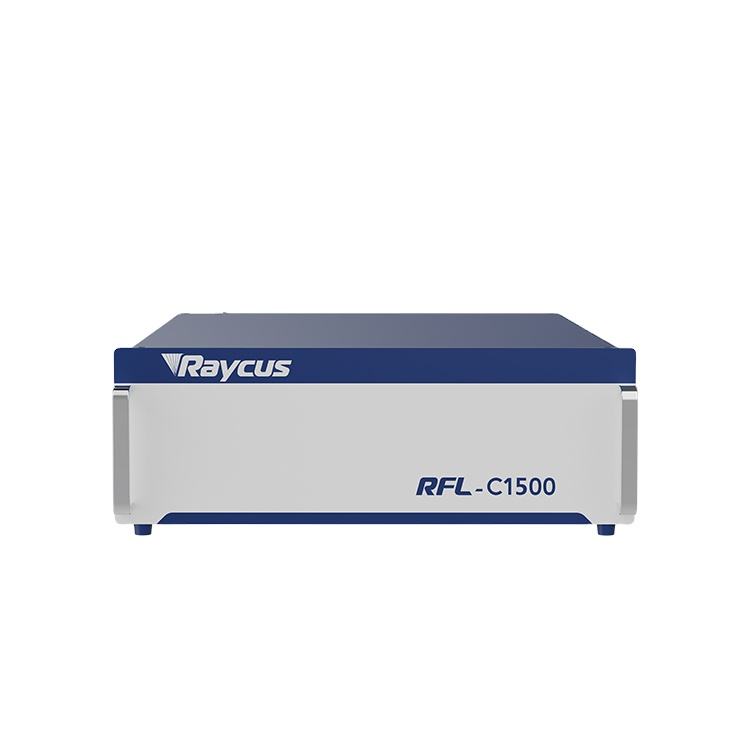

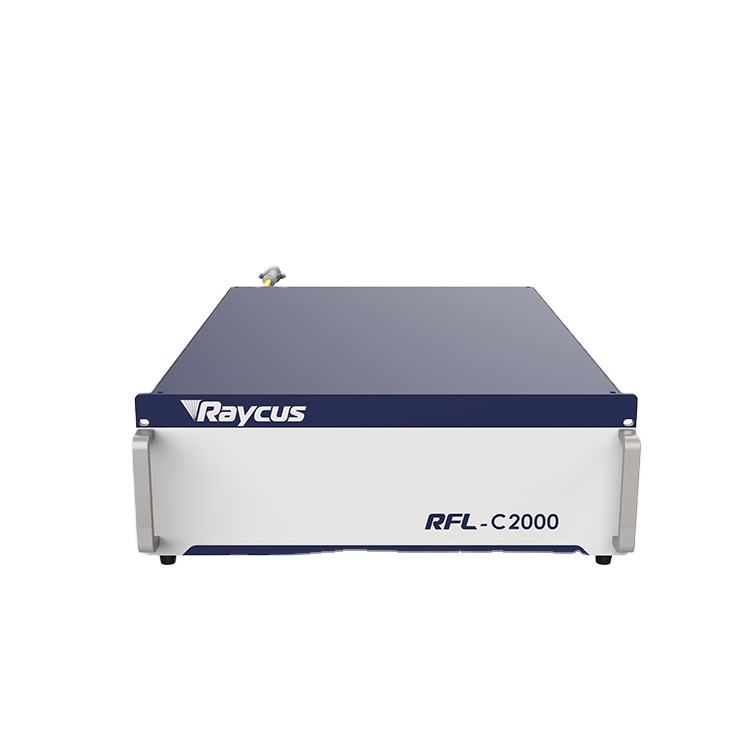

Model	RFL-C1000H	RFL-C1500H	RFL-C2000H
Average Output Power (W)	1000	1500	2000
Central Wavelength(nm)	1080±5
Modulation Frequency(HZ)	50~20,000		1~5,000
Operation Mode	CW / Modulate
Output Power Stability(%)	±1.5
Red Light Indicated Power(mW)	0.01~1		0.5~1
BPP(mm.mrad)	＜1.5
Beam Divergence(rad)	≤0.06		＜0.06
Fiber core	50（100、200 Optional)		50
Delivery Cable Length(m)	10
Operation Voltage(V AC)	220±10%V AC、50 / 60Hz		380±10%V AC.50 / 60Hz
Control Method	RS-232/AD/Ethernet

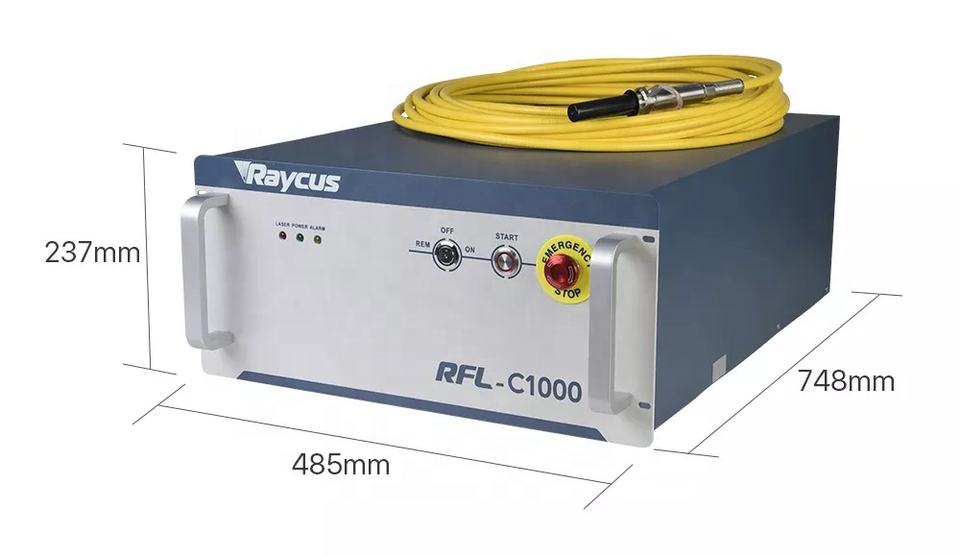

Dimensions(W×H×D)(mm)	410×405×150（handle included)	410×610×150（handleincluded)	900×447×237 （handle included)
Weight(kg)	＜25	＜40	＜70
Operating Temperature(℃)	10~40
Cooling Method	Water cooling

1	Alarm	Laser fault indicator
2	Laser	Laser output indicator
3	Power	Power Indicator, indicates that the power is switched on when the LED illumines.
4	Water pipe joint	Pagoda joint, insert the quick-plug water pipe with an outer diameter of 16 into the pagoda head and fasten it with a clamp to connect the laser to the circulating cooling water.
5	Interface	Laser external control interface, see [4.4 Interface and Definition]
6	RS232	232 serial interface for communication between laser and host computer.
7	ETHERNET	Ethernet interface for communication between laser and upper computer.
8	Power	Rocker switch for turning on the laser's main power.
9	AC Input	220V Power line input
