TECHMECH Speed reducer for laser cutting machine
Product name: Precision planetary reducer
Product series: TD series
Product number:
TD064/TD090/TD110/TD140/TD200
Features:
High rigidity, high efficiency, small volume, high torque, low backlash, low noise
product description:
● Compact swivel flange output saves space and increases torsional rigidity
● Standardized flange interface ensures quick installation of drive components
● Return clearance ≤ 3 arc minutes
● Standard reduction ratio from 4-100
● The standard temperature is -10℃-90℃, if your needs exceed this range, please contact us
● Protection class is IP65
● Lifetime maintenance free

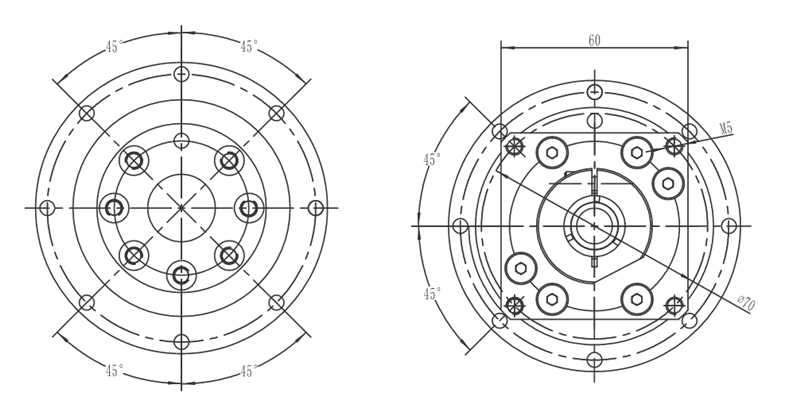

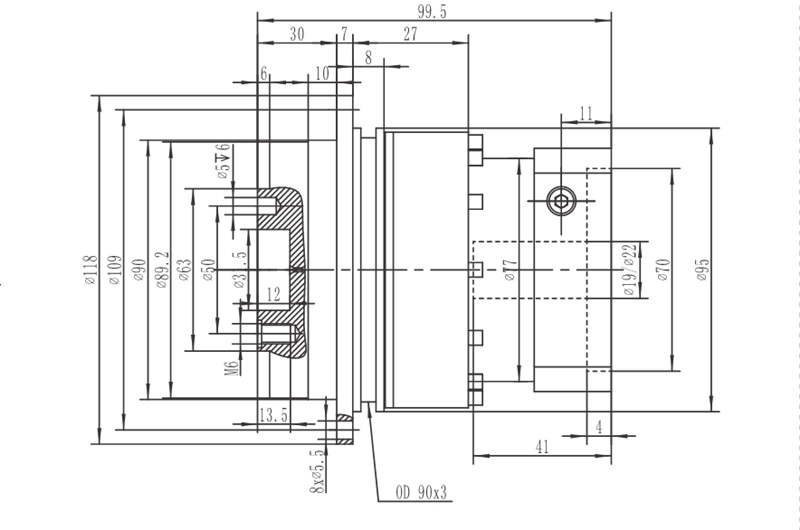

TD090 Single stage----TD090 One Stage

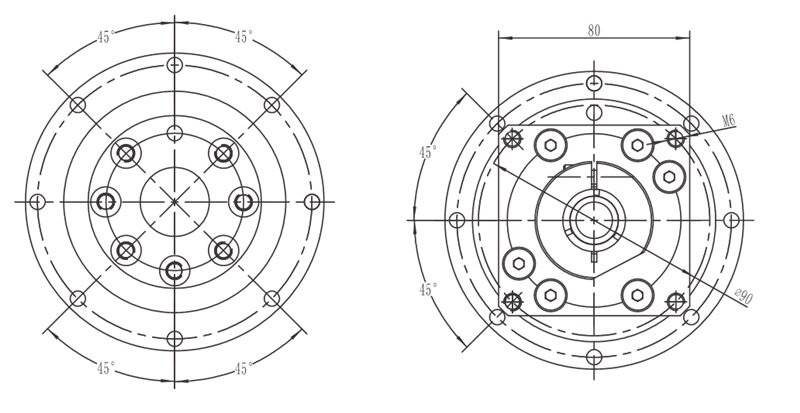

TD090 Single stage----TD090 Two Stage

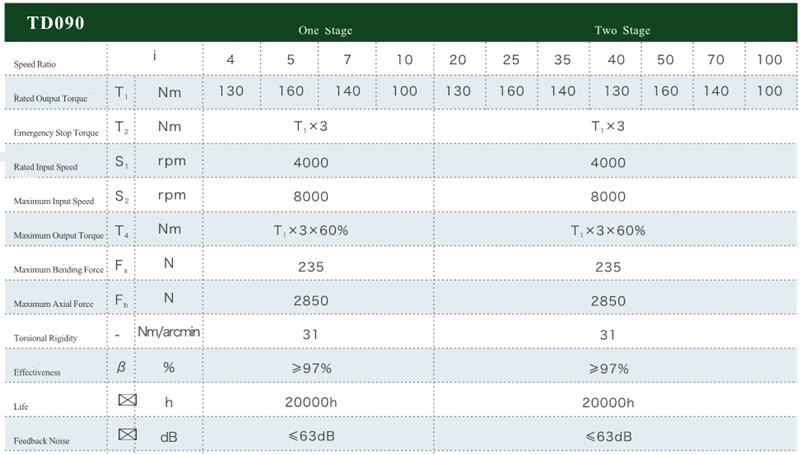

Performance data：
TD series reducers can meet some very special needs. High rigidity, high performance and compact structure are the most important features of this product.
