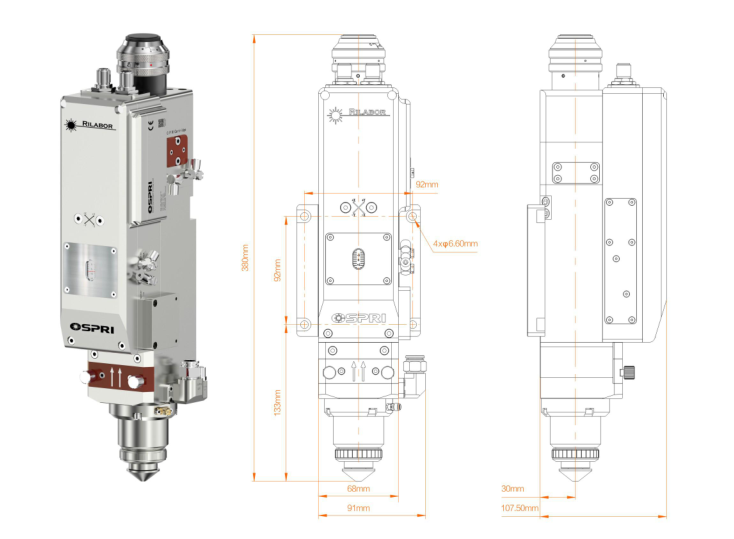

4000W Auto focus Cutting Head LC40 for laser cutting machine

Auto focus Cutting Head

LC40


Availability:
Quantity:
Inquire Add to Basket

  • LC40

  • Ospri

Product Description

Auto focus Cutting Head

Auto focus Cutting Head

LC40

Laser Power

≤4000W

  • Suits for QBH connector.

  • Water cooling for all optics and cavity of cutting head.

  • Dust-proof design with three protection windows.

  • Applicable laser power 2000W/4000W.

  • Light in weight and compact in size, cost-effective.


    Product parameters:



    Focus Length 125mm/150mm/200mm
    Collimation Length 75mm/100mm
    Focusing Range -10mm~+10mm
    Focusing Speed ≤100mm/s
    Auxiliary Gas ≤2.5Mpa
    Weight 3.9KG


    Auto focus Cutting Head
