Collimating Focusing Lens And Fiber Laser Cutting Head Assembly for BMH109 BMH110 BMH111 BMH114S BT210S BT240 BT240S

The collimating focusing lens and fiber laser cutting head assembly is a crucial component in fiber laser cutting systems.
Availability:
Quantity:
Product Description

The collimating focusing lens and fiber laser cutting head assembly is a crucial component in fiber laser cutting systems.

O1CN015gMSj51WTrq6twnGF_!!2212783982790

Overview

  • Collimating Lens: This lens converts the divergent laser beam emitted by the fiber laser into a parallel beam. It ensures that the laser light is effectively focused onto the workpiece, allowing for precise cutting.

  • Focusing Lens: The focusing lens concentrates the parallel beam onto a small spot size at the cutting surface, which is essential for achieving high power density. This is important for cutting various materials with precision.

  • Collimation Tube: This part houses the collimating lens and ensures proper alignment and stability of the laser beam. It helps maintain the beam quality during operation.

  • Mirror Assembly: Often integrated into the cutting head, mirrors direct the laser beam to the focusing lens while maintaining the beam's integrity. They are typically designed to handle high power without distortion.

  • Fiber Connection: This component connects the fiber optic cable from the laser source to the cutting head. It ensures minimal loss of laser power during transmission.

Model Number Type Specifications Part Number
BMH109 Collimating Lens Group D28-F100-1.5KW 120AH0600A
BMH109 Focusing Lens Group D28-F125-1.5KW 120AH0700A
BMH109 Focusing Lens Group D28-F150-1.5KW 120AH0800A
BMH110 Collimating Lens Group D30-F100-3KW 210CLA1013
BMH110 Focusing Lens Group D30-F125-3.3KW 210FLA4013
BMH110 Focusing Lens Group D30-F150-3KW 210FLA4023
BMH110 Focusing Lens Group D30-F200-3KW 210FLA4032
BMH111 Collimating Lens Group D30-F100-3KW 120AG0600A
BMH111 Collimating Lens Group D30-F75-3.3KW 120AG0610A
BMH111 Focusing Lens Group D30-F125-3KW 120AG0700A
BMH111 Focusing Lens Group D30-F155-3KW 120AG0800A
BMH111 Focusing Lens Group D30-F125-2KW 120AG0900A
BMH111 Focusing Lens Group D30-F200-6KW 120AG1400A
BMH114S Collimating Lens Group D37-F100-4KW 120A32700A
BMH114S Focusing Lens Group D38.1-F200-6KW 120A30800A
BT210S Collimating Lens Group D28-F100-1.5KW 120AH0600A
BT240 Collimating Lens Group D30-F100-1.5KW 210CLA4014
BT240 Focusing Lens Group D30-F125-1.5KW 210FLA4014
BT240 Collimating Lens Group D30-F100-3KW 210CLA4013
BT240 Focusing Lens Group D30-F125-3KW 210FLA4013
BT240S Collimating Lens Group D30-F100-1.5KW 120A60021A
BT240S Focusing Lens Group D30-F125-1.5KW 120A60023A
BT240S Collimating Lens Group D30-F100-3.3KW 120A60022A
BT240S Focusing Lens Group D30-F125-3KW 120A60024A
BMH114S Collimating Lens Assembly D37-F100-6KW 120BH1001A
BMH114S Focusing Lens Assembly D37-F200-6KW 120BH1006A
BMH114S Focusing Lens Assembly D37-F150-6KW 120BH1002A
BMH111 Collimating Lens Group D30-R100H-3KW 120AG1300A
BM06K Collimating Lens Assembly D37-F100 120BT0300Z
BT240S Focusing Lens Group D30-F150-3KW 120A60025A


Key Features

  1. High Precision: The design of the collimating and focusing lenses allows for extremely precise laser cutting, making it suitable for intricate designs and thin materials.

  2. Versatility: The assembly can be used for various materials, including metals, plastics, and composites, depending on the laser's wavelength and power settings.

  3. Easy Integration: The cutting head is designed for easy integration with different laser systems and CNC machines, facilitating straightforward setup and operation.

  4. Durability: Constructed from high-quality materials, the assembly is designed to withstand the high temperatures and stresses associated with laser cutting.

  5. Cooling Mechanism: Many assemblies include built-in cooling systems to manage heat generated during the cutting process, prolonging the life of the components.

Applications

  • Metal Fabrication: Ideal for cutting sheets of steel, aluminum, and other metals in automotive and aerospace industries.

  • Signage: Used for creating intricate designs and lettering in various materials.

  • Electronics: Enables precise cuts for components and circuit boards.

  • Art and Design: Popular in the production of decorative pieces and custom artwork.

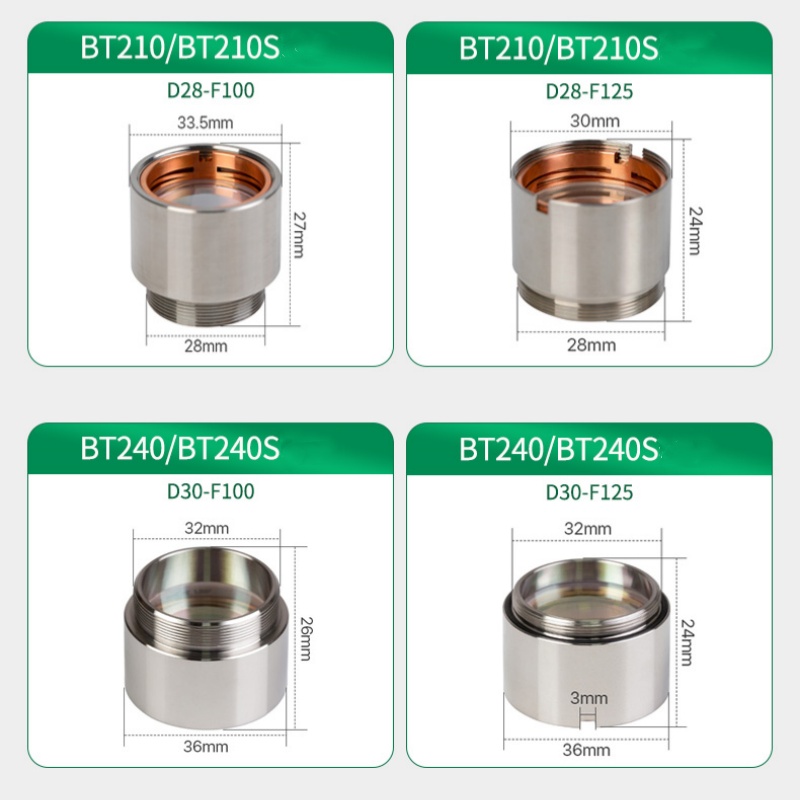

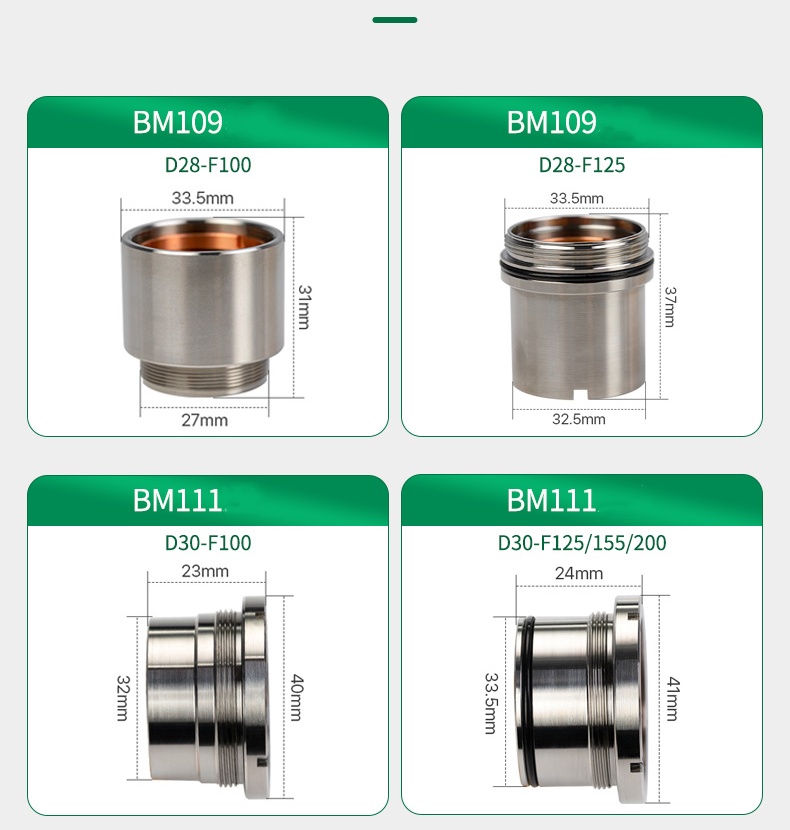

O1CN01AyyN3L1WTrpyiral7_!!2212783982790O1CN01zWqN2V1WTrpycOKOU_!!2212783982790
