Fiber laser cutting head lens maintenance
1. Maintenance and replacement of protective mirror
The cutting effect is not good, but the cutting protection mirror is normal, and there is a burning spot detected by the optometry
When the lens is damaged, it is usually caused by the contamination of the collimating protective lens or the focusing protective lens. At this time, after-sales personnel are required to check whether the lens has burning spots. Before inspection, wipe the exterior with a lint-free cloth dipped in alcohol.

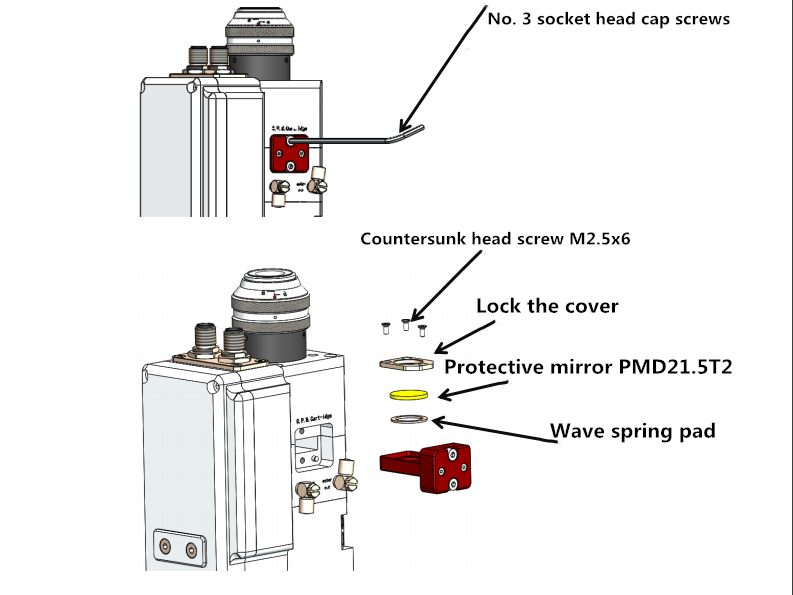

The disassembly and assembly of the collimating protective mirror, the disassembly method is shown in the figure below
Disassembly and assembly of the focus protection lens
Loosen the two M4×16 socket head cap screws, take out the protective mirror drawer, and replace the protective mirror (PMD30T5)

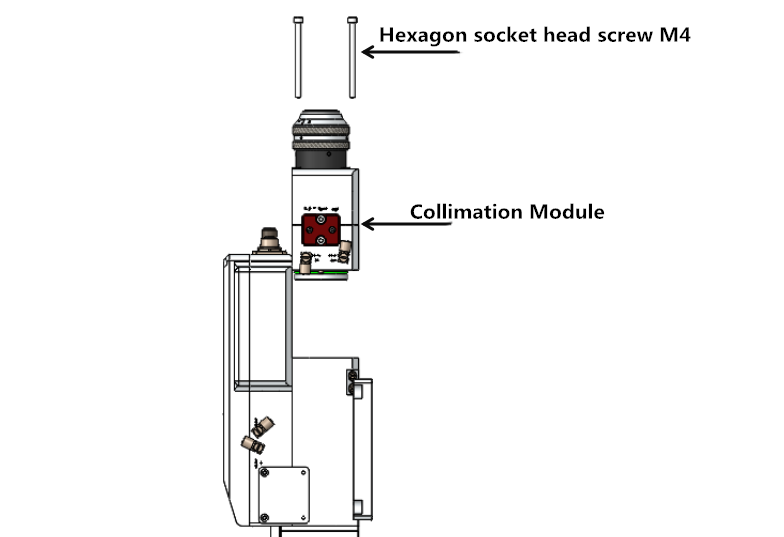

Maintenance and replacement of collimator lenses
Maintenance and replacement of collimator lenses
Disassembly and assembly of F75 collimator lens
Maintenance and replacement of collimator lenses
Disassembly and assembly of F100 collimator
Maintenance and replacement of collimator lenses
Cleaning of the collimator
① Use tools: clean cotton swabs, isopropyl alcohol, and fill with dry and pure compressed air.
② Spray isopropyl alcohol onto the dust-free swab.
③ Gently pinch the side edge of the lens with your left thumb and index finger.
④ Hold the dust-free swab in the right hand, and gently wipe from bottom to top or from left to right in a single direction.
Wipe the front and back sides of the lens, and blow the surface of the lens with filled dry and pure compressed air to make sure
Confirm that there is no foreign matter on the lens surface after cleaning.
⑤ The cleaned collimating lens must be installed in the collimating lens holder and inserted into the cutting head as soon as possible.
Maintenance and replacement of focusing lens
Disassembly and assembly of focusing lens
Maintenance and replacement of focusing lens
Disassembly and assembly of focusing lens
Maintenance and replacement of focusing lens
Cleaning of the focusing lens
① Use tools: clean cotton swabs, isopropyl alcohol, and fill with dry and pure compressed air.
② Spray isopropyl alcohol onto the dust-free swab.
③ Gently pinch the side edge of the lens with your left thumb and index finger.
④ Hold the dust-free swab in the right hand, and gently wipe from bottom to top or from left to right in a single direction.
Wipe the front and back sides of the lens, and blow the surface of the lens with filled dry and pure compressed air to make sure
Confirm that there is no foreign matter on the lens surface after cleaning.
⑤ The cleaned focusing lens must be installed in the focusing lens holder and inserted into the cutting head as soon as possible.
Maintenance and replacement of cutting protection glasses
Removal of protective mirror
When the protective lens is attached to impurities or foreign objects, the protective lens will be damaged due to the absorption of laser heat by the impurities or foreign objects. Therefore, the protective lens needs to be cleaned regularly. Recommended cleaning cycle: one week. At the same time, the protective lens is a wearing part and needs to be replaced in time after damage.
Loosen the hand screw, then grab the hand screw with both hands and slowly and smoothly pull out the protective lens holder and move it to a clean and dust-free environment.
Cleaning of the protective mirror
① Use tools: clean cotton swabs, isopropyl alcohol, and fill with dry and pure compressed air.
② Spray isopropyl alcohol onto the dust-free swab.
③ Gently pinch the side edge of the lens with your left thumb and index finger.
④ Hold the dust-free swab in the right hand, and gently wipe from bottom to top or from left to right in a single direction.
Clean the front and back sides of the lens, and blow the surface of the lens with canned dry and pure compressed air to make sure
Confirm that there is no foreign matter on the lens surface after cleaning.
⑤ The cleaned protective lens must be installed in the protective lens holder as soon as possible and inserted into the cutting head.
