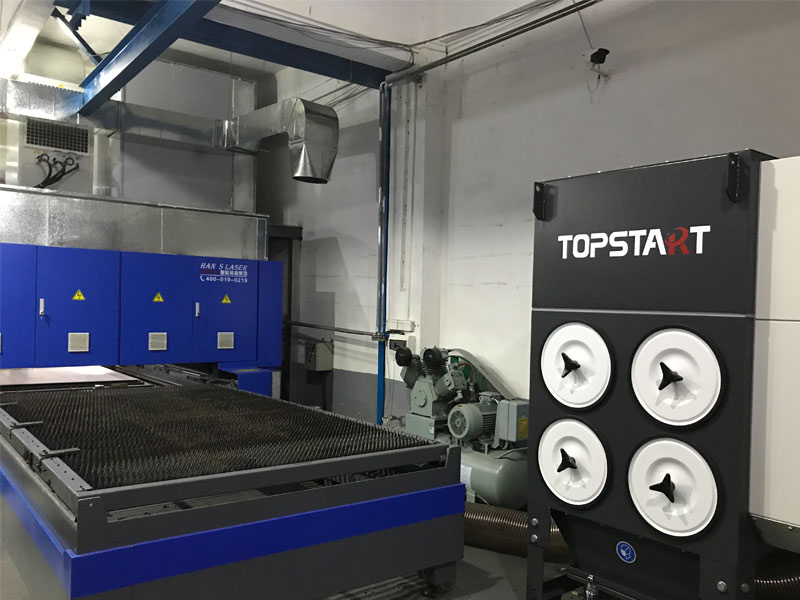

Laser cutting supporting dust removal and purification equipment
Laser cutting, a hot way in the field of sheet metal cutting, is widely praised for its strong power, fast operation speed, high cutting accuracy and perfect kerf. At the same time, the demand for laser cutting supporting dust removal equipment is also increasing, including such a laser cutting machine dust collector, while quickly filling the demand for laser cutting workshop dust removal, but also to harvest a wide range of praise!
If you look at the working principle of the laser cutting machine dust collector, you can understand why it is widely sought after!
1. After the dust collector is opened, the induced draft fan starts and the dust collector begins to work.
2. The smoke and dust produced by the laser cutting, under the power of the induced draft fan, enters the dust collector inlet. It is worth noting that this laser cutting dust collector is equipped with high efficiency ventilation fan, with large air volume and high negative pressure, which can achieve strong dust absorption, so that the workshop fumes cannot escape!
3. After the air inlet, the spark fumes first enter the spark catcher, and the sparks are automatically extinguished after many collisions and fall into the ash hopper.
4. Immediately after entering the surface of the cartridge, due to the sudden expansion of the airflow cross-section and the role of the airflow distribution plate, the wind speed plummets, and some of the coarse particles in the airflow collide with each other under the action of wind power and inertia force and settle naturally to the bottom of the dust collection hopper; the dust particles with fine particle size and small density are intercepted by the combined effect of diffusion and sieving, and are deposited on the outer surface of the cartridge filter material. As this laser cutting dust collector is made of high quality nano flame retardant filter material, it provides superb performance while guaranteeing safety, and can make the fume and dust purification efficiency reach 99%.
5. The filtered clean gas penetrates the filter media and is discharged centrally from the inner wall of the filter cartridge into the clean room.
6. The air in the clean room is then pumped out through the fan for discharge.
7. And the soot pollutants that are retained during filtration are covered on the surface of the filter media and gradually accumulated. Another highlight of this laser cutting dust collector is the automatic pulse blowback dust cleaning system, which can open the compressed air to automatically blow dust on the filter cartridge, effectively extending the service life of the filter cartridge, ensuring the efficiency of the dust collector, and making the manual cleaning and maintenance costs of the equipment greatly reduced!
In addition to the above-mentioned advantages of high dust collection efficiency, good purification effect and easy cleaning, this equipment is also very easy to install and use in the workshop because of its compact structure and small footprint; and it should be able to customize the design and development for some special working conditions of the workshop, so as to better meet the dust removal needs of the laser cutting workshop!
