Main accessories and advantages of laser marking machine
1. High definition: the resolution is 1 micron, which is more than 10 times that of traditional products
2. Less power consumption: 1/25 ~ 1/10 of traditional products
3. Fast speed: more than 3 to 5 times that of traditional products
4. Stability: unmatched by similar products
5. Long service life: It is more than 10 times the mark of traditional products.
The fiber laser marking machine looks small, but the structure inside is delicate and complicated. The main accessories are the following 11:

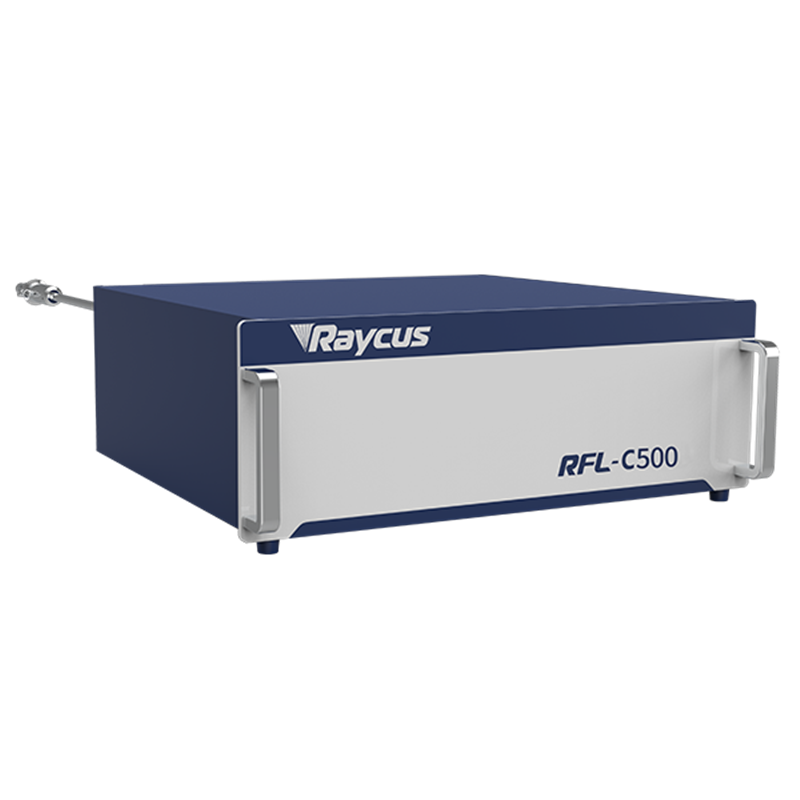

1. Fiber laser: that is, the component that generates the laser, and it is also the core part of the entire fiber marking machine.
2. Galvanometer: The galvanometer of the optical fiber marking machine is generally a digital galvanometer with a 10mm spot. Now most of the galvanometers used in the optical fiber marking machine are digital galvanometers.
3. Field lens: also called flat field focusing lens, scanning lens, F-theta mirror. It is mainly used to focus the light from the galvanometer on a plane. When purchasing, pay attention to indicating the marking range, determine according to your own needs, and do not blindly seek large.
4. Beam combiner: Also called combiner. The role of the beam combiner: used to indicate the light path. Because the 1064nm laser is invisible, in the actual marking process, we often need to know where the laser focus is, so as to determine whether the marking position is correct.
5. Marking card: also called laser control card, laser marking card. It is used to convert the text patterns we draw in the computer into analog signals or digital signals, and then transmit them to the galvanometer.
6. Red light indicator: also called red light pen, used to indicate the optical path, because the 1064nm laser is invisible, while the 650nm light of the red light indicator is visible. The light of the 650nm coincides, so where the 650nm light indicates, the 1064nm light is there, so as to achieve the function of indicating the light path. The red light pen is installed in the red light beam combining frame.
7. Fiber laser power supply: As the name suggests, it supplies power to the fiber laser.
8. Industrial computer: ordinary computers can also be used. For the optical fiber marking machine, because its marking card is a USB marking card, then this computer can also use a laptop computer, which is also the optical fiber marking machine can be made into portable marking. One of the important reasons for the machine.
9. The main power control box: if it is a portable marking machine, it is generally not installed, but if it is made into a larger machine, it is still beneficial to install this.
10. Red light beam combiner frame: located in the optical path, used to install the beam combiner and red light indicator.
11. The back is the optical fiber marking machine cabinet: also called the laser marking machine cabinet and the laser control cabinet. If a marking machine is compared to a house, then the cabinet is the frame of the house, and all other accessory pairs are installed in this house.
