QILIN Handheld Wobble Welding Head

Views: 0     Author: Site Editor     Publish Time: 2023-09-25      Origin: Site

Inquire

facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
whatsapp sharing button
sharethis sharing button

BWT21-min

Product name: Double axis swinging handheld welding head (fish scale welding)

English name: Handheld Wobble Welding Head

Product model: BWT21


● Fiber interface type: QBH/RD can be matched with various fiber lasers.

The swinging pattern can set filling modes for points, lines, circles, ellipses, triangles, octaves, semicircles, and circles, achieving multi-functional welding.

Double protective lenses, pull-out collimation and focusing, easy to replace protective lenses.

Good sealing can significantly improve product life.

High quality optical lenses, capable of carrying 2000W of power.

Scientific cooling system design can effectively control the working temperature of the product.

Fish scale welding, with a welding width of up to 14MM.

Can support 2.0 double wire feeding welding

The process package has storage and call functions.


BWT20C-min-1

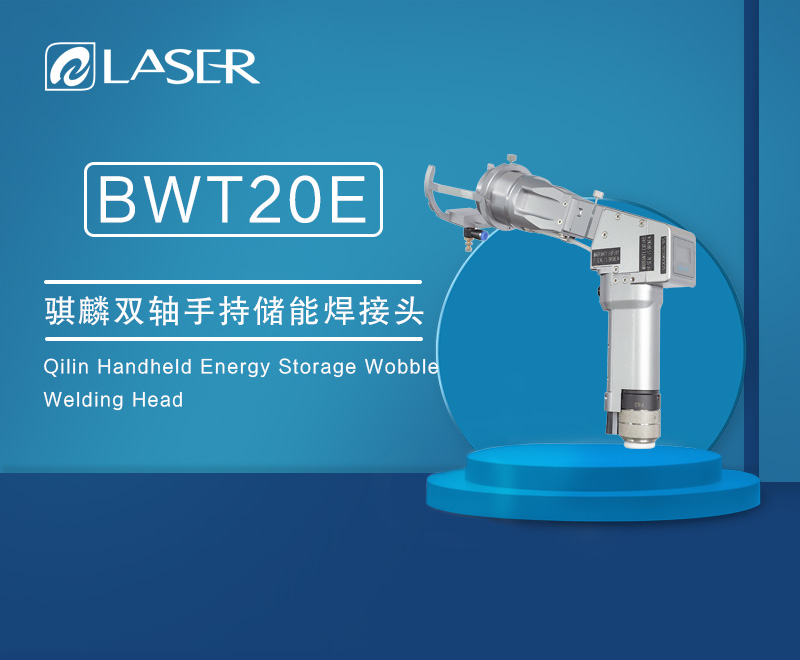

Product name: Double pendulum handheld energy storage welding head

English name: Handheld Energy Storage Wobble Welding Head

Product model: BWT20E

Fiber optic interface type; QBH/RD can be matched with various fiber lasers.

The swinging pattern can be set in circular, filling, and rectangular modes to achieve multi-functional welding.

Modular design allows for easy and fast assembly, optimized optical design, water cooling, dual sealing, more durability, and stability.

High energy storage welding efficiency, time-saving, strong anti-interference, safe and stable.

The pull-out drawer makes lens replacement easy, and the lens can carry a power of 2000W.

Suitable for industrial welding such as new energy welding, battery welding, condenser tubes, etc.


BWT20C-min-1

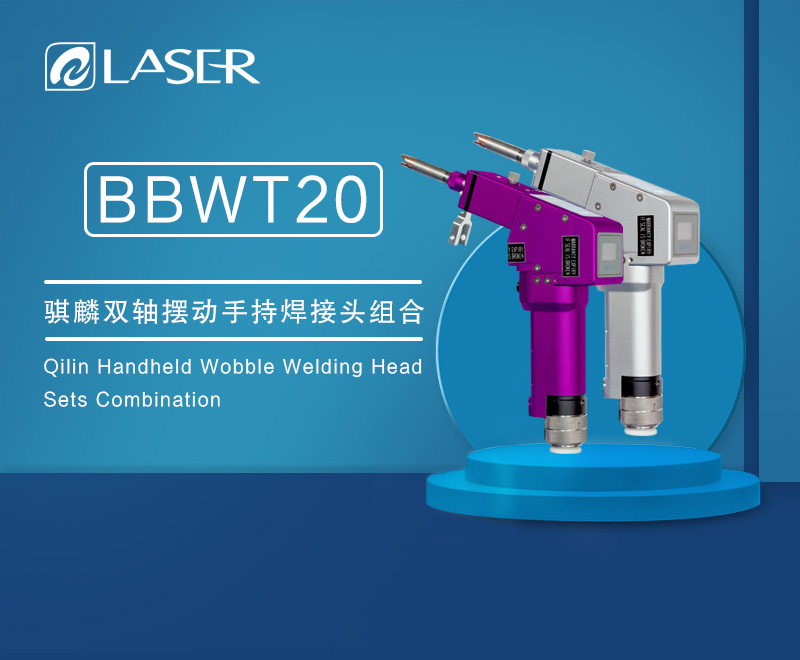

Dual axis swinging handheld welding head combination

Product model: BBWT20


BWT20C-min-1

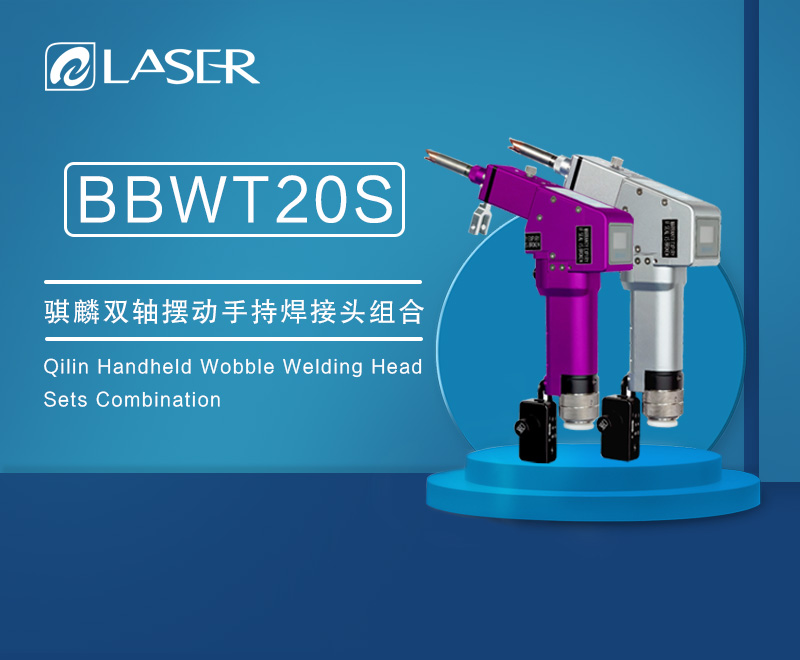

Dual axis swing welding handheld joint combination

Product model: BBWT20S


BWT21-min

Dual axis swinging handheld welding head

Product model: BWT20



BWT21-min

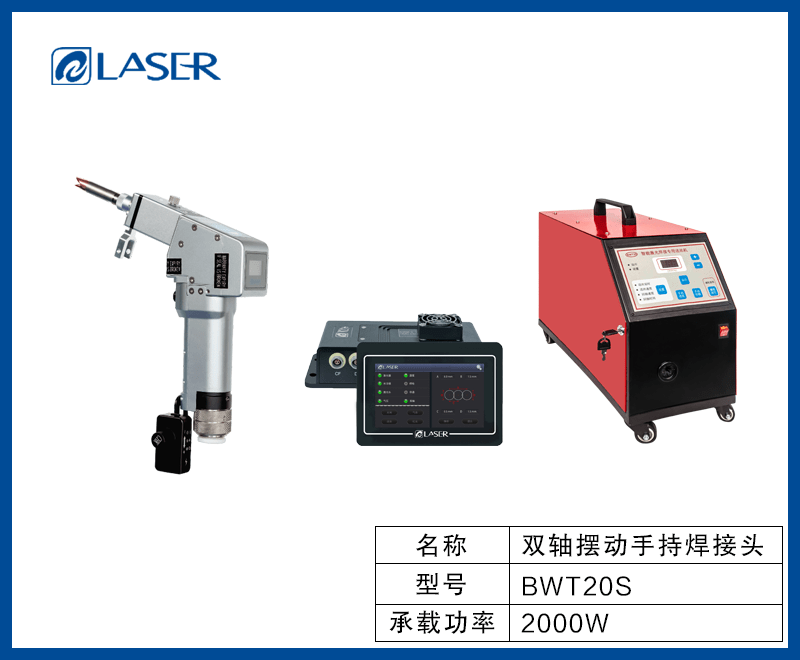

Dual axis swinging handheld welding head

Product model: BWT20S



单轴摆动焊接头+单轴清洗枪-DDWT20C

Dual axis swinging handheld welding head

Product model: BWT16S



BWT20C-min-1

Dual axis swinging handheld welding gun

Product model: BWT15
