Wuhan Raycus Continuous-Wave Fiber Laser User Guide RFL-C4000S


Wuhan Raycus Continuous-Wave Fiber Laser User Guide RFL-C4000S.pdf

RFL-C4000(CW laser)

Product Description

Features

Compared with traditional lasers, Raycus CW fiber laser has higher efficiency

electric-optical conversion, lower power consumption and excellent beam quality. The fiber laser

is compact and ready to use. It can be used as a stand-alone unit or easily inserted into user’s

apparatus.

Main Features:

- Excellent beam quality

-High quality fiber output

- High Power Stability

-Continuously tunable output power, quick switching response

-Maintenance free operation

- High wall plug efficiency

-Convenient control interface

-Slow rise and slow fall, Waveform editing

Applications:

-Cutting, Welding

- 3D Printing

-Scientific research


Model Configuration

The series of Raycus continuous-wave fiber laser include1500W and 2000W, and the model

designation codes are illustrated in the following table:

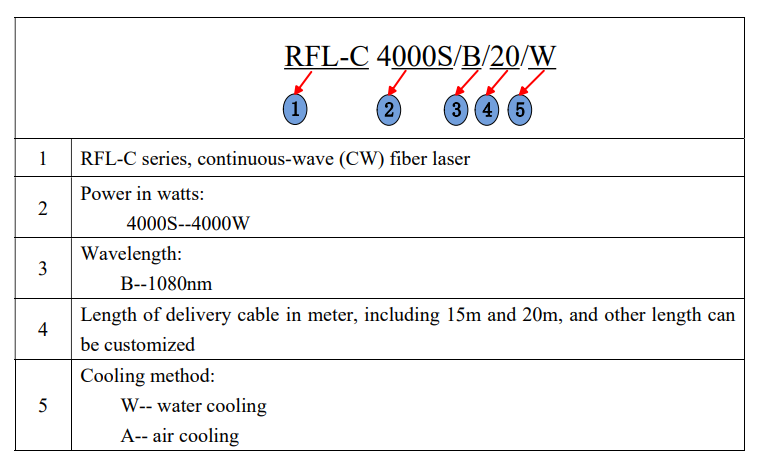

Table 2 Model Names and Designation Codes

U6%0QOVLUY0IIXEBS

Operation Environment

The basic operation conditions are listed in the table below:

Table 3 Basic Operation Conditions for the Laser

Model:RFL-C4000S

Supply Voltage(V):380±10%V AC 50/60Hz

Supply Capacity(kW):13.6

Installation Requirements:Install on flat surface, no vibration or impact

Ambient Temperature(℃):10~40

Relative Humidity(%):30~70

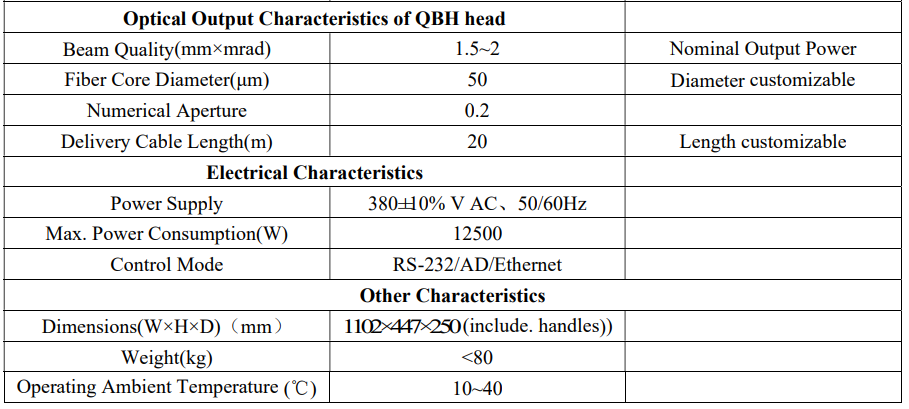

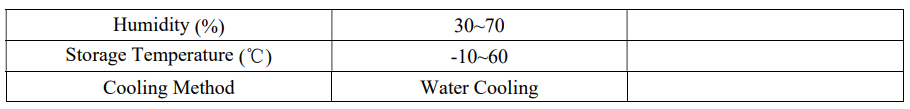

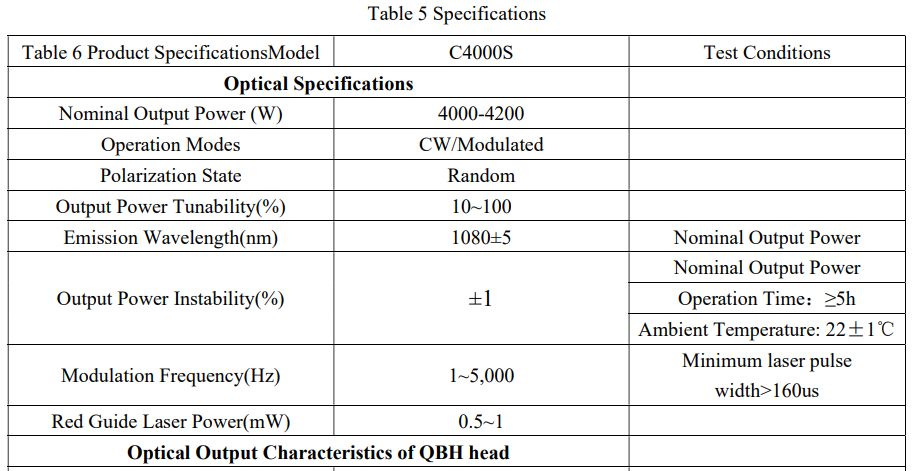

Specifications

12

3
