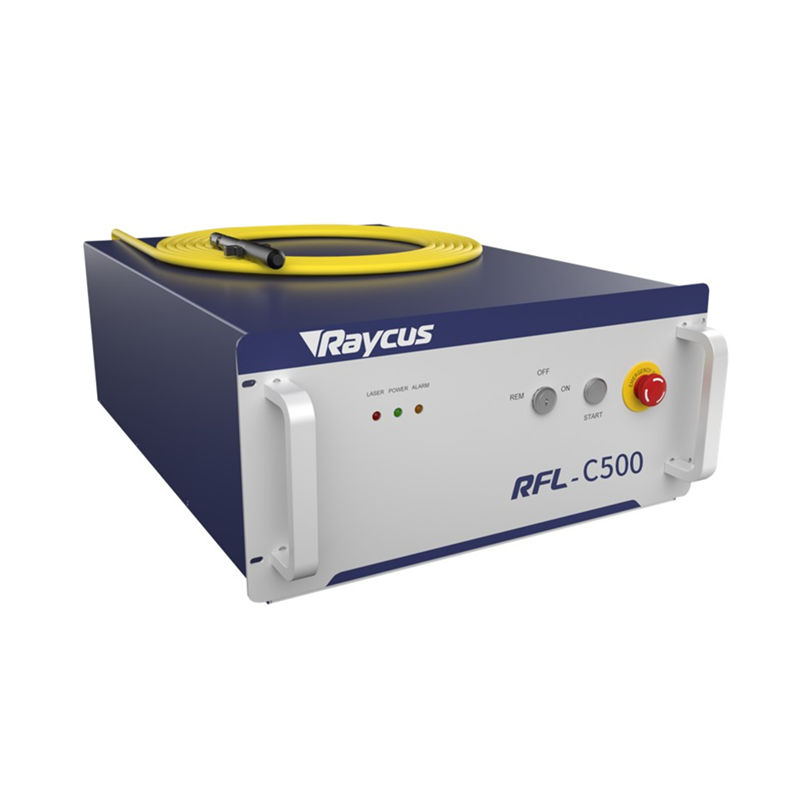

Compared with traditional lasers, Raycus CW fiber laser has higher efficiency electric-optical conversion, lower power consumption and excellent beam quality. The fiber laser is compact and ready to use. It can be used as a stand-alone unit or easily inserted into user’s apparatus.
Main Features:
-Excellent beam quality
-High quality fiber output
-High Power Stability
-Output power continuously adjustable, fast switching response
-Maintenance free operation
-High efficiency of electric-optical conversion
-Convenient control interface
-Fast modulation
Applications:
-Cutting, Welding
-3D Printing
-Scientific research
Model Configuration
The series of Raycus continuous wave fiber laser include 100W, 200W, 300W, 400W, 500W, 600W, 700W, 750W, 1000W, and the model designation codes are illustrated in the following table:
1.RFL-C series, continuous wave (CW) fiber laser
2.Power in watts, there have 100, 200L, 200, 300L, 300, 500, 750, 1000, 1500S and 2000S, which indicate respectively as 100W, 170W, 200W, 250W, 300W, 500W, 750W, 1000W
3.Wavelength, ‘B’ indicates the wavelength is 1080nm, and the wavelength of all the models in the series is 1080nm
4.Length of delivery cable in meter, including 15m and 20m, and other length can be customized
5.Cooling method, ‘W’ indicates water cooling, ‘A’ indicates air cooling
Note: No air conditioner in this laser series except the RFL-C1500S/C2000S.
