2000W/4000W Laser Power Auto focus Cutting Head LC20S / LC208 for laser cutting machine

Auto focus Cutting Head

LC20S / LC208


Availability:
Quantity:
Inquire Add to Basket

  • LC20S / LC208

  • Ospri

Product Description

Auto focus Cutting Head

Auto focus Cutting Head

LC20S / LC208

Laser Power

2000W/4000W

  • High speed of auto focusing by collimation with servo motor.

  • Water cooling for all optics and cavity of cutting head.

  • Dust-proof design with three protection windows.

  • Suits for QBH、QD Connector.

  • Modular catridges of lenses are convenient for maintenance.


    Product parameters:


    Focus Length 125mm/150mm/200mm
    Collimation Length 75mm/100mm
    Focusing Range -12mm~+10mm
    Focusing Speed 150mm/s
    Auxiliary Gas ≤2.5Mpa
    Weight 4.4KG

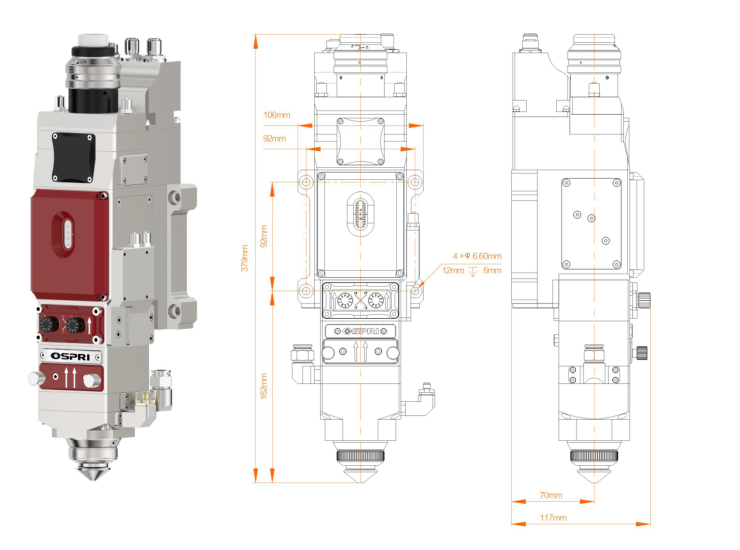

    Auto focus Cutting Head LC20S
