STR-HW450
8515809090
An air-cooled laser welding machine is a type of welding equipment that utilizes laser technology for joining materials together. Unlike some other laser welding machines that require water or other liquid cooling systems to maintain optimal operating temperatures, air-cooled models use airflow to dissipate heat generated during the welding process.
Portability: Air-cooled laser welding machines are often more compact and lightweight compared to liquid-cooled counterparts, making them easier to transport and set up in different work environments.
Simplified Maintenance: With no need for liquid cooling systems, air-cooled machines generally have simpler maintenance requirements, reducing downtime and operational costs.
Efficiency: Air-cooled laser welding machines can be more energy-efficient since they do not require additional energy to power liquid cooling systems or chillers.
Versatility: These machines can be used for a wide range of welding applications, including joining various metals and alloys with high precision and minimal heat-affected zones.
Ease of Use: Air-cooled laser welding machines are often user-friendly, with intuitive interfaces and controls, allowing operators to quickly set up and perform welding tasks with minimal training.
Safety: By eliminating the need for liquid cooling systems, air-cooled machines may reduce the risk of leaks or spills, enhancing workplace safety.
Laser power | Aluminum | Stainless steel | Galvanized sheet | Carbon steel |
900watt | 3mm | 4mm | 4mm | 4mm |
1200watt | 4mm | 5mm | 5mm | 5mm |
1500watt | 5mm | 6mm | 6mm | 6mm |

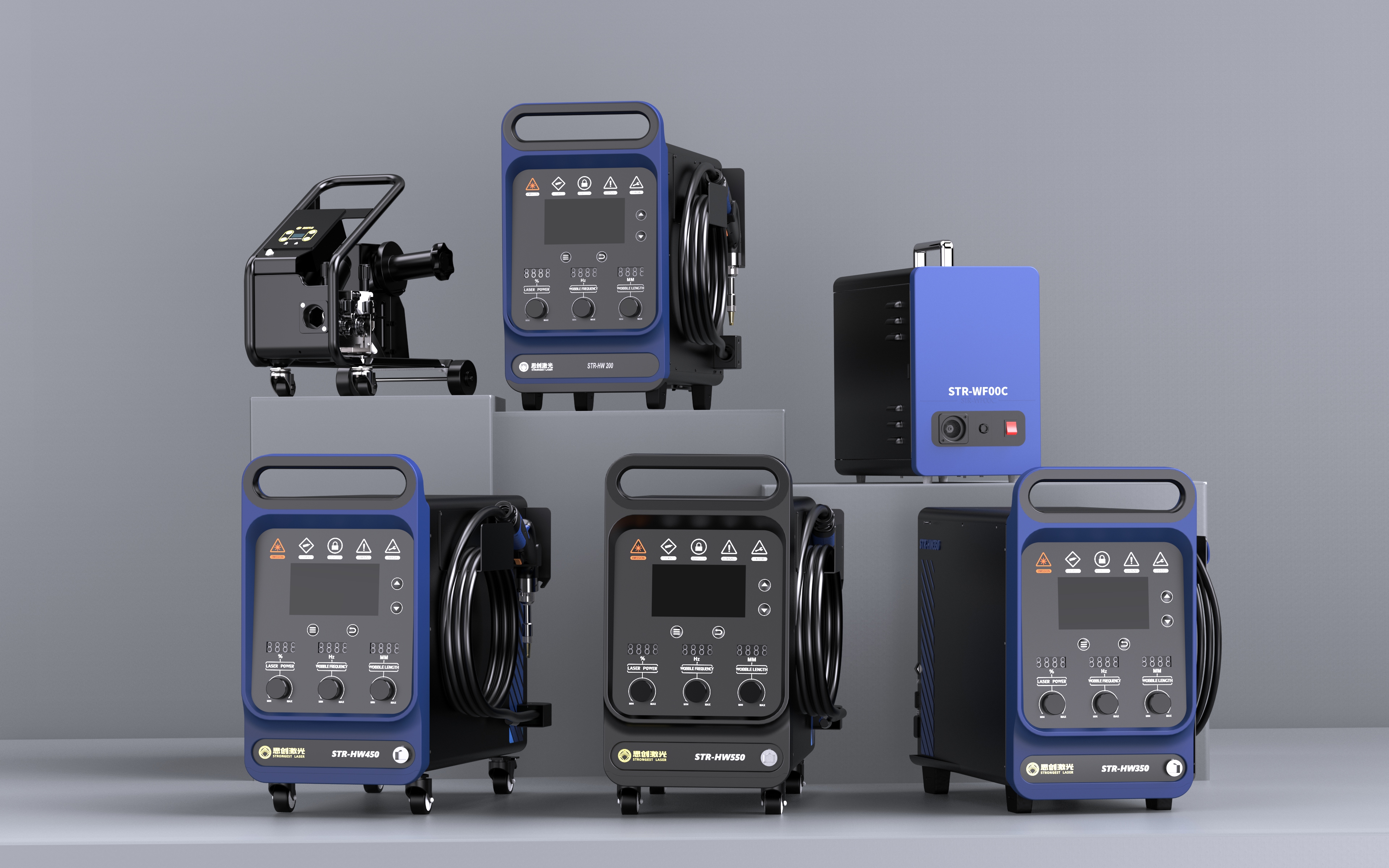

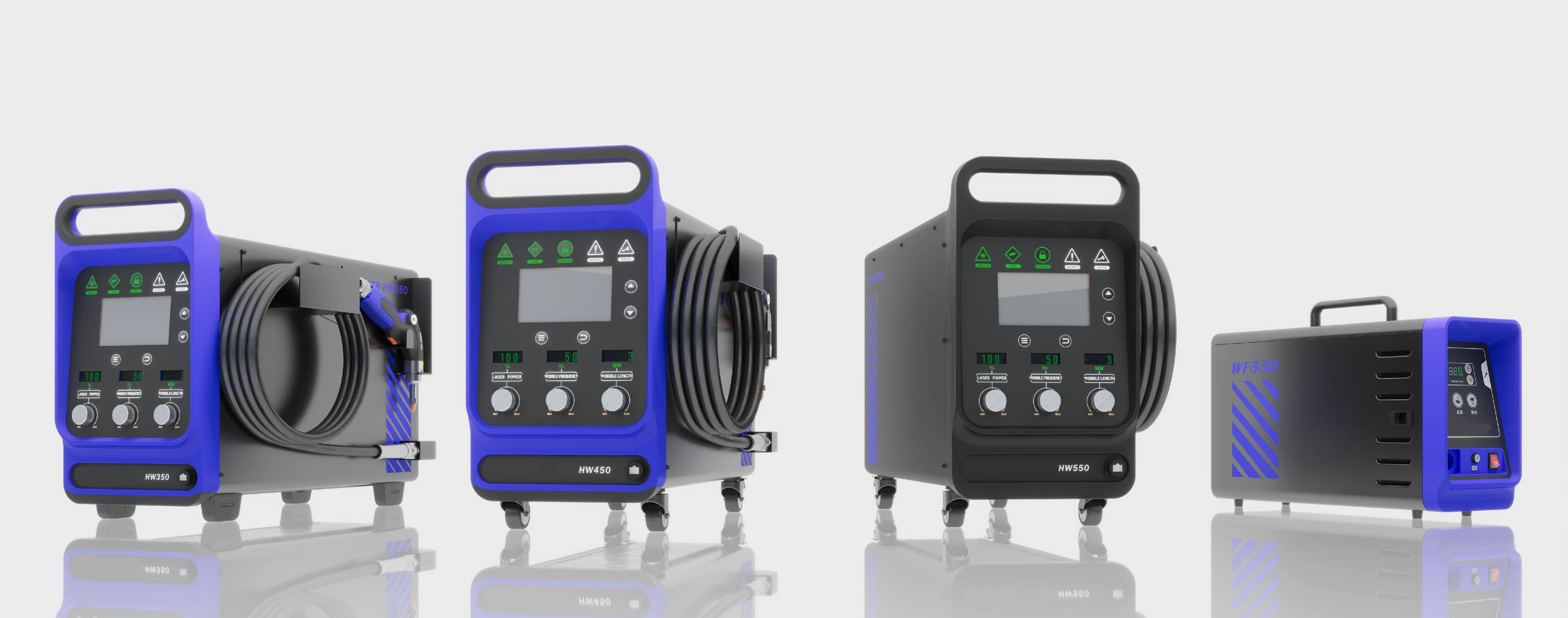

Handheld laser welding machine with air cooling is a portable device designed for joining materials using laser technology, with a built-in air cooling system to regulate temperature during operation.
Portability: Being handheld, this welding machine offers excellent maneuverability, allowing operators to reach and weld in tight spaces or positions that are difficult to access with larger welding equipment.
Flexibility: The handheld design allows for greater flexibility in welding various types of materials and components, including complex shapes and contours.
Ease of Use: Operators can easily control the welding process with a handheld device, adjusting the position and angle as needed for precise welding results.
Air Cooling: The built-in air cooling system helps dissipate heat generated during the welding process, ensuring consistent performance and preventing overheating of the equipment. This eliminates the need for external cooling systems, making the machine more compact and easier to transport.
Versatility: Handheld laser welding machines with air cooling can be used for a wide range of applications across different industries, including automotive, aerospace, electronics, and jewelry making.
High Precision: Laser welding offers high precision and accuracy, resulting in clean and precise welds with minimal distortion or damage to the surrounding material.
Safety: Air-cooled systems are generally safer to operate compared to liquid-cooled systems, as there is no risk of leaks or spills that could pose safety hazards in the workplace.
Project | Unit | HW-350 | HW-450 | HW-550 |
Rated input power | / | Single-phase 220v | Single-phase 220v | Single-phase 220v |
Input power frequency | Hz | 50/60 | 50/60 | 50/60 |
Laser power | W | 900 | 1200 | 1500 |
Peak power | W | 1500 | 2000 | 2500 |
Rated input power | W | 3800 | 4200 | 5400 |
Welding speed | cm/min. | 20 ~ 80 | 20 ~ 80 | 20 ~ 80 |
Cooling method | / | Air cooling | Air cooling | Air cooling |
Working temperature | ℃ | -20 ~ 60 | -20 ~ 60 | -20 ~ 60 |
Storage temperature | ℃ | -30 ~ 70 | -30 ~ 70 | -30 ~ 70 |
Working humidity | % | 0 ~ 90 | 0 ~ 90 | 0 ~ 90 |

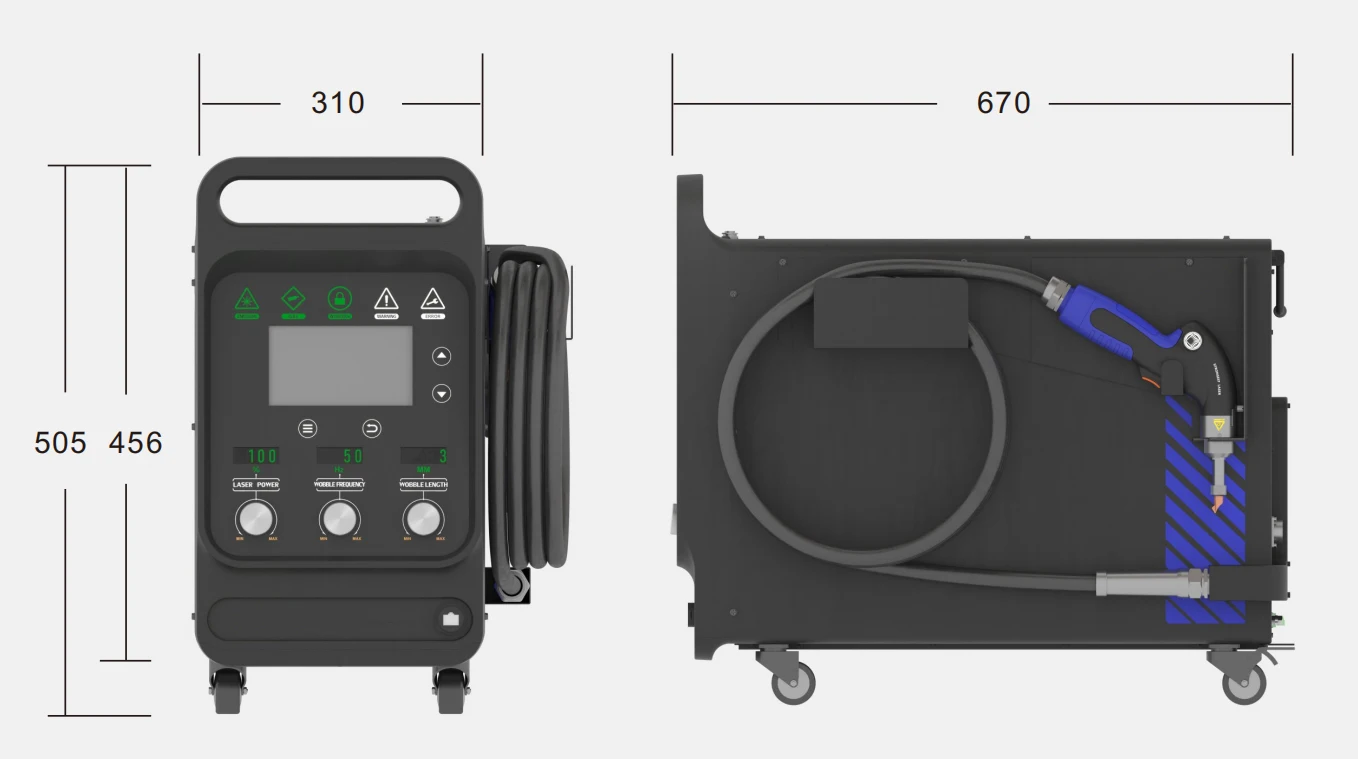

Product size | mm | 670×480×310 | 670×505×310 | 670×505×310 |
Product weight | kg | 43 | 43 | 45 |
Applicable wire diameter | mm | 0.8/1/1.2/1.4/1.6 | ||
Welding mode | / | Spot welding/continuous spot welding/pulse welding/continuous welding |

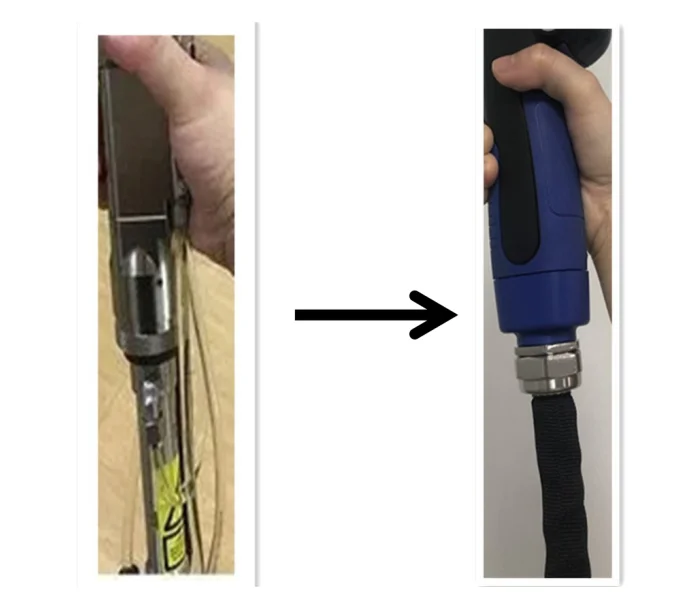

The integrated welding torch eliminates the QCS/QBH head from the design, is fully enclosed and has no interface, and the laser light path directly enters the welding torch, which not only improves the laser transmission efficiency, but also effectively reduces the failure probability.

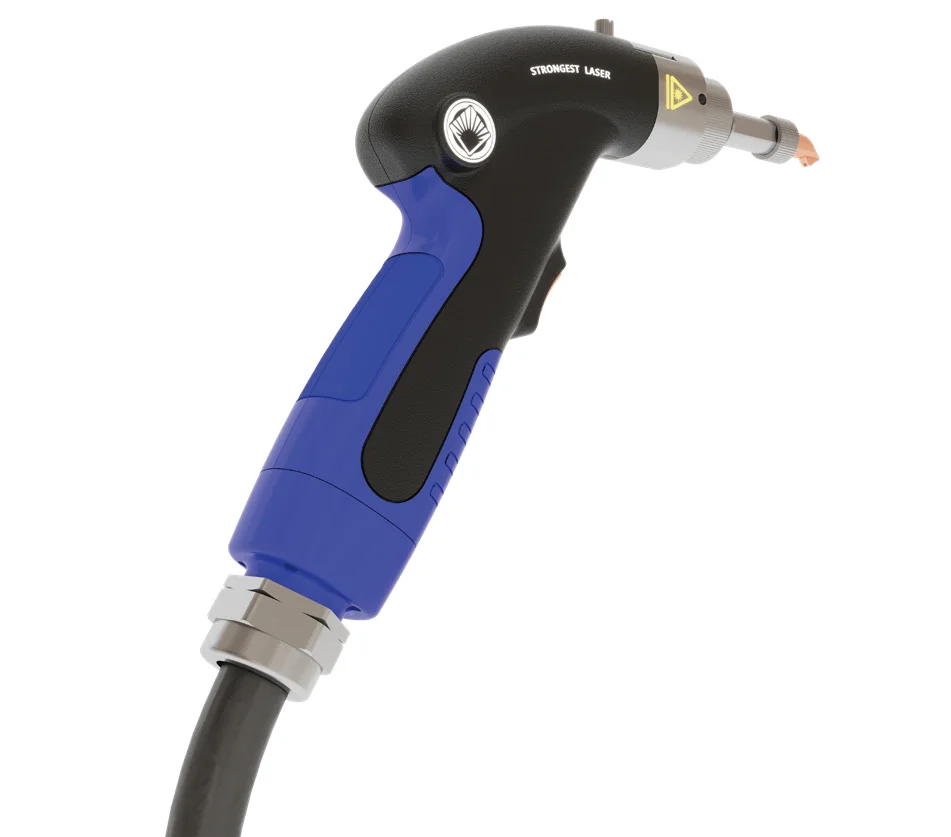

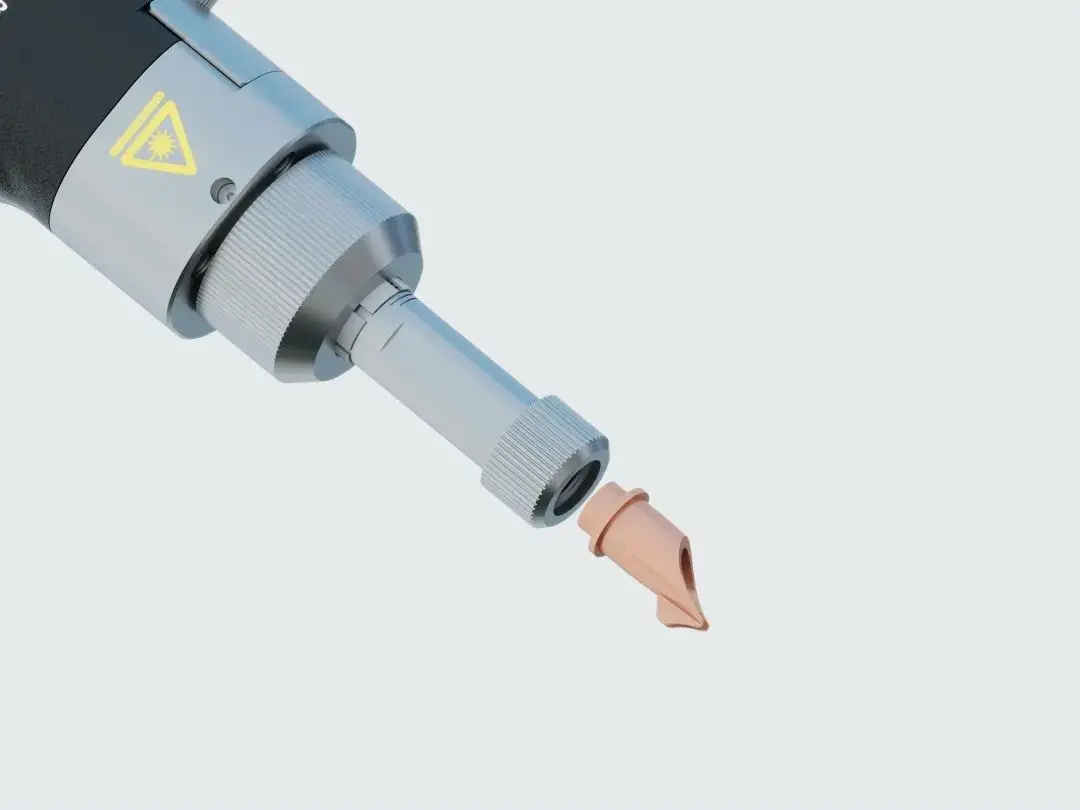

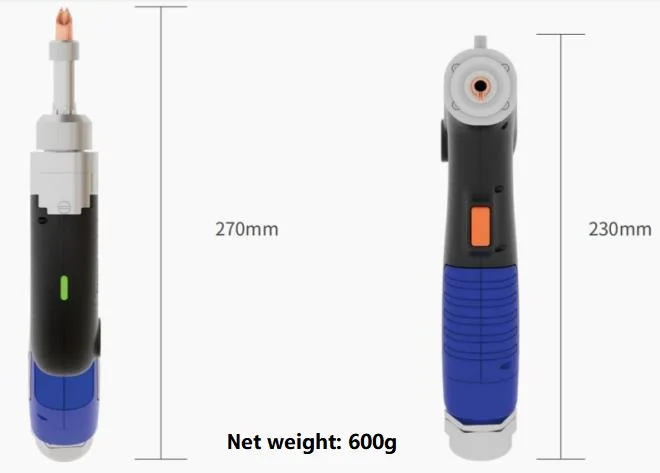

Laser welding gun is a tool used in laser welding processes. It typically consists of a hand-held device that emits a laser beam, which is used to melt and join materials together. The gun usually contains the necessary optics and controls to focus and direct the laser beam precisely onto the welding area.
Laser welding guns are used in various industries for joining metal parts with high precision and efficiency. They offer several advantages over traditional welding methods, such as minimal heat input, precise control over the welding process, and the ability to weld materials that are difficult to join using conventional methods. Additionally, laser welding guns can be automated for use in manufacturing processes, increasing productivity and consistency.
Installing a wire feeder for laser welding typically involves several steps to ensure proper functioning and safety. Here's a general guide for installing a wire feeder for laser welding:
Select the Wire Feeder: Choose a wire feeder that is compatible with your laser welding system and meets the requirements of your welding application.
Prepare the Work Area: Ensure that the work area is clean, well-lit, and free from obstructions. This will provide a safe and efficient environment for the installation process.
Power Off: Before beginning the installation process, make sure to power off the laser welding system and any associated equipment to prevent accidents or damage.
Positioning: Position the wire feeder in a suitable location near the laser welding system. Ensure that it is securely mounted and aligned with the welding torch.
Connect Power: Follow the manufacturer's instructions to connect the power supply to the wire feeder. Use appropriate electrical connections and ensure that the power source matches the specifications of the wire feeder.
Connect Control Cables: Connect any control cables between the wire feeder and the laser welding system. These cables may include communication cables or other control signals necessary for operation.
Install Wire Spool: Load the appropriate welding wire onto the wire feeder's wire spool holder. Make sure to use the correct type and size of welding wire for your application.
Adjust Tension: Adjust the wire tension settings on the wire feeder according to the manufacturer's recommendations. Proper tension is essential for smooth wire feeding and consistent weld quality.
Calibration: Follow any calibration procedures provided by the manufacturer to ensure accurate wire feeding and welding performance.
Test Run: Once the wire feeder is installed and calibrated, perform a test run to check for proper operation. Verify that the wire feeds smoothly and consistently and that all control functions are working correctly.
Safety Precautions: Before using the wire feeder for actual welding operations, review and adhere to all safety precautions outlined in the manufacturer's instructions and relevant safety guidelines.
Training: Ensure that operators are properly trained in the use of the wire feeder and associated equipment before performing any welding tasks.
