Air Cooling Portable Mini Fiber Laser Welding Solder Machine

Share to:

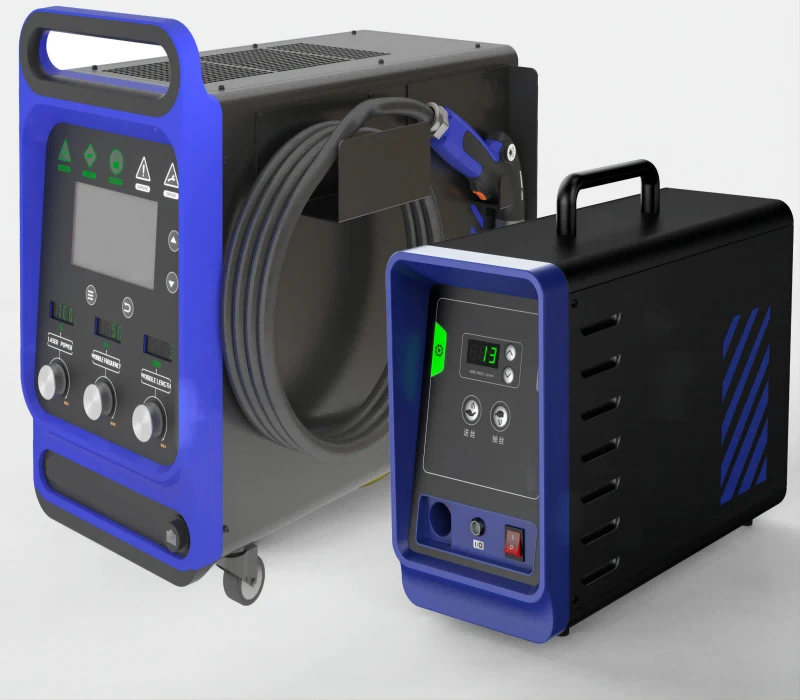

Air Cooling Portable Mini Fiber Laser Welding Solder Machine

Laser Welding Technology: The wind-cooled portable laser welding machine utilizes laser beams to join metal components. Laser welding involves locally heating the surface of the workpiece with a high-energy laser beam, causing it to melt and form a strong welded connection upon solidification. This welding technique is often more precise and introduces minimal heat-affected zones compared to traditional welding methods.

Portability: Designed for lightweight and easy transport, this laser welding machine enables operators to perform welding tasks at different locations. This portability is particularly valuable for applications that require welding repairs, on-site machining, or sample preparation in various settings.

Wind Cooling System: In contrast to traditional water-cooled laser devices, the wind-cooled portable laser welding machine features a simplified wind cooling system. The equipment incorporates powerful fans and heat dissipators internally to efficiently cool the laser and other crucial components. Such a design reduces maintenance complexity and enhances the suitability of the equipment for mobility and on-site usage.

Versatile Applications: The wind-cooled portable laser welding machine finds wide-ranging applications in industries such as manufacturing, automotive, electronics, aerospace, and more. It can be employed for welding different types of metals, thereby catering to diverse requirements across industries.

User-Friendly Operation: Typically equipped with a user-friendly interface and control system, this type of laser welding machine allows operators to easily configure welding parameters and monitor the welding process. This simplified operation enhances work efficiency and reduces training costs for operators.

MODEL:	HW-350 HW-450 HW-550
Availability:

Quantity:



Inquire Add to Basket

Model:
HW-350
Code:
8515809090

Product Description

43kg Air Cooling Portable Mini Fiber Laser Welding Solder Machine For Welding Metal Stainless Steel Aluminum

Portable Air Cooled Handheld Fiber Laser Welding Machine

The operating ambient temperature of conventional water-cooled handheld laser welders is 5°C~50°C, and the operating ambient temperature of conventional air-cooled handheld laser welders is -10°C~35°C.

This welder adopts a dual-circuit refrigerant direct cooling system, The operating temperature is -20°C~60°C with good environmental temperature adaptability.

1. 5m armored cable, handheld welding torch only 0.68kg;

2. The volume of the machine is less than 0.1 square meters. It is only about the size of an ordinary water heater and can be easily put into the trunk.

3. The operation covers an area of over 700 square meters, work for a long time without fatigue.

Air Cooled Handheld Laser Welding Thickness Reference Table

Laser power	Aluminum	Stainless steel	Galvanized sheet	Carbon steel
900watt	3mm	4mm	4mm	4mm
1200watt	4mm	5mm	5mm	5mm
1500watt	5mm	6mm	6mm	6mm

Project	Unit	HW-350	HW-450	HW-550
Rated input power	/	Single-phase 220v	Single-phase 220v	Single-phase 220v
Input power frequency	Hz	50/60	50/60	50/60
Laser power	W	900	1200	1500
Peak power	W	1500	2000	2500
Rated input power	W	3800	4200	5400
Welding speed	cm/min.	20 ~ 80	20 ~ 80	20 ~ 80
Cooling method	/	Air cooling	Air cooling	Air cooling
Working temperature	℃	-20 ~ 60	-20 ~ 60	-20 ~ 60
Storage temperature	℃	-30 ~ 70	-30 ~ 70	-30 ~ 70
Working humidity	%	0 ~ 90	0 ~ 90	0 ~ 90
Product size	mm	670×480×310	670×505×310	670×505×310
Product weight	kg	43	43	45
Applicable wire diameter	mm	0.8/1/1.2/1.4/1.6
Welding mode	/	Spot welding/continuous spot welding/pulse welding/continuous welding

The integrated welding torch eliminates the QCS/QBH head from the design, is fully enclosed and has no interface, and the laser light path directly enters the welding torch, which not only improves the laser transmission efficiency, but also effectively reduces the failure probability.

Ingeniously and rationally integrating four wire groups with different connections between the various parts in the traditional welding torch into an armored cable with a diameter of only 17mm (plus a protective cloth sheath size of 18.6mm), which greatly increases the welding torch Flexibility in operation.

The special nozzle closing design can accelerate the airflow instantly and effectively suppress the welding splash.

Wire Feeder Specifications

Eight Safety protection

1. Welding LOOP safety protectionThe device is equipped with a safety clip to avoid accidental light emission after lifting the gun.

2. Light warning protectionThere are obvious light indicators on the welding torch and equipment, and the warning is clearly known.

3. Barometric protectionThe equipment is equipped with air pressure protection, and the light is allowed to emit light when the external gas connection is normal.

4. Torch temperature protectionThe welding torch is designed to effectively avoid heat and prevent personal injury caused by high temperature.

5. Welding torch button mistakenly touching protectionThe design of the protective shell of the welding torch button prevents the welding torch from mistaking light due to misplacement.

6. Protective lens protectionEquipped with protective lens installation detection function, allowing light to be emitted when the protective lens is installed.

7. External interlocking protectionEquipped with an external safety interlock interface, which can be connected to external emergency stop, safety pedal and other devices. Convenient for factory and production lines safety control.

8. Emergency switchAn emergency switch is set on the top of the equipment, which is convenient to stop the equipment immediately when an accident occurs.

Hand-held laser welding machine can be widely used in kitchen cabinets, stair elevators, shelves, ovens, stainless steel door and window guardrails, distribution boxes, stainless steel home and other industries.

43kg Air Cooling Portable Mini Fiber Laser Welding Solder Machine Solder Machine For Welding Metal Stainless Steel Mini Fiber Laser Welding Solder Machine
