BOCI FSCUT8000 high power Laser cutting cypcut control EtherCAT system for 8KW Laser cutting machine

FSCUT8000 is EtherCAT bus system designed for ultra high power fiber laser above 8KW, featured by out of box service, easy to install and adjust, full solution functions. It supports customization, automation and informatization solutions, is the leading edge EtherCAT laser cutting control system on the market.
Availability:
Quantity:
  • FSCUT8000

  • BOCI

Product Description

BOCI FSCUT8000 high power Laser cutting cypcut control EtherCAT system for 8KW Laser cutting machine


FSCUT8000 high power system install guide.pdf

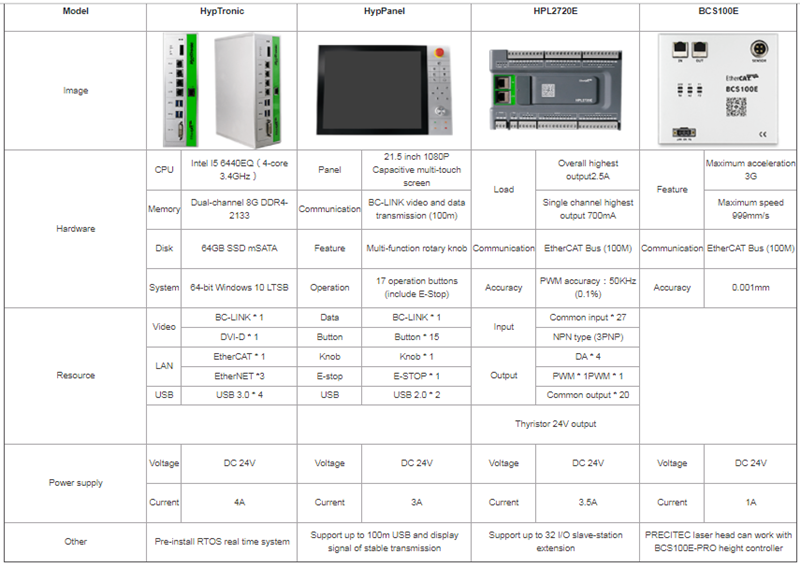

Technical Data:

EY)((ZUK2R3WQO1HVJ367H


Benefits

Function performance:
Technique: multiple piercing solutions for metal sheet of different thickness; piercing slags removal; vibration suppression; close-loop gas control; seperate layer technique for large, medium and small contour cutting, all to expand your machine production capability.
Vision remnant reuse: capture remnant sheet by your phone camera or machine camera to reuse the material with high efficiency.
Find edge: up to 500mm/s high speed with precision find sheet edge, also provie optional find edge patterns to meet your production needs.
File formats: support direct production of DXF and G code; support fast process of LXDS and NRP file generated by CypNest.
UI: easy operation with guided and visualized interface.
Automation: support coil feeding production, large format production, and sheet-tube combo cutting solutions.
Convenient maintenance: support focus correction, optical pollution check photo paper, and osciloscope monitor functions.
Digitalization: provide access with Laser Cloud and MES to collect machine status data and inform maintenance to prolong machine usage.

Assist functions: quick cut-off remnant sheet, auto clean nozzle, auto lubrication, pallet changer, dust extractor that add selling points to your machine.


Control performance:
BC-Link: self-developed BC-Link technology to realize long distance transmission of display, I/O and USB signals.
PID self-adjust: click to finish servo drive PID adjust, theoretical control accuracy within ±0.01mm.
Intelligent hardware: support ethercat proportational valve, laser and laser head to realize full-close loop control.
Secruity: torque protection to reduce impact, dual-drive positin error correction, barrier avoidance in travel, smart frog-leap lifting.
Accuracy: theoretical path accuracy ±0.005mm, positioning accuracy 0.01mm, repositioning accuracy 0.01mm.
Speed: maximum acceleration 5G, maximum single spindle speed 300m/min.
Communication: adopt RTOS real time solution, communication cycle 1ms.
Algorithm: adopt asymmetrical acceleration and deceleration algorithm, reduce machine impact and prolong machine service.
Height control: ethercat BCS100-E height control unit, provide robust performance in distance follow and control.


Application:

Fit for fiber laser cutting machine above 8000W. Widely used in metal sheet fabricating factory, automation line and large fabrication station.

FSCUT8000




Components:

HPL2720E HPL2720E
HPL2720E

Number:1

BCS100E Height control unit
BCS100E

Number:1

HypTronic HypTronic
HypTronic

Number:1

HypPanel HypPanel
HypPanel

Number:1

WKB-V6H Wireless hand-held remote
WKB-V6H

Number:1

BCL-AMP Preamplifier
BCL-AMP

Number:1

Accessories
HC-15/HC-20 4-pin cable
HC-15/HC-20

Number:1

SPC-140/SPC-180/140B/180B RF cable
SPC-140/SPC-180/140B/180B

Number:2

LAN-3X/LAN-0.3X/1X/7X/17X Network cable
LAN-3X/LAN-0.3X/1X/7X/17X

Number:8
