DRK12HWG
DAIRUIKE

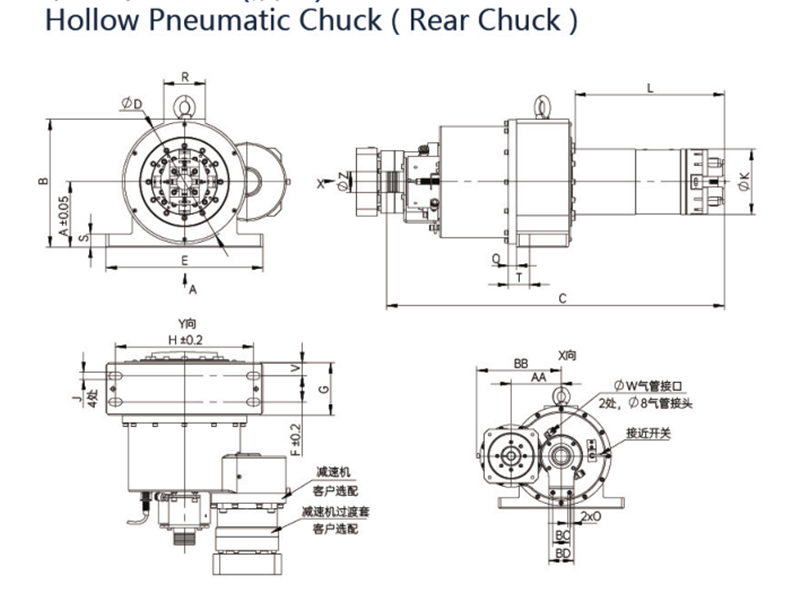

DRK12HWG Hollow pneumatic chuck rear chuck for fiber laser pipe cutting machine
A very important part of the pipe laser pipe cutting machine is the chuck. The maintenance of the chuck determines whether the round pipe laser pipe cutting machine can operate normally, whether the automatic steel pipe cutting machine can cut products with high precision, and whether the cut products have no flaws. Burr, can be used directly.
-Special-shaped tube clamping
Optional jaws to hold various profiles to keep the pipe fittings from slipping
- Small inertia
High-speed processing can be achieved to meet the fast cutting of small pipes
- less leftover
Maximum depth of matching front card
- Strong gripping force
The jaws adopt special friction surface, which has good clamping ability and does not slip the clamping pipe.
-High rigidity
Barrel structure design, high support rigidity, strong stability
