Mini Indusrial PC IBOX-101 Plus Fanless All in One PC Aluminum Structure with Intel Celeron J1900
An industrial PC is a computer intended for industrial purposes (production of goods and services), with a form factor between a nettop and a server rack. Industrial PCs have higher dependability and precision standards, and are generally more expensive than consumer electronics.
Indusrial PC IBOX-101 plus
Advantages Features:
Fanless Pure Aluminum；

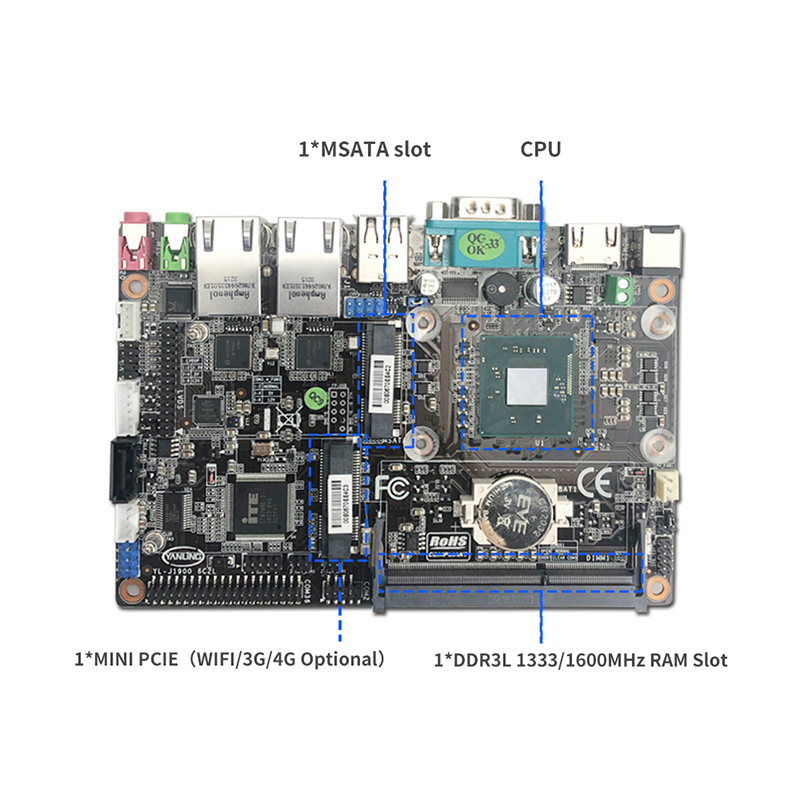

Support Intel Celeron J1900 quad core；
Max:DDR3L 8G；
Support 1*MSATA，1*2.5” SATA；
Support 1*Mini PCIE；
Support 6*COM（COM1、COM2，RS232/485 Optional）；
Applied OS：Windows 7/8/10, Linux
Specifications:
Model
| IBOX-101 plus |
Color
| Silver（any color can be customized） |
| Material | Pure Aluminum |
Processor | Onboard Intel Celeron J1900（Quad Core，1.99 GHz，TDP:10W） |
| Ram | Support 1*DDR3L 1333/1600MHz SODIMM，Max:8GB |
| Bios | AMI UEFI BIOS |
| Display Chip | Integrated Intel HD Graphics |
| Display port | 1*HDMI, 1*Internal LVDS socket (Support synchronous and asynchronous dual display) |
| Front I/O | 4*USB2.0，2*COM，1*Power Switch |
Rear I/O
| 1*USB3.0，1*USB2.0，4*COM（COM1, COM2, RS232/485 Optional）， 2*Intel i211-AT 1000M LAN，1*HDMI，1*DC12V，1*Mic，1*Line Out |
| Expansion slot | Support 1*MINI PCIE（Support MSATA） |
Support 1*MINI PCIE（WIFI/3G/4G Optional），Embedded Sim Slot |
Lan
| 2*Intel i211-AT 1000M Lan |
| Storage | Support 1*MSATA，1*2.5” SATA3.0 |
| Power supply | Support DC 12V Input |
| Work temp | -10℃ ～ +50℃ ( HDD)，-20℃ ～ +60℃ ( SSD) |
| Work humidity | 0% ～ 95% Non-condensing |

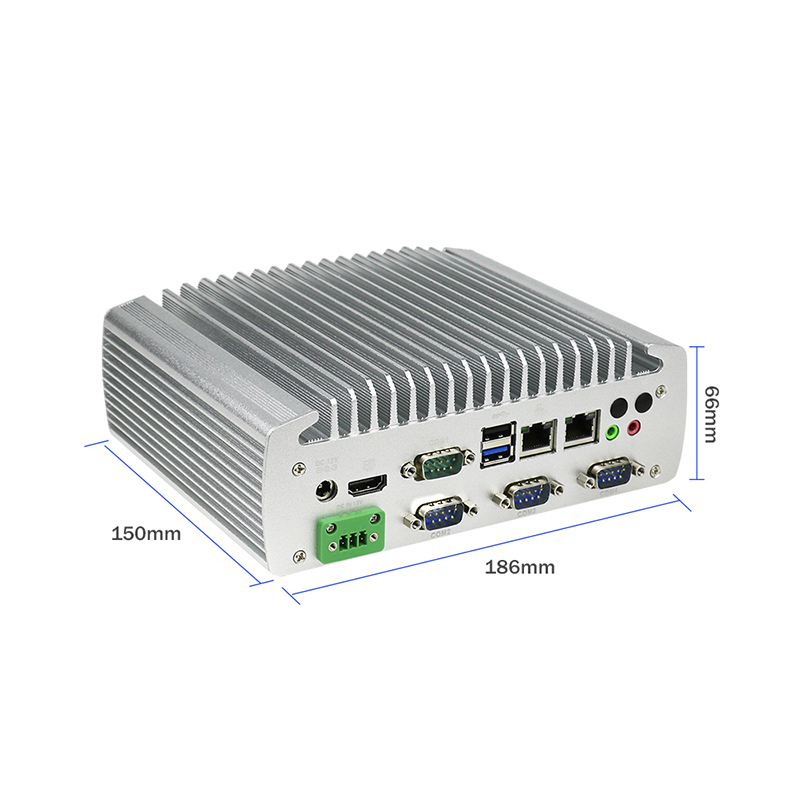

Dimension
| 186 * 150 * 66 mm【Not include wall bracket】 |
| Weight | 1.6kg |
Application: Automation, Medical, Transportation, Warehouse, Education etc ..
Accessory:
Item Name
| Quantity | Specs
|
| Power Adapter | 1 | 12V/5A |
| Power Cord | 1 | Any Plug is optional (Chinese, British, USA standard etc) |
| Mount Braket | 2 | |
| Driver CD | 1 | Neutral |
Order Information:
IBOX-101 Plus | Intel Celeron J1900 | Standard Port |
