IBOX-701 Plus i5 7200U
ibox

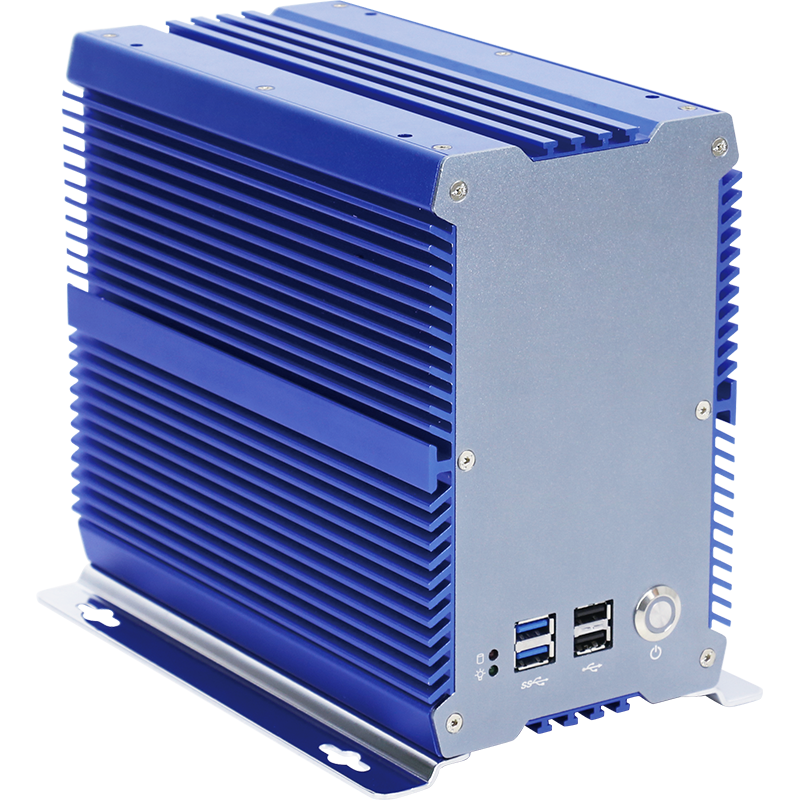

Indusrial PC IBOX-701 Plus Fanless All Aluminum Barebone (Standard Port, 1*PCIE 4X + 1*PCI) with I5 7200U+ 8GB DDR4+ 128GB SSD
An industrial PC is a computer intended for industrial purposes (production of goods and services), with a form factor between a nettop and a server rack. Industrial PCs have higher dependability and precision standards, and are generally more expensive than consumer electronics.
Indusrial PC IBOX-701 Plus
Advantages Features:
Fanless All Aluminum
Onboard Intel Celeron 3867U、Core i5 7200U
MAX: DDR4 16G Memory
Support 1*MSATA,Support 1*2.5" SATA
Support WIFI/3G/4G Module(choose one)
Support 6*COM(2 support RS232//422/485)
Support DC 9~36V wide voltage,power positive and negative reverse protection
Applied OS:Windows 7/8/10, Linux
Specifications:
Model | IBOX-701 Plus |
Color | Blue(other color can be customized) |
Material | Pure Aluminu |
Processor | Onboard Intel Celeron 3865U/3867U (dual core,2MB second cache,1.8 GHz) |
Onboard Intel Core i5 7200U(dual core,2.5GHZ,turbo boost 3.1GHZ,TDP: 15W) | |
Ram | Support 1*DDR4 1866/2133 Memory Slot,,Max:16GB |
Bios | PI AMI EFI BIOS |
Display Chip | Integrated Intel HD Graphics 620 |
Display port | 1*VGA(can exact another one HDMI port) |
Front I/O | 2*USB3.0,2*USB2.0,2* Indicator Led,1* Power Switch |

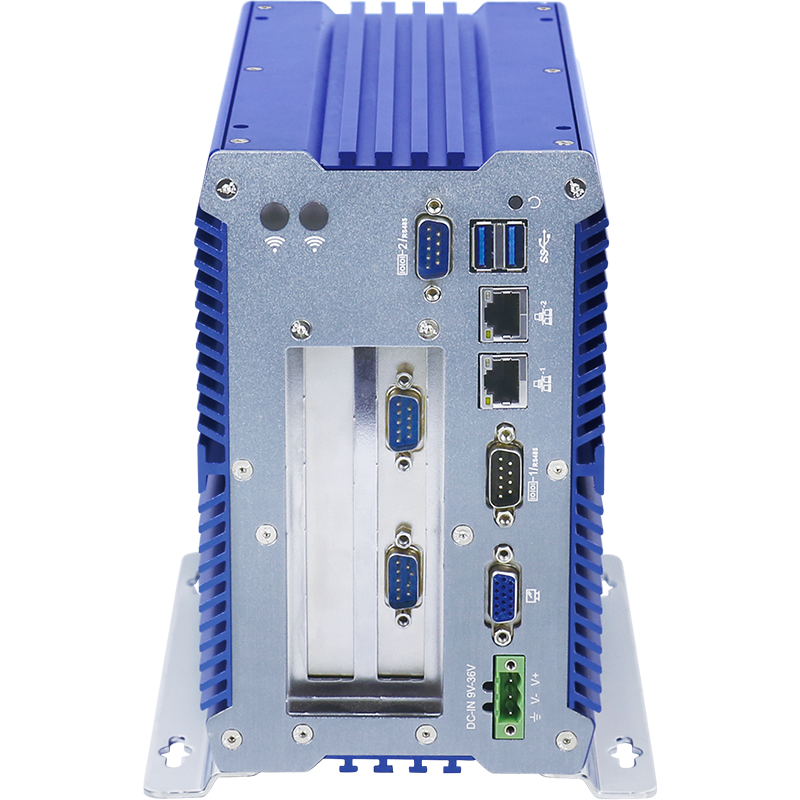

Rear I/O | 2*USB3.0,4*COM(2*COM Support RS232/422/485,Max 6*COM),2*Intel 1000M Lan, 1*VGA,1* phoenix power connector ,1*RS |
Expansion port | Support 1*MINI PCIE(WIFI/3G/4G Optional),Embedded SIM Slot |
Support 1*MINI PCIE(for MSATA | |
GPIO,PS/2,Audio,HDMI optional(Standard not include this) | |
Expansion slot | 1*PCIE 4X+1*PCI (32bit) OR 2*PCI (32bit) |
Lan | 2*Intel i211-AT 10/100/1000M Lan |
Storage | Onboard 1*2.5” SATA,1*MSATA |
Power supply | DC 9~36V |
Work temp | -10℃ ~ +50℃ |
Work humidity | 0% ~ 95% Non-condensing |
Dimension | 215 * 185 * 115 m |
Weight | 3.6 kg |

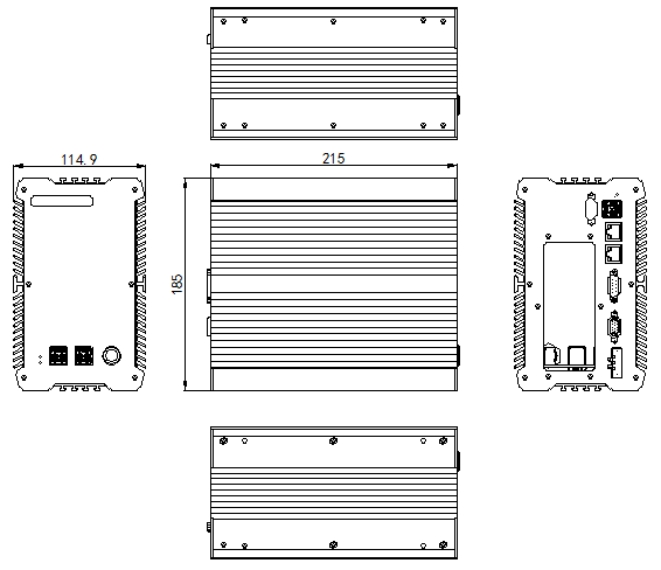

IBOX-701P Drawing:
Application: Automation, Medical, Transportation, Warehouse, Education etc ..
Accessory:
Item Name | Quantity | Specs |
Power Adapter | 1 | 12V/5A |
Power Cord | 1 | Any Plug is optional (Chinese, British, USA standard etc) |
Mount Braket | 2 | |
Driver CD | 1 | Neutral |
Order Information:
Configuration 1 | Intel Celeron 3867U | Standard Port, 1*PCIE 4X + 1*PCI |
Configuration 2 | Intel Celeron 3867U | Standard Port, 2*PCI |
Configuration 3 | Intel Core i5 7200U | Standard Port, 1*PCIE 4X + 1*PC |
Configuration 4 | Intel Core i5 7200U | Standard Port, 2*PCI |
