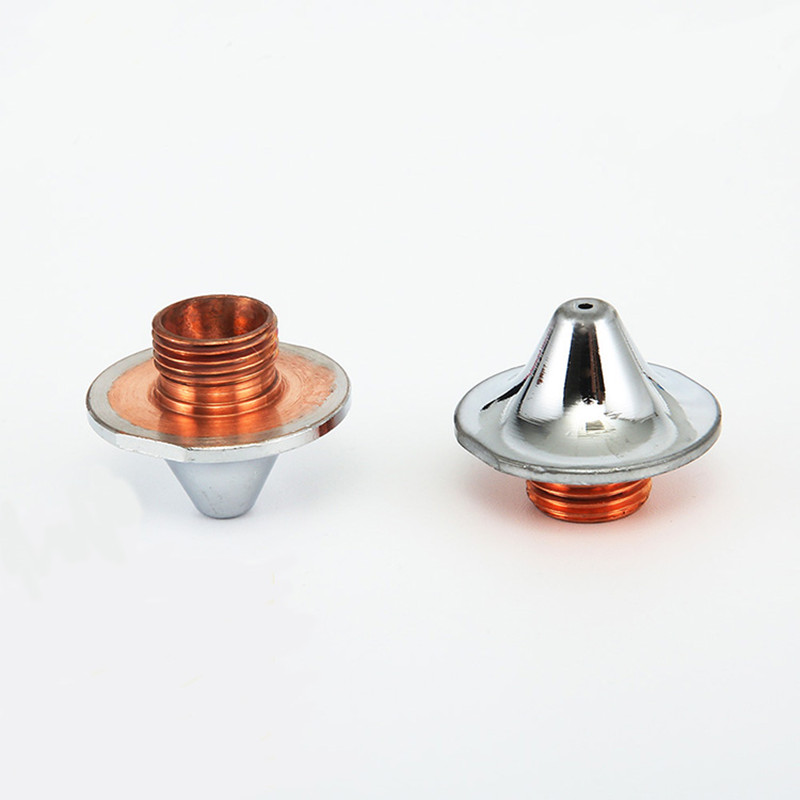

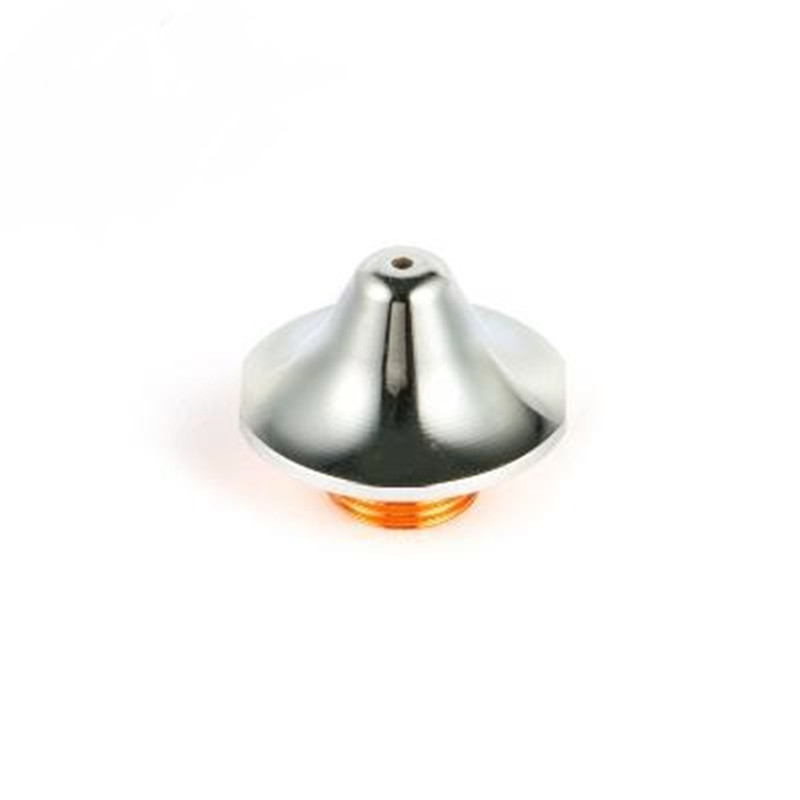

D25mm H20mm M12mm high speed laser cutting nozzle head nozzle laser machine

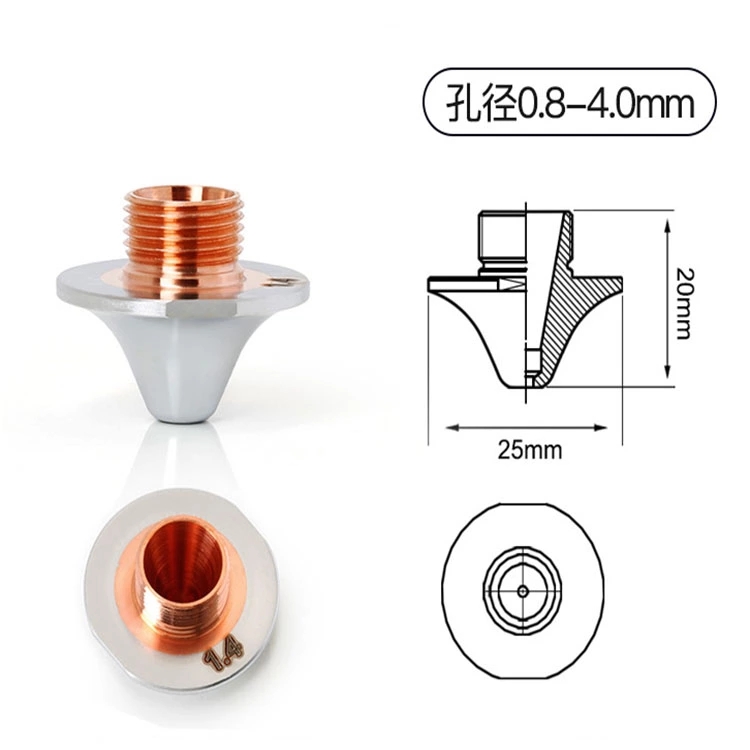

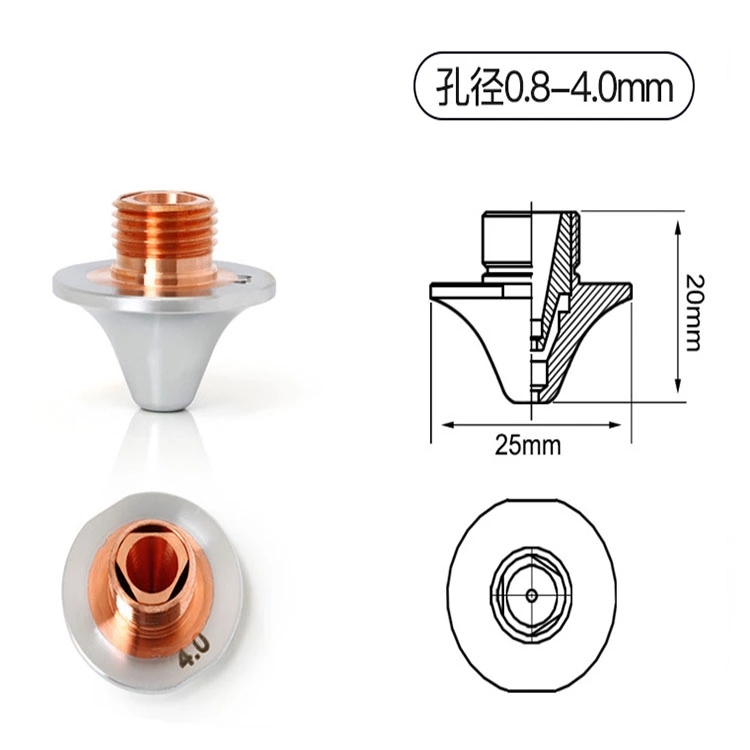

Dia.25mm H20mm Laser Nozzle For Amada Cutting Head
AMD 2520-D： 1.0 1.2 1.4 1.5 1.8 2.0 2.5 3.0 3.5 4.0
AMD 2520-S： 0.8 1.0 1.2 1.5 1.8 2.0 2.5 3.0 3.5 4.0
Please leave a message to tell us the caliber you need
Features:

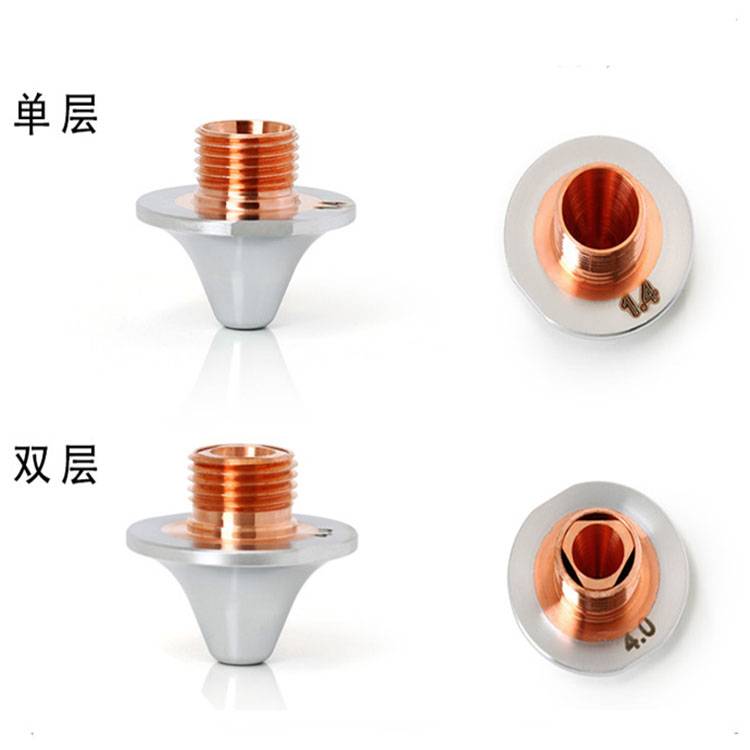

1. Single layer nozzles use Nitrogen gas and Air as auxiliary gases to cut stainless steel sheets, aluminum sheets and copper sheets etc.
2. Double layer nozzles use oxygen gas as auxiliary gases to cut metal sheets like carbon steel.
3. High quality nozzle is very important to the cutting quality.
4. The nozzle is made of quality copper material to ensure not the stable signal transmission, but also the fast heat dissipation to prolong service life. The production process of the nozzles is strictly in accordance with manufacturing technique. The surface is bright and clean, by special passivation treatment, to reduce fly flag adhesion and cutting craters .
