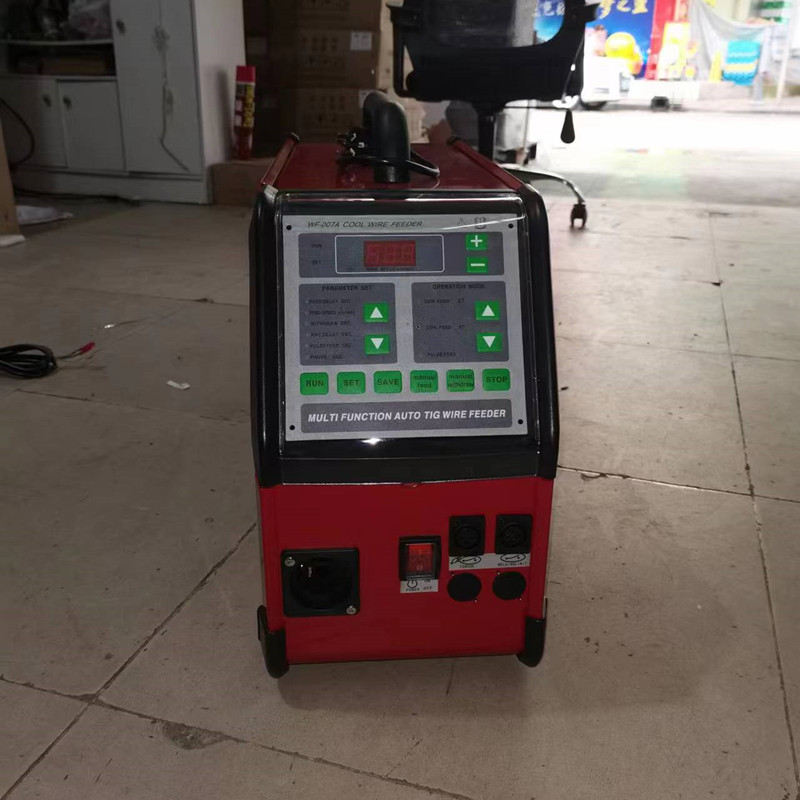

Wire filling machine
Cold wire filling machine (argon arc welding wire feeding machine) is suitable for manual argon arc welding, laser welding, automatic welding equipment, plasma welding, brazing and other welding processes that do not preheat wire filling equipment for the molten pool. (Multiplying work efficiency, reducing labor intensity, and saving labor and equipment costs.)
Purpose:
1. Filler wire for manual argon arc welding process.
2. Fill wires for the welding process of automatic argon arc welding machines and welding robots.
3. Automatic wire filling for laser welding process.

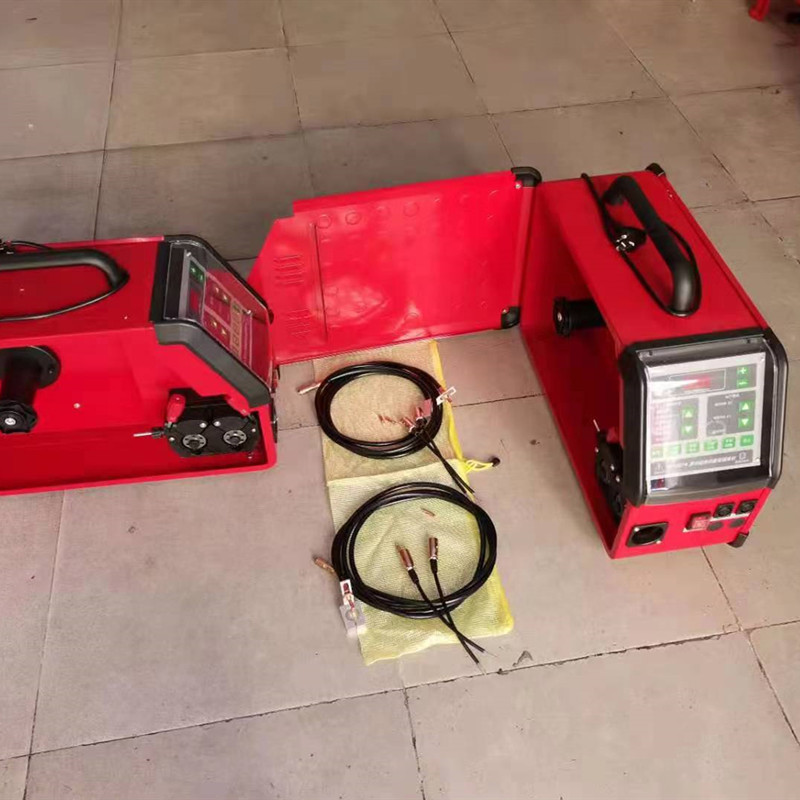

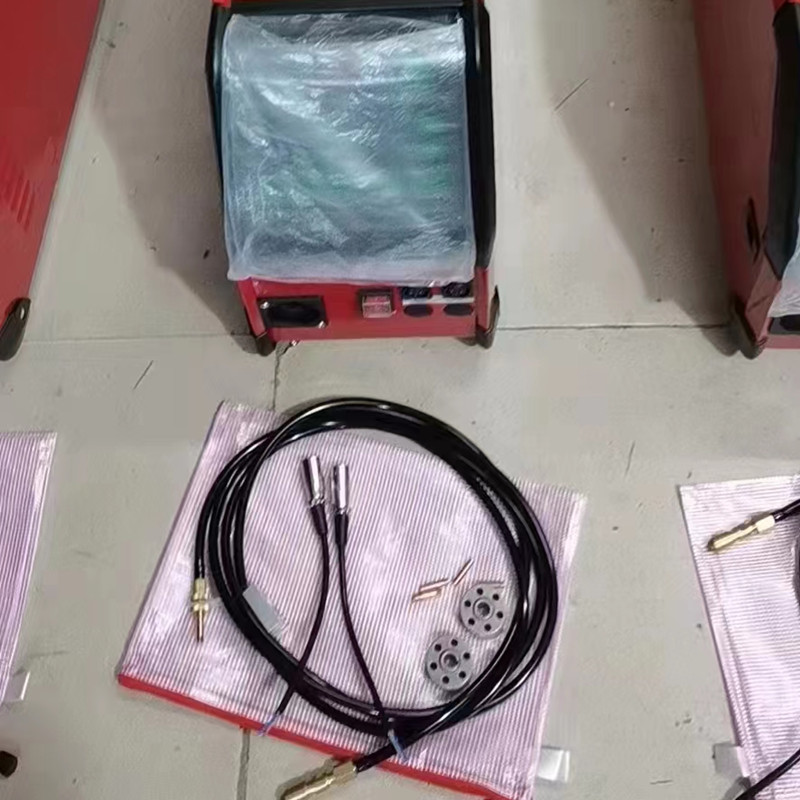

List of standard components for cold wire filling machine (argon arc welding wire feeder):
1. 1 wire feeder host
2. 1 filling gun
3. 1 pair of wire feeding wheels
4. 1 wire feeding nozzle/0.8/1.0/1.2/1.6 each

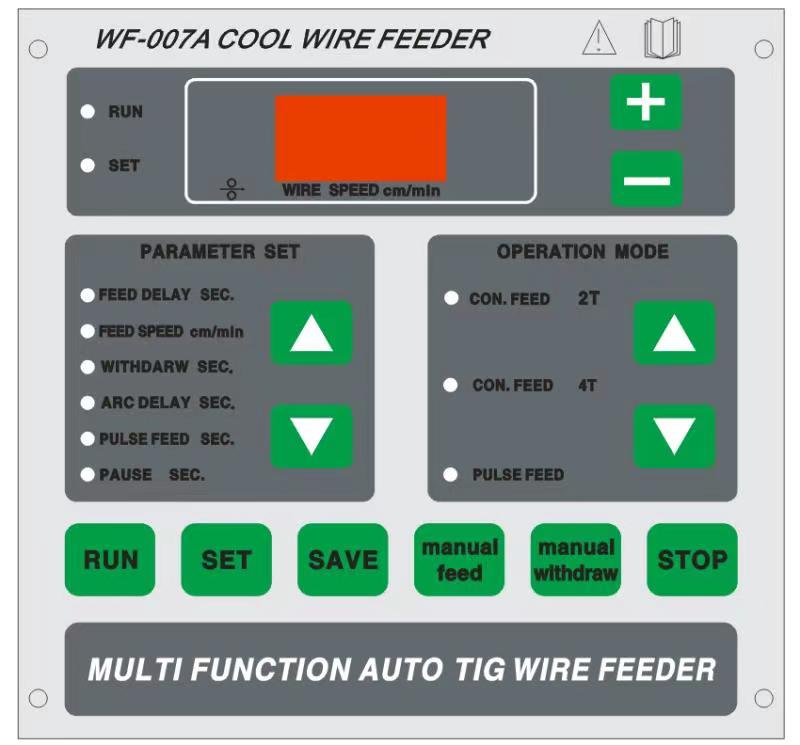

Main functional features:
1. The automatic wire filling speed is continuously adjustable;
2. Welding wire withdrawal function;
3. Delayed wire feeding function;
4. Pulse wire feeding function;
5. Continuous wire feeding function;
6. Dual drive wheel wire feeding system, suitable for wire feeding of various diameters of welding wires;
7. Suitable for various argon arc welding machines;
8. Multiplying work efficiency, reducing labor intensity, and saving labor and equipment costs
9. Stable and excellent welding effect, improving product quality;
10. Various functional parameters are independently and continuously adjustable.
11. High parameter adjustment accuracy.
12. Standardized products and components can be selected according to actual applications.
13. It can be widely used for welding various materials such as aluminum alloy, stainless steel, low-carbon steel, and non-ferrous metals;
14. Various welding processes such as argon arc welding and laser welding are available.
15. It can be applied to the welding process of manual, automated welding machines and robots.
Main technical parameters:
Voltage: AC220V 50Hz/60Hz
Number of phases: single-phase
Frequency: 50/60Hz
Electric motor: DC permanent magnet
Speed: 1200rpm
Welding wire disc size: 305mm
Welding wire size: 0.8mm, 1.0mm, 1.2mm, 1.6mm, 2.0mm
Wire feeding speed range: 0-600 cm/min
Pulse wire feeding time: 0-10 seconds
Pulse pause time: 0-10 seconds
Delayed start: 0-10 seconds
Wire drawing time: 0-10 seconds
Delayed power off time: 0-5 seconds
Step control: 4 steps
Inching wire feeding speed: 500 cm/min
Inching and rewinding speed: 100 cm/min
420mm high × Width 210 mm × 570 mm long
Weight: 19kgz
Speed regulation accuracy: 1%;
Usage Introduction
The cold wire filling machine, also known as the argon arc welding wire feeding machine, is an automated mechanical device that directly delivers the disc shaped filler into the welding pool without heating in advance.
In the process of tungsten inert gas (TIG) welding (commonly known as argon arc welding), in order to make the weld full and flat and meet the required mechanical strength requirements, it is necessary to add filler to the weld during the welding process. Generally speaking, the filler used in argon arc welding is welding wire. The method of adding welding wire can be classified as: manual wire filling and mechanical wire filling according to the main body of the wire filling. According to the pre heating conditions of the welding wire, it is divided into cold filling wire and hot filling wire. The commonly referred to argon arc welding wire feeder is a cold wire filling machine.
Cold wire filling machine (argon arc welding wire feeding machine) is an automatic wire filling machine developed specifically for the metal welding process, which does not preheat the welding wire. Generally speaking, a cold wire filling machine consists of three main parts: a wire feeder, a wire filling gun, and a welding gun fixture.
1. Computer control.
2. Smooth and smooth wire feeding.
3. Continuous and pulsating wire feeding methods.
4. Delayed wire feeding function.
5. Welding wire withdrawal function.
6. All parameters are continuously adjusted.
7. Equipped with self-locking control function.
8. High parameter adjustment accuracy, good stability, and wide range.
9. High reliability and very low failure rate.
10. Beautiful appearance, light weight, and small size.
11. High degree of standardization, sufficient supply of all components and accessories, and convenient replacement.
12. Good adaptability, can be used with all types of existing argon arc welding machines.
13. We can provide welding wires of various materials, including non-ferrous metals such as steel, stainless steel, aluminum, aluminum alloys, copper, and titanium.
14. Can be used in different welding situations, including manual argon arc welding, automatic argon arc welding, laser welding, robot welding, brazing.
