Raycus RFL-C1000 fiber laser offers advanced technology with improved performance, specifically designed for high-precision cutting, welding, and other industrial applications.
Raycus RFL-C1000 Laser Key Features:
Higher Photoelectric Conversion Efficiency: Ensures greater power efficiency, leading to lower energy costs.
Improved and Stable Beam Quality: Offers better consistency and precision in cutting and welding operations.
Enhanced Anti-High-Reflection Capability: Allows the laser to handle reflective materials like aluminum and copper with minimal risk of damage to the laser source.
Second-Generation Fiber Transmission System: Optimized for delivering precise and stable cutting results, especially with thicker materials.
Applications:
Cutting: Capable of cutting a variety of materials, with narrow cutting seams and bright section surfaces. It excels in thick plate cutting and is more reliable than many other lasers in the market.
Welding: Precision welding of metals with smooth, strong seams.
Drilling: Efficient in creating clean, accurate holes in metal and other materials.
Medical Device Processing: Well-suited for producing intricate parts with high precision.
Metal Marking and Surface Treatment: Effective for engraving, metal scoring, and surface polishing.
3D Printing and Rapid Prototyping: Useful in advanced manufacturing processes such as additive manufacturing.
Model Comparison:
| Feature | RCF-C1000 | RFL-C1000H |
| Power Output | 1000W | 1000W |
| Beam Quality (M²) | <1.1 | <1.1 |
| Wavelength | 1070-1080 nm | 1070-1080 nm |
| Cooling | Water/Air-Cooled | Water-Cooled |
| Application | Cutting, Welding, Drilling | Heavy-duty welding, Precision welding |
Optical Characteristics:
Average Output Power: 1000W
Center Wavelength: 1080 ± 5 nm
Maximum Modulation Frequency: 5 kHz
Output Power Stability: ±1.5%
Red Light Indicator: Available for easy alignment
Output Characteristics:
Output Interface: QBH connector (customizable)
Beam Quality (M²): 1.3 (with a 25μm core diameter)
Polarization State: Random
Output Fiber Length: 20 meters (customizable)
Electrical Control Features:
Input Power: 200-240 VAC, single-phase
Control Mode: External RS232, External AD, Super Terminal
Power Adjustment Range: 10% - 100%
Other Features:

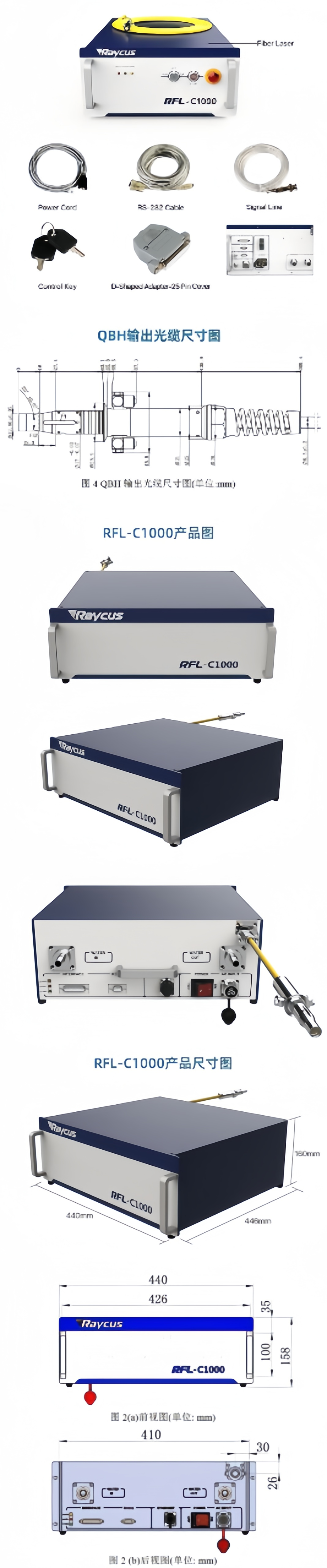

Dimensions (WHD): 485mm * 748mm * 237mm (including handles)
Weight: < 50 kg
Cooling Method: Water-cooled
Operating Temperature: 10°C - 40°C
Advantages Over Competitors:
High Efficiency in Thin Plate Cutting: Performs well with thin materials, offering higher speed and precision.
Maintenance-Free Operation: The QBH connector and overall system design ensure minimal maintenance.
Wide Modulation Frequency Range: Offers flexibility in various applications, making it adaptable for cutting, welding, and more.
Customizable Features: Both the output fiber length and connector type can be tailored to specific customer needs.
