IBOX-702
ibox
Indusrial PC IBOX-702 Fanless All in One PC Aluminum Structure with Celeron J1900 CPU+ 4G Ram
An industrial PC is a computer intended for industrial purposes (production of goods and services), with a form factor between a nettop and a server rack. Industrial PCs have higher dependability and precision standards, and are generally more expensive than consumer electronics.
Indusrial PC IBOX-702
Advantages Features:
Fanless All Aluminum
CPU core board is optional, support Celeron J1900 CPU
Only onboard 4g Ram
Support 1*MSATA,1*2.5"HDD,support RAID 0/1;
10*COM is optional(2COM support RS422/RS485)
Support WIFI and 3G/4G.
Support DC 9~36V wide voltage,power positive and negative reverse protection ;
Applied OS:Windows 7/8/10, Linux
Specifications:
Model | IBOX-702 A/B/C |
Color | Black(other color can be customized) |
Material | High-quality all aluminum |
Processor | CPU core board is optional,Intel Celeron J1900(quad core, 2.0GHz,TDP 15W) |
Ram | Onboard 4g Ram |
Bios | 64Mb SPI FALSH |
Display Chip | Integrated Intel HD Graphics |
Display port | 1*VGA,1*HDMI,1*LVDS |

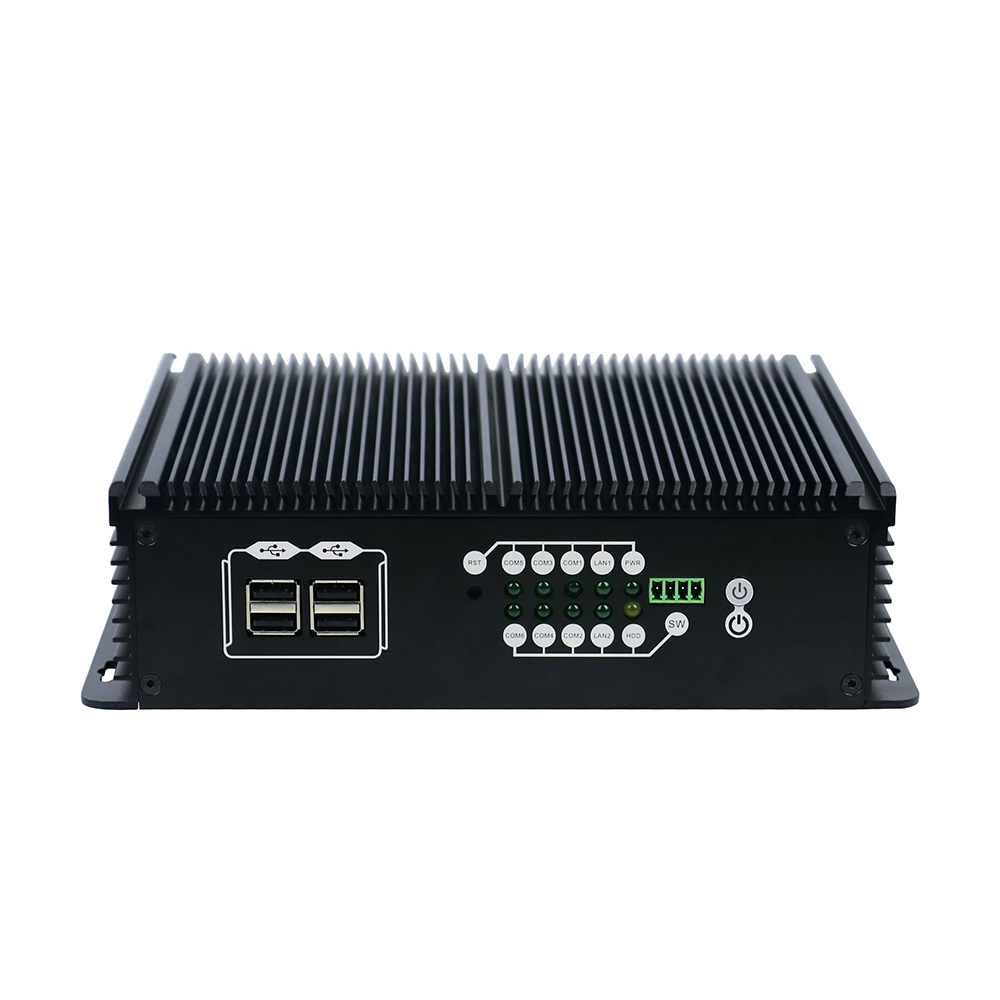

Front I/O | 4*USB2.0,1*RST,10*LED,1*4Pin Phoenix Terminal,1*Power Switc |

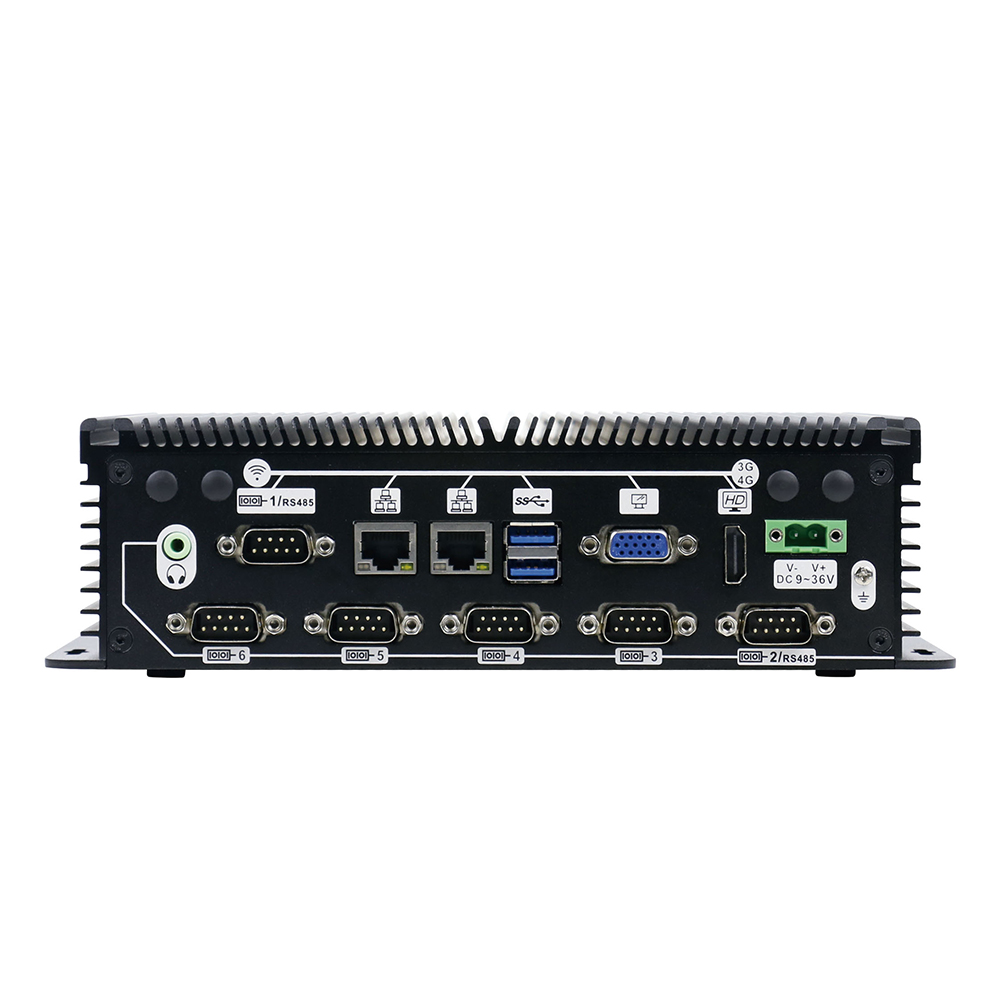

Rear I/O | 1*USB3.0,1*USB2.0,6*COM(COM1 and COM2 support RS422/RS485/RS232), 2*Intel 1000M LAN, 1*VGA,1*HDMI, 1* 2Pin Phoenix Terminal |
Expansion slot | Support 1*MINI PCIE slot( WIFI and BT is optional) |
Support 1*MINI PCIE slot (USB channel signal)(3G/4G), Embedded SIM Slot | |
Support 1*PCIE 4X | |
10*COM is optiona | |
GPIO is optional (Standard model don’t have this port ) | |
Lan | 2*Intel 82583V 10/100/1000M |
Storage | 2*SATA3.0, 1*MSATA,support RAID 0,RAID 1(2 * 2.5”SATA is optional) |
Power supply | Support DC 9~36V wide voltage,power positive and negative reverse protection |
Work temp | -10℃ ~ +60℃ |
Work humidity | 0% ~ 95% Non-condensing |
Dimension | 234 * 175 * 64.5mm |
Weight | 3.0 kg |
IBOX-702 Drawing:
Application: Automation, Medical, Transportation, Warehouse, Education etc ..
Accessory:
Item Name | Quantity | Specs |
Power Adapter | 1 | 12V/5A |
Power Cord | 1 | Any Plug is optional (Chinese, British, USA standard etc) |
Mount Braket | 2 | Standard Wall Mount |
Driver CD | 1 | Neutral |
Order Information:
IBOX-702 A | Intel Celeron J1900 | Standard Port ,1*COM |
IBOX-702 B | Intel Celeron J1900 | Standard Port ,6*COM |
IBOX-702 C | Intel Celeron J1900 | Standard Port ,10*COM |
