YPC-M3 Intel Mini PC Host

YPC-M3 Intel Mini PC Host
Availability:
Quantity:
  • YPC-M3

  • Ylgkdn

Product Description

YPC-M3 Intel Mini PC Host

YPC-M3(I5-8260U)/16gb ram+500gb nvme ssd/win10 pro/WiFi+Bluetooth

YPC-M3(I7-10810U)/16gb ram+500gb nvme ssd/win10 pro/WiFi+Bluetooth

YPC-M3(I5-8260U)/8+250/win10 pro/WiFi+Bluetooth


Features:

◇ Active cooling fan design;

◇Onboard 8th/10th Gen Intel Pentium 5405U, Core i5-8260U, i7-10810U;

◇ Support TPM2.0, Support Windows 11;

◇ Support 2 DDR4 RAM slots, MAX 64G;

◇ Supports 1 M.2 2280 slot, 1 2.5-inch HDD;

◇ Support DC 12V Input;

◇ Support OS:win10/win11/Linux


13

Specification:

Model

YPC-M3

Color

Dark Grey

Processor

Onboard Intel Pentium 5405U(Dual core quad threads,2.3GHz )

Onboard Intel Core i5 8260U (4 core 8 threads,  1.6GHz, Max turbo 3.9GHz)

Onboard Intel Core i7 10810U (6 core 12 threads,   1.1GHz, Max turbo 4.9GHz)

RAM

Support 2*DDR4 2133/2400/2666 SODIMM RAM slot,Max 64 GB.

BIOS

AMI EFI BIOS

Display Chip

Intel(R) UHD Graphics 620; Intel UHD Graphics 610

Display Port

1 DP, 1 HDMI

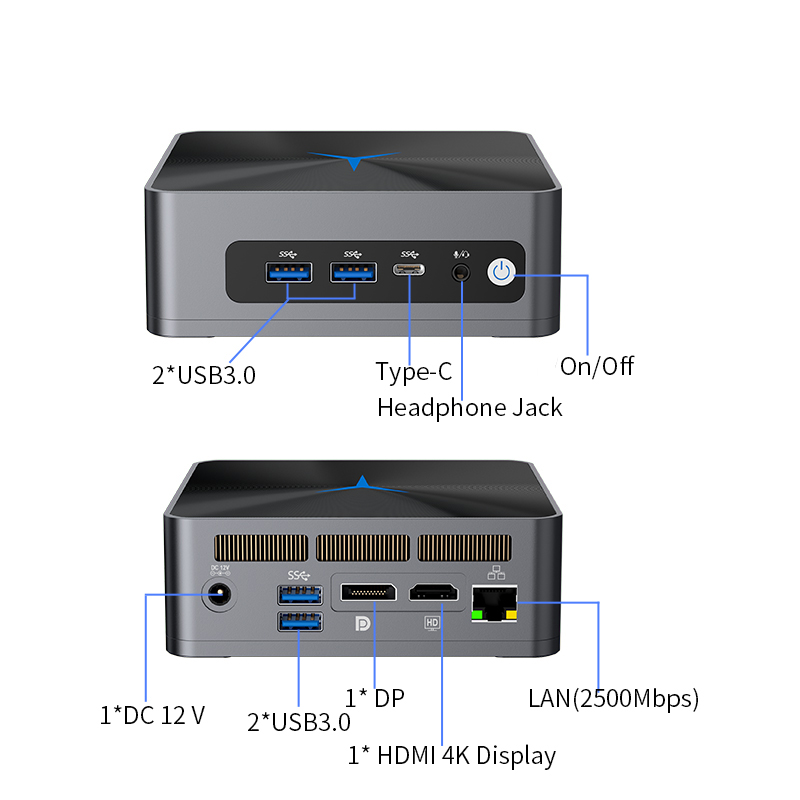

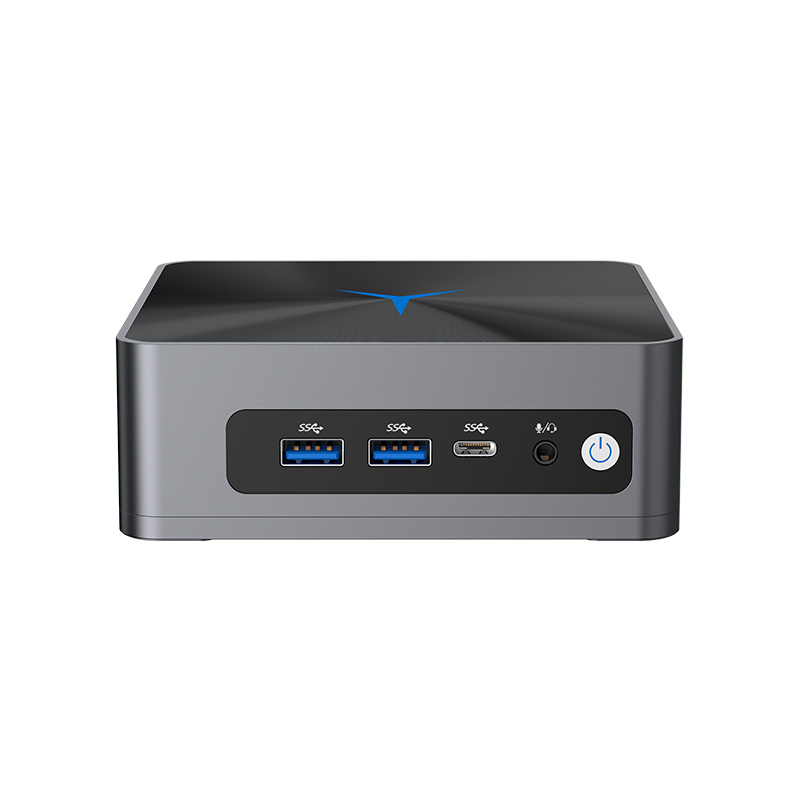

Front I/O

1x Power Switch,1x Audio (Support Mic and Speaker   at the same time),1 Type-C (USB signal), 2 USB3.0

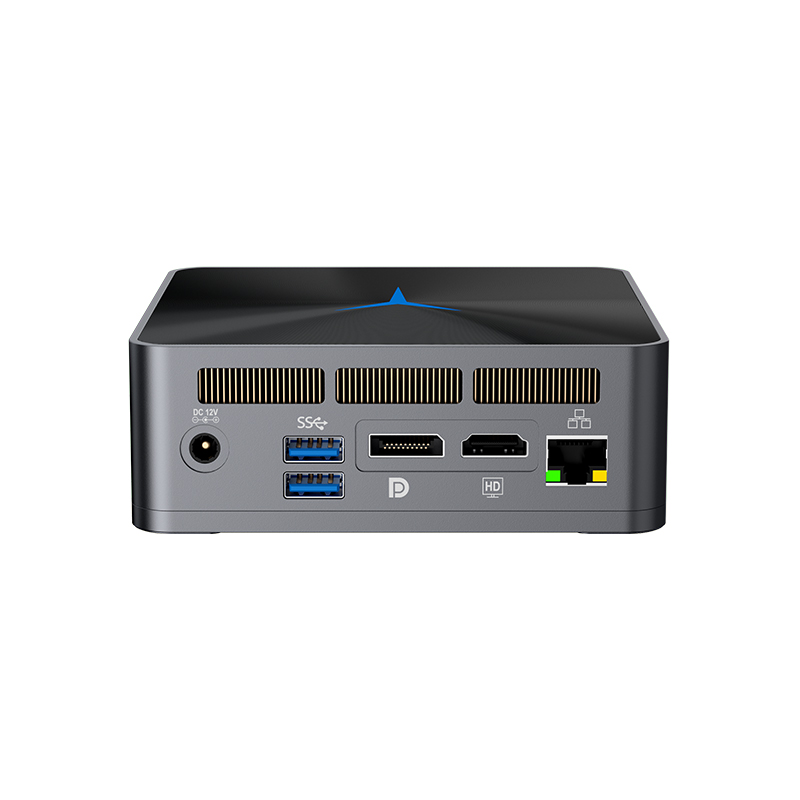

Rear I/O

1xDC, 1xHDMI,1xDP

2xUSB3.0,1xIntel i225-V 2.5G LAN

Expansion Slot

Support 1*M.2 2280 M-Key slot(Support SATA and NVME protocol)

Support 1 M.2 2230 E-Key slot (Support WIFI,Bluetooth)

Network

1xIntel i225-V 2.5G 100/1000M/2500M Ethernet

Storage

Support 1xM.2 2280 slot, 1x2.5” SSD/HDD

Power Supply

Support DC 12V Input

Work Temp

0℃ ~ +40℃(Commercial   HDD),Surface air flow

Work Humidity

5% ~ 95%   non-condensing

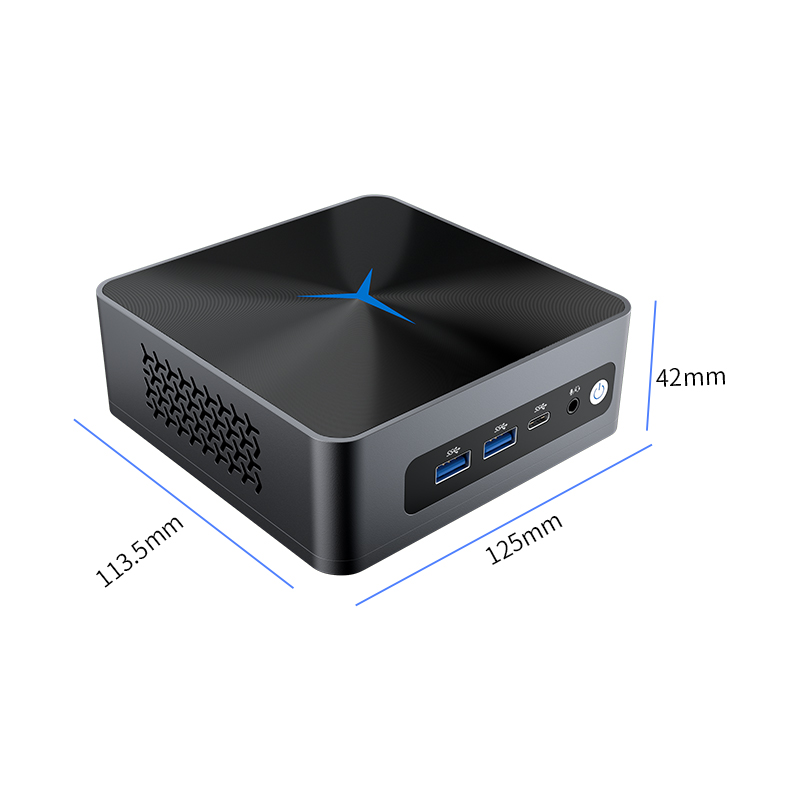

Dimension

125 * 113.5 * 42 mm

Net Weight

0.34 kg

Application

Business Office, HD Video Playback, Electronic   Education etc.

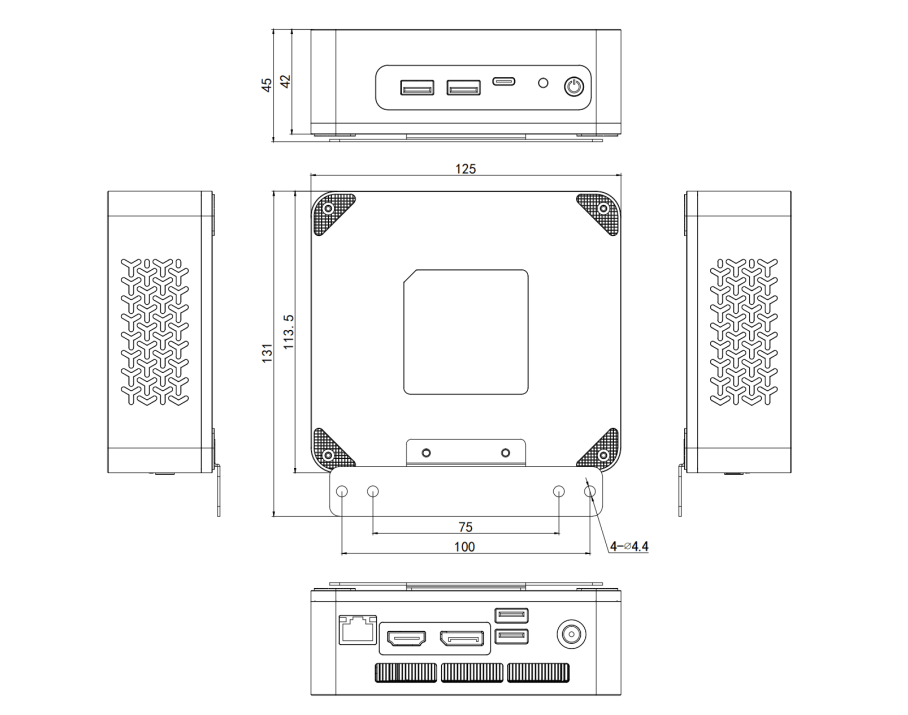

YPC-M3 Drawing:

62f9b75ed79ce

Accessories List:

Name

Quantity

Specification

Power Adapter

1

12V 5A

HDMI Cable

1

4K HD/length:0.75m

VESA Bracket

1

Black

User Manual

1

Chinese/English

Certificate

1

Chinese/English

Warranty Card

1

Chinese/English


Order Information:

Configuration   1

YPC-M3

Intel   Pentium 5405U

Standard   Port

Configuration   2

YPC-M3

Intel Core   i5 8260U

Standard   Port

Configuration   3

YPC-M3

Intel Core   i7 10810U

Standard   Port
