Ospri Fiber laser galvanometer welding head LSDW200 for 2000W laser welding machine

Fiber Laser Scanner Welding Head LSDW200


Availability:
Quantity:
Inquire Add to Basket

  • LSDW200

  • Ospri

Product Description

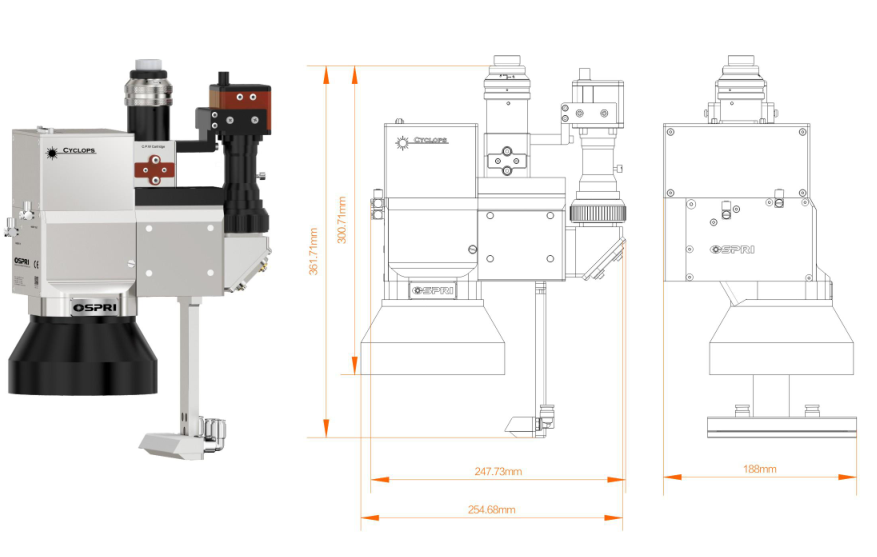

Fiber Laser Scanner Welding Head

Fiber Laser Scanner Welding Head

LSDW200

Laser Power

2000W

  • Integrated design for user-friendly operation.

  • Self-developed controller to meet various demands.

  • Water cooling for all optics and the cavity to extend service lifespand of the welding head.

  • Net weight 6.13 kG (exclude fieldlens), which is flexible for robot application.

  • Integrated CCD and display module can carry visual software and welding seam tracking system.



Product parameters:

Connector Type: QBH Wobble Range: 100*100mm ； 120*160mm
Applicable Wavelength: 1080±10nm Wobble Speed: 4000mm/s
Laser Power: ≤2KW Blowing Way:Airknife Crossjet
Collimation Length: 100mm Gas Pressure: ≤1Mpa
Focus Length: F255、F350 Net Weight: 6.13kG (exclude fieldlens)

Fiber Laser Scanner Welding Head
