Dual-band composite welding head LW421 applicable power 4000W/6000W
Availability: | |
---|---|
Quantity: | |
LW421
Ospri

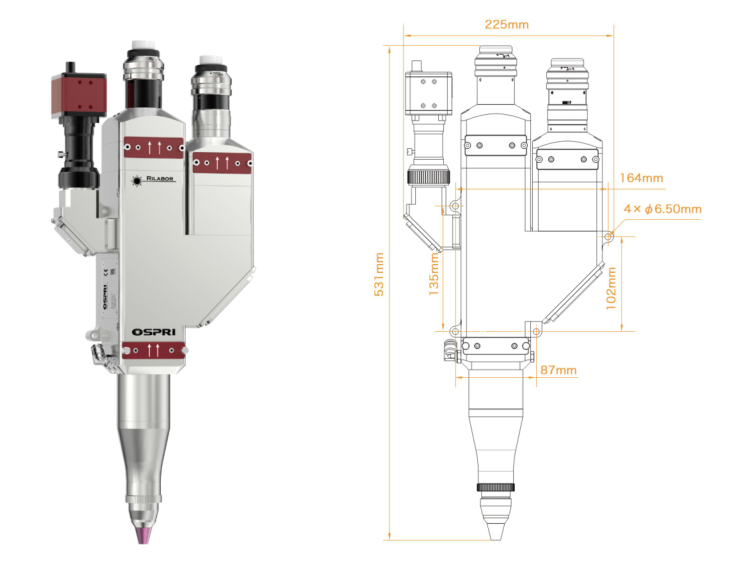

Dual-band composite welding head
LW421
Applicable power/Rated Power 4000W/6000W
Adapt to QBH interface
Equipped with CCD camera module
Combined with the respective advantages of optical fibers and semiconductors, it can improve the yield of welding bead and the beauty of welding plane when welding materials such as high-reflection materials and medium-thick plate stainless steel.
The semiconductor laser preheats the material, and the fiber laser performs deep strength processing of the material
The protective lens adopts a drawer design for easy maintenance
Product parameters:
Applicable wavelength: 1064nm+915nm
Semiconductor collimation focusing: 100mm
Semiconductor Focus Focus: 150mm/200mm/250mm/300mm
Fiber collimation focal length: 100mm/150mm/200mm
Fiber focusing focal length: 150mm/200mm/250mm/300mm
Vertical adjustment range: ±4mm
Effective light diameter: 46mm
Overall weight: 7.2KG
