raytools BW101-GS 2KW Single Galvo Handheld Welding Head

raytools BW101-GS 2KW Single Galvo Handheld Welding Head
The products displayed by Jiaqiang include BF series, BW series, AK series, involving different power segments and functional characteristics, from 2000W to 20000W multi-speed power range optional, functions include welding, cladding, quenching, etc.
Availability:
Quantity:
  • BW101-GS

  • raytools

Product Description

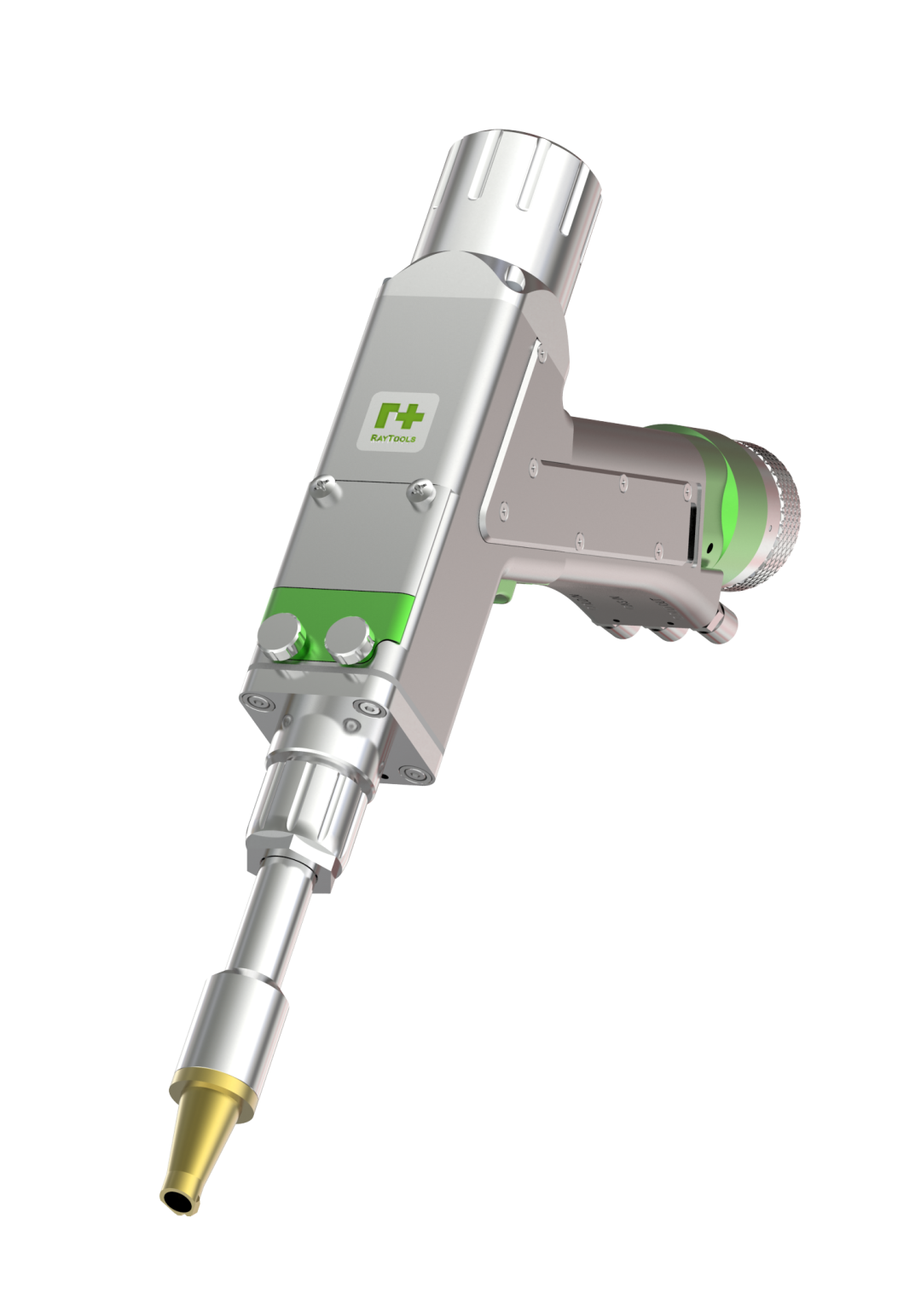

Product Name: Single Galvo Handheld Welding Head

Power level: 2000W

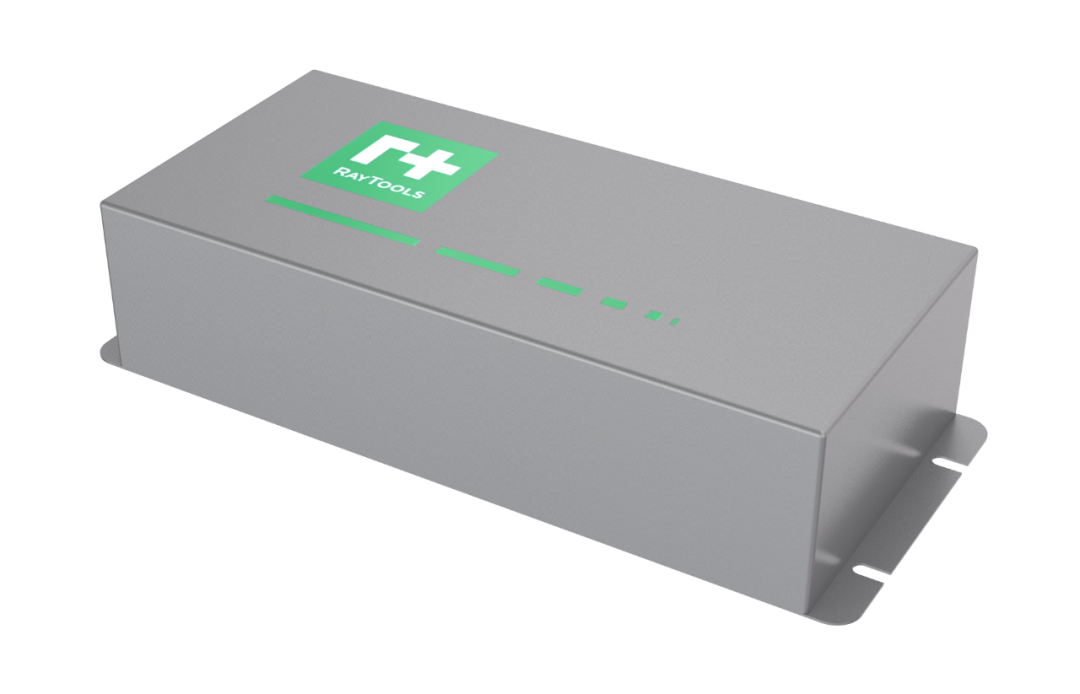

System accessories: control box

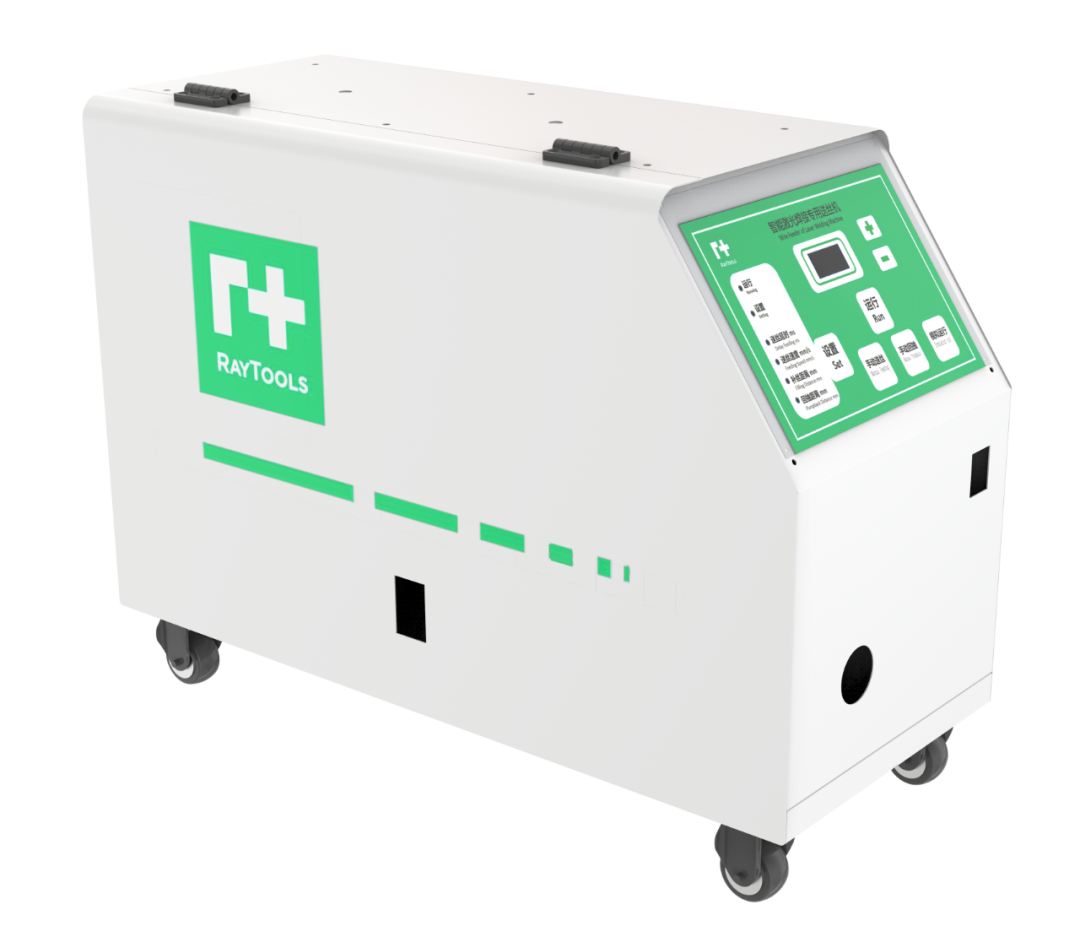

Optional: wire feeder






Features:

Single Galvo Handheld Welding Head:

Small size, compact structure, ergonomic design


Security:

Multiple safety protection, automatic light off when leaving the workpiece, high safety


Optimized Design:

Double protection window design, dust-proof and anti-slag design, the product is stable and reliable


Process advantages:

Continuous welding, fish scale spot welding, suitable for various welding methods


All-in-one features:

Equipped with multi-purpose nozzle selection to meet various functions such as welding, cutting, welding seam cleaning, remote cleaning, etc.


Specifications:

Optical interface: QBH
Clear aperture: 14mm

Focal length of collimator lens: 60mm

Focusing lens focal length: 150mm

Swing range: 0-5mm

Protective glass:

- Collimation protection lens: Φ20mm×3mm

-Focus protection lens: Φ20mm×3mm

Applicable wavelength: 1070nm

Copper Mouth:

-Inner fillet tip

-General welding wire feeder

-Outer fillet tip

- Outer corner wire feeder

- Cutting nozzle

Weight: ~0.9kg
