DRK12HZG Hollow pneumatic chuck front chuck for laser pipe cutting machine

A very important part of the pipe laser pipe cutting machine is the chuck. The maintenance of the chuck determines whether the round pipe laser pipe cutting machine can operate normally, whether the automatic steel pipe cutting machine can cut products with high precision, and whether the cut products have no flaws. Burr, can be used directly.
Availability:
Quantity:
  • DRK12HZG

  • DAIRUIKE

Product Description

Laser Tube/pip Cutting Machine DRK12HZG Hollow pneumatic chuck(front chuck)

DRK12HZG Hollow pneumatic chuck(front chuck)

A very important part of the pipe laser pipe cutting machine is the chuck. The maintenance of the chuck determines whether the round pipe laser pipe cutting machine can operate normally, whether the automatic steel pipe cutting machine can cut products with high precision, and whether the cut products have no flaws. Burr, can be used directly.

- Full itinerary

Full stroke clamping, automatic precision centering, fast automatic processing

- Convenient application

Gear pitch circle jumps, gear meshing backlash is adjusted in place, and the whole machine is more convenient to install

- Small inertia

High-speed processing can be achieved to meet the fast cutting of small pipes

- Strong stability

Integral built-in drive structure to improve transmission accuracy and stability

-Gear built-in dustproof, low noise

Avoid cutting dust from entering, high grinding precision and low noise

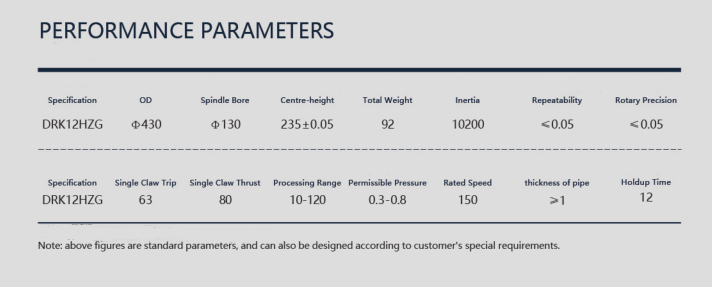

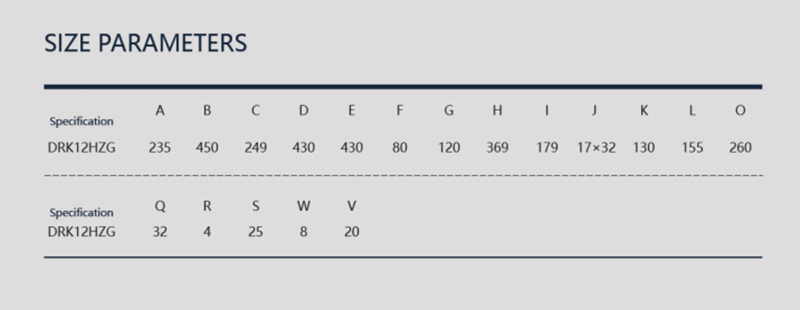

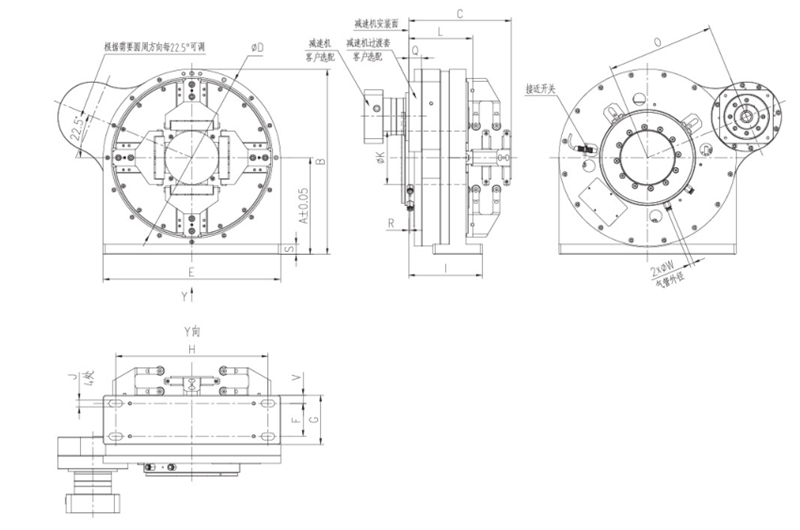

121314
