DRK22HZG-B 220mm Hollow pneumatic chuck front chuck for laser tube pipe cutting machine

A very important part of the pipe laser pipe cutting machine is the chuck. The maintenance of the chuck determines whether the round pipe laser pipe cutting machine can operate normally, whether the automatic steel pipe cutting machine can cut products with high precision, and whether the cut products have no flaws. Burr, can be used directly.
Availability:
Quantity:
  • DRK22HZG-B

  • DAIRUIKE

Product Description

DRK22HZG-B 220mm Hollow pneumatic chuck front chuck for laser tube pipe cutting machine

DRK22HZG-B

- Full itinerary

Full stroke clamping, automatic precision centering, fast automatic processing

- Strong stability

Integral built-in drive structure to improve transmission accuracy and stability

-Gear built-in dustproof one-piece casting

Built-in gear to avoid the entry of cutting dust, one-piece casting, stable installation of the reducer

- Small inertia and fast speed

Using the same power motor, fast acceleration and low application cost

- less leftover

After matching, the card can extend into the inner hole

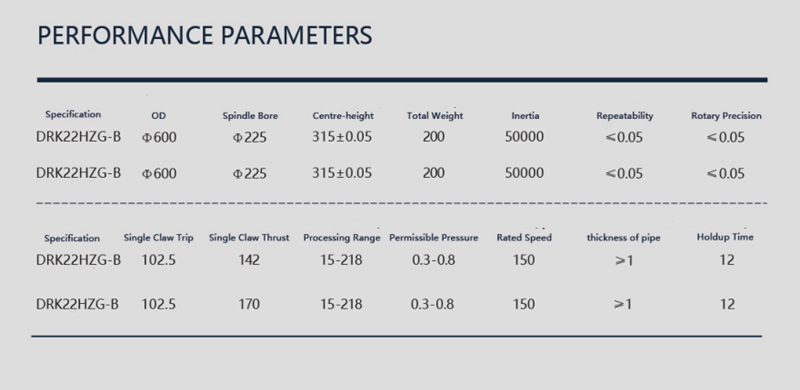

Outer diameter: Φ600mm

Through hole diameter: Φ225mm

Center height: 315±0.05mm

Total mass: 200Kg

Inertia: 50000K g.cm2

Repeat positioning accuracy: ≤0.05mm

Rotation accuracy: ≤0.05mm

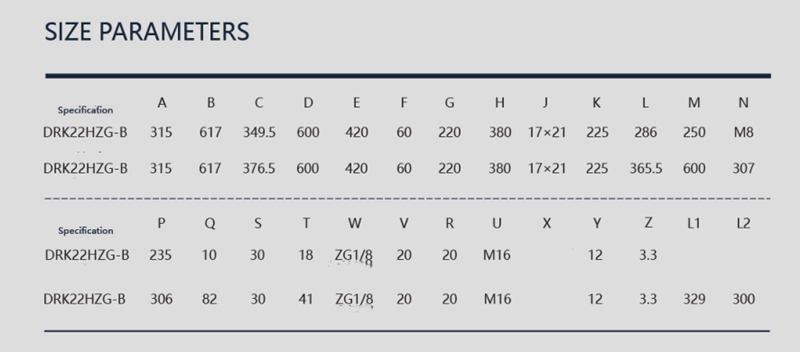

QQ图片20220804102528QQ图片20220804102514QQ图片20220804102545
