2D steel welding table bore diameter of 28 mm or 16mm

2D Welding Table

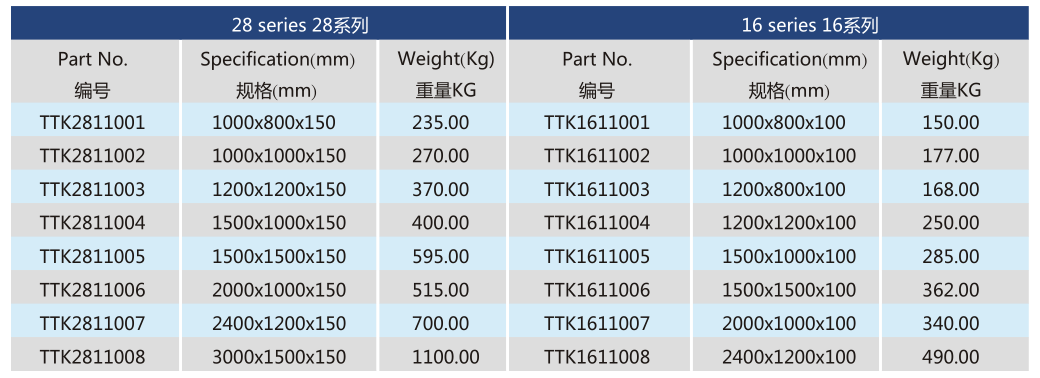

The 2D steel welding table has a horizontal ertical hole arrangement on top surface. The welding table has a hole grid system of 100×100mm with a bore diameter of 28 mm or 16mm.

Instructions for using the basic platform

The three-dimensional flexible combined fixture is divided into 8 categories according to the different functions of each component: working platform, support, positioning piece, adjustment key, pressing piece, locking piece, joint piece, and accessories. The function and use method in tooling are introduced in detail.

The support feet of the platform include standard support feet, universal wheel support feet, fixed support feet, frame structure support and hydraulic lifting support, etc. to meet the different needs of customers. This series of carefully designed for use provides great convenience.

Instructions for use of supports

Supports include: U-shaped square box, L-shaped square box, support angle iron, angle connection seat, etc. Each group of supports has different types.

Positioning elements of the same size.

2.1 U/L square box

U/L-shaped square boxes have 5 and 3 working surfaces respectively, and their functions are:

a) Extension of fixture table and providing clamping position

b) Two fixture tables or more than two fixture tables are connected

c) Can be used as a positioning and support module in the fixture system

2.2 Support angle iron

The support angle iron has 3 working surfaces, and its functions are:

a) Extension of fixture table and providing clamping position

b) can be adjusted arbitrarily and can be precisely positioned

c) It can be placed on the surface or side of the fixture table for large-scale positioning

2.3 Angle type connector

Angle type connecting seat is used for bevel edge extension of fixture table, V-shaped positioning use, angle stop of each accessory
