Laser cutting 3D Nozzle Double layer D15 M8 for Raytools 3D WSX 3D cutting head

Availability:

Quantity:



Inquire Add to Basket

Model:
D15

Product Description

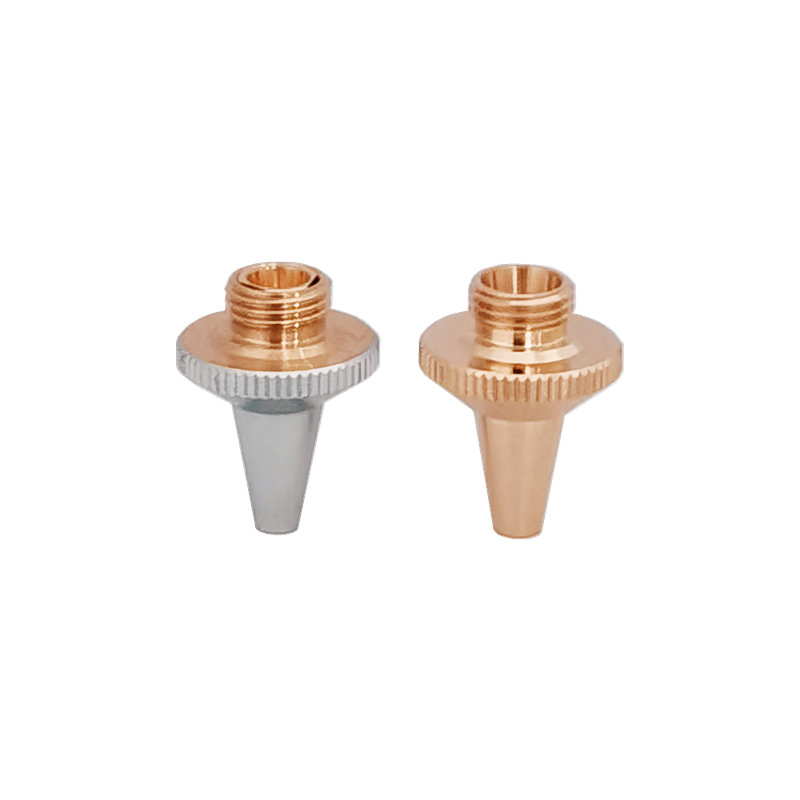

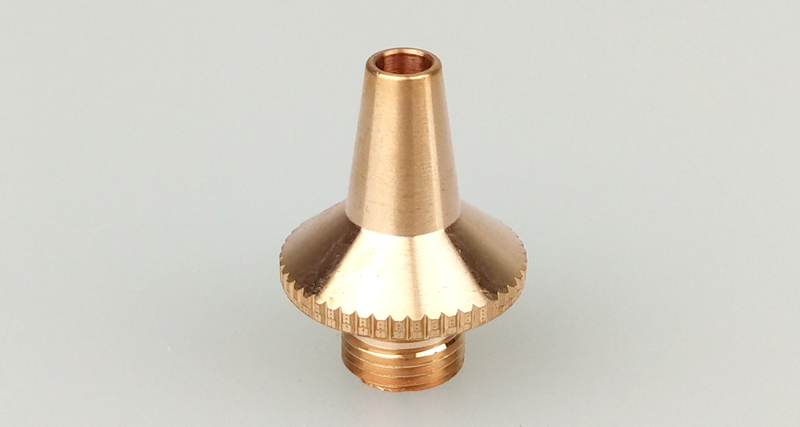

Laser cutting 3D Nozzle Double layer D15 M8 for Raytools 3D WSX 3D cutting head

Product Description:

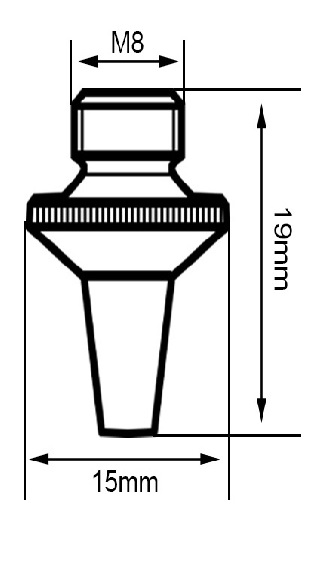

Model	Single-Layer 3D Nozzle
Diameter	15mm
Height	19mm
Thread
Caliber(mm)	1.0/1.2/1.5/2.0/2.5/3.0
Material	Imported copper with chromeplated

Product Description

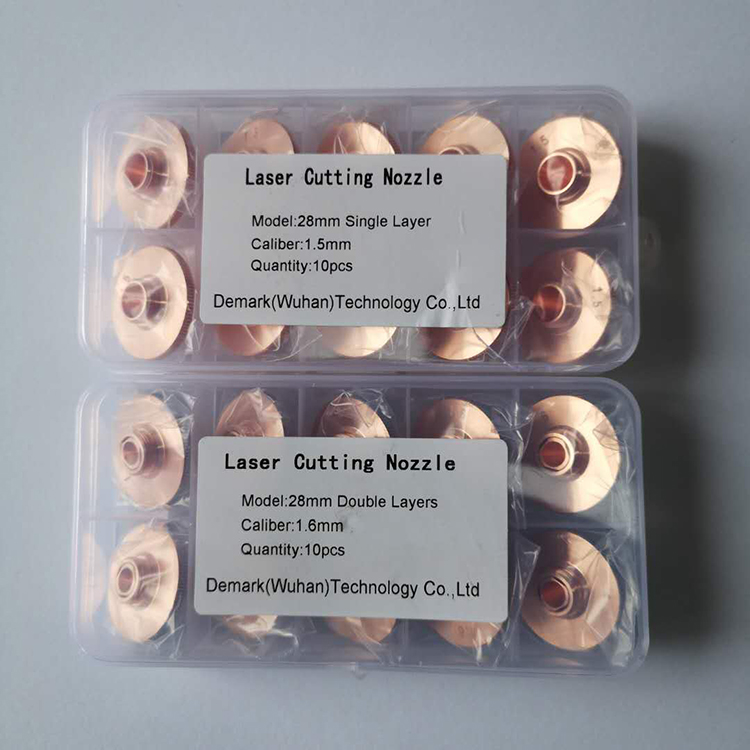

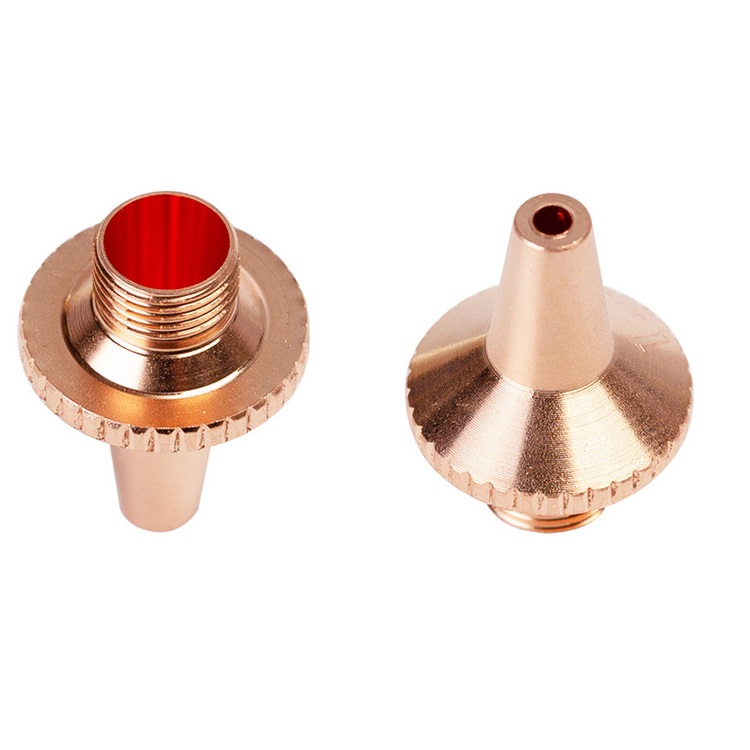

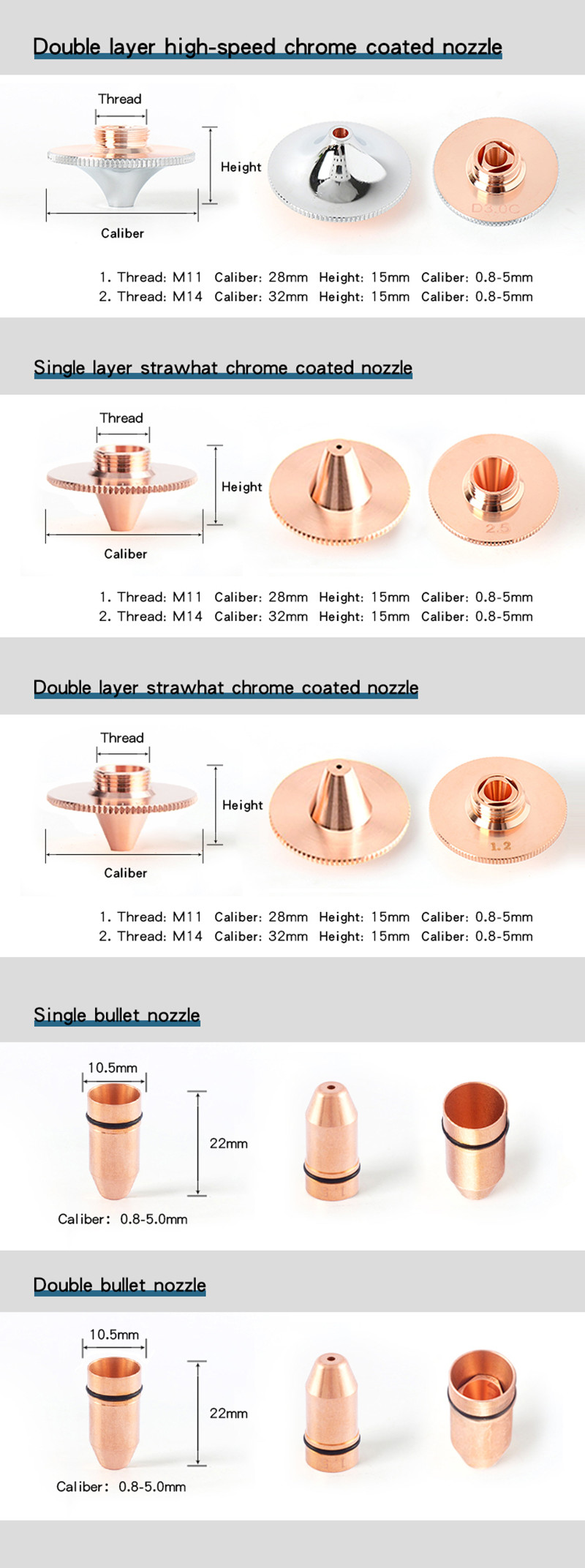

Cutting Nozzles

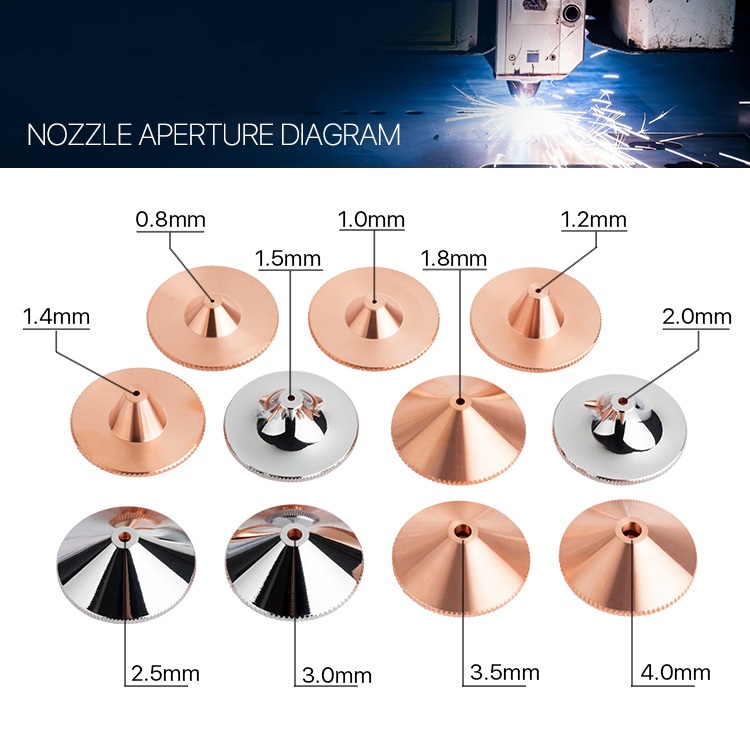

Tip Size: 1.0~4.0 mm

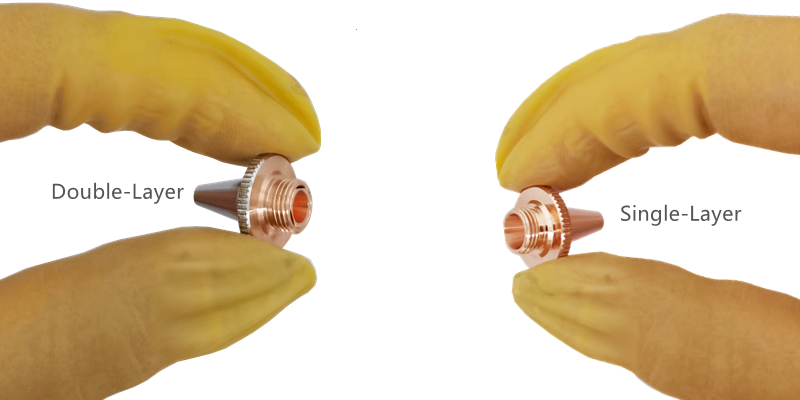

Type: single layer/double layer

applicable laser Leads: BM115 V3.0

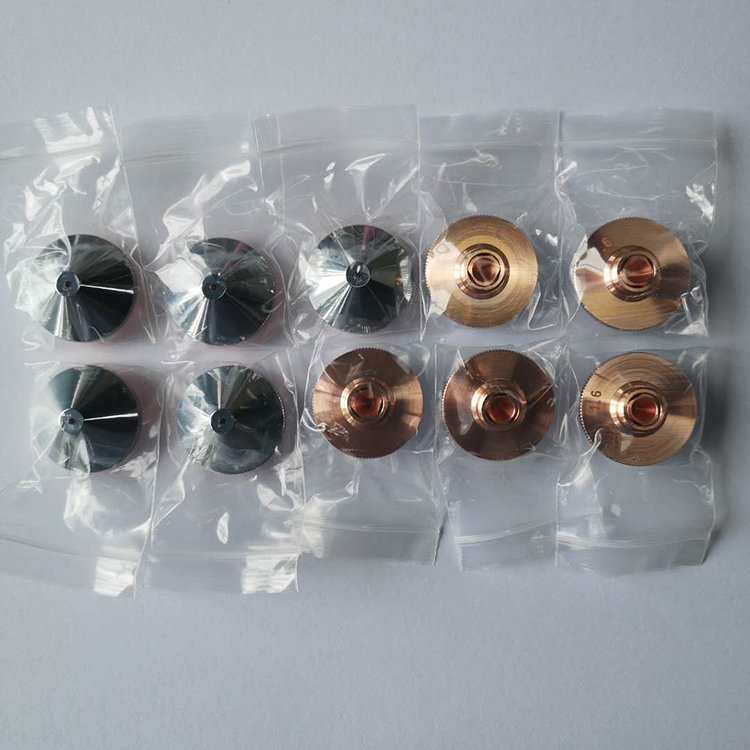

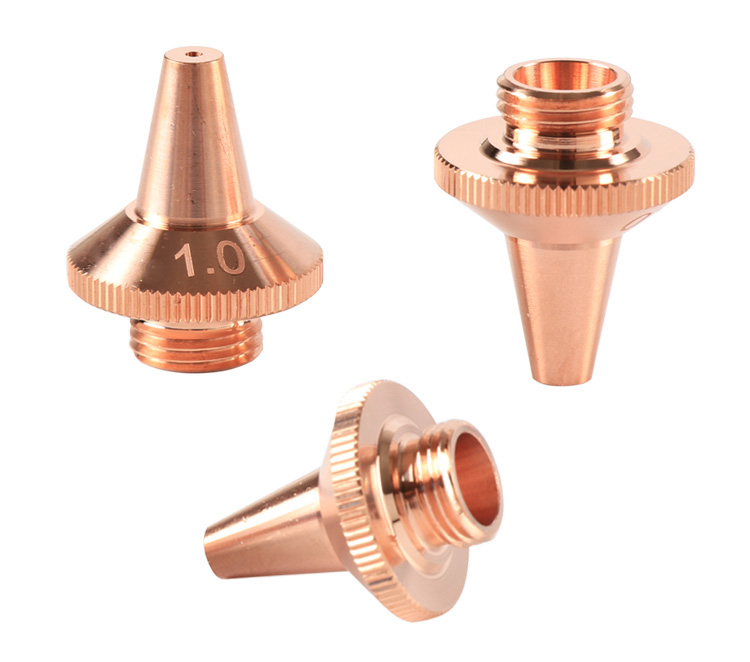

Details Images

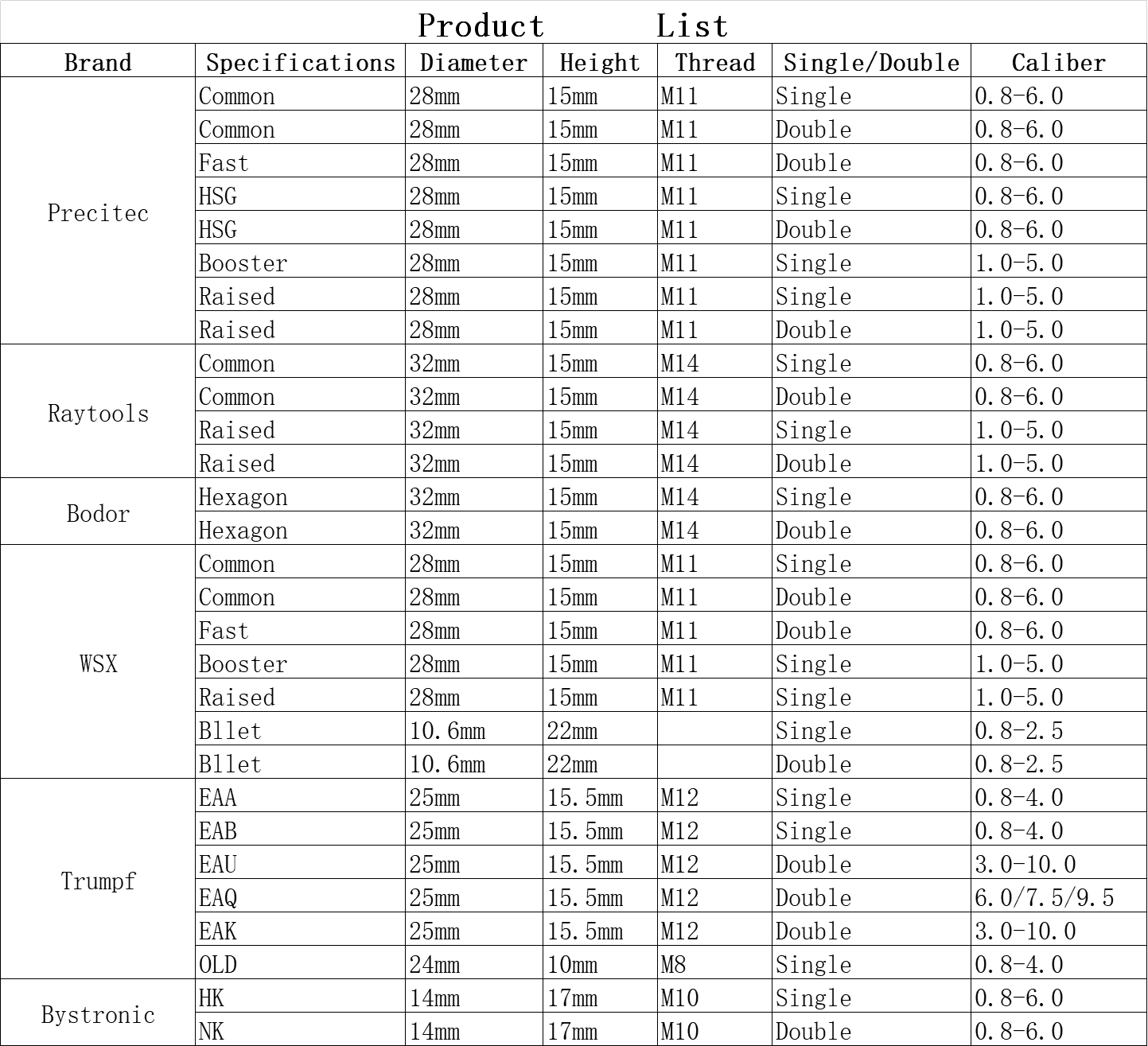

Specification

Part Code	Type	Type Size	Applicable Models of Laser Heads
120GJT0910	Single layer	1.0mm	BT210SRC/GF101/BD04K/BD08K/BM109TC/BM111TC/BM114TC
120GJT0912	Single layer	1.2mm
120GJT0915	Single layer	1.5mm
120GJT0920	Single layer	2.0mm
120GJT0925	Single layer	2.5mm
120GJT0930	Single layer	3.0mm
120GJT0935	Single layer	3.5mm
120GJT0940	Single layer	4.0mm
120GJT0208	Double layer	0.8mm
120GJT0210	Double layer	1.0mm
120GJT0212	Double layer	1.2mm
120GJT0215	Double layer	1.5mm
120GJT0220	Double layer	2.0mm
120GJT0225	Double layer	2.5mm
120GJT0230	Double layer	3.0mm
120GJT0235	Double layer	3.5mm
120GJT0240	Double layer	4.0mm
