3D Cast Welding Table 3D Welding Fixture bore diameter of 28 mm or 16mm

3D Cast Welding Table
The 3D cast welding table has a horizontal ertical hole arrangement on all five surface. It is possible to extend in all five direction.
The welding table has a hole grid system of 100×100 mm with a bore diameter of 28 mm or 16mm.
Availability:
Quantity:
  • 3D Cast Welding Table

  • XZR

Product Description

3D Cast Welding Table
The 3D cast welding table has a horizontal ertical hole arrangement on all five surface. It is possible to extend in all five direction.
The welding table has a hole grid system of 100×100 mm with a bore diameter of 28 mm or 16mm.

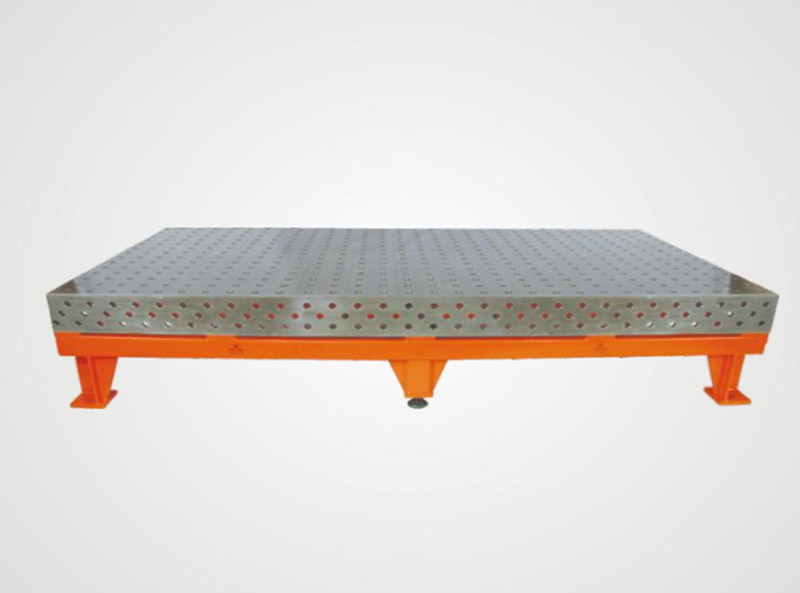

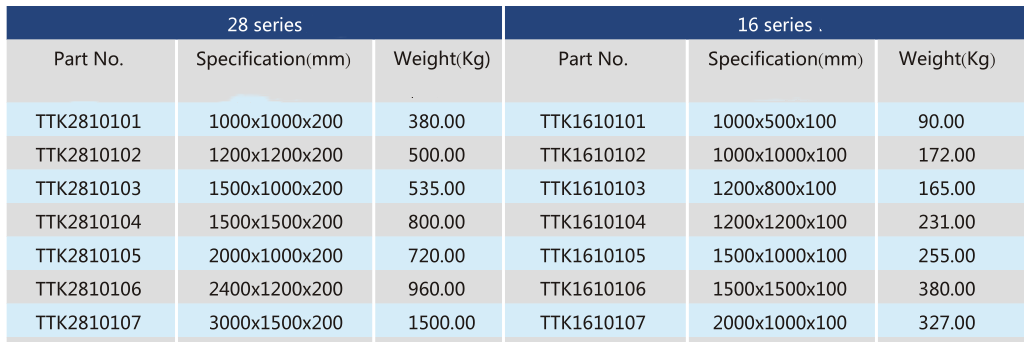

CK17496A2%8S0L_RUHQ9N

3D modular fixture system has a high precision hole grid system. The system enables a high precision and repetition.

The welding table has a hole grid system of 100×100 mm with a bore diameter of 28 mm or 16mm.It is possible to extend in all five directions.

The welding table has exact size. It is made of high quality steel which has high strength and rigidity.

Each side can extend 800mm by supporting angle and corner connecting block. When you use U-shaped square and supporting legs, it can extend longer.(via the corner connecting block).

We can meet the request of large workpiece through U-shaped squares.A few fixture table connect together to become a positioning surface in the landscape or portrait. (It can be used in positioning and clamping large workpiece, such as container, bus, large engineering machinery etc.)



3D Steel Welding Table

The working platform adopts the form of a grid plate with holes. On the upper surface and 4 sides of the high-precision table, there are circular holes of φ28mm (D28 series) every 100mm, or circular holes of φ16mm (D16 series) every 50mm, and dimension lines are drawn at the same interval , the edge of the table can be provided with millimeter scale lines, and the round holes on the table can be used for splicing positioning modules and fixtures with various functions. The size of the platform ranges from 500mm×1000mm to 2000mm×4000mm, and can be combined into any size workbench according to the needs. The bottom of each workbench is designed with holes for installing support legs, and the number of holes depends on the size and load-bearing of the platform.
