Raytools D32mm D28mm D19.5mm Ceramic Ring and Fiber Ceramic Cutting Head Accessories for Laser Cutting Machine

Raytools Original Laser Cutting Machine Ceramic Ring and Fiber Ceramic Cutting Head Accessories are critical components used in laser cutting machines, specifically in the fiber laser cutting head. These parts play a key role in ensuring the precision and performance of the laser cutting process, particularly in high-speed and high-precision operations.
Availability:
Quantity:
  • D32/28/19.5

Product Description

Raytools Original Laser Cutting Machine Ceramic Ring and Fiber Ceramic Cutting Head Accessories are critical components used in laser cutting machines, specifically in the fiber laser cutting head. These parts play a key role in ensuring the precision and performance of the laser cutting process, particularly in high-speed and high-precision operations.

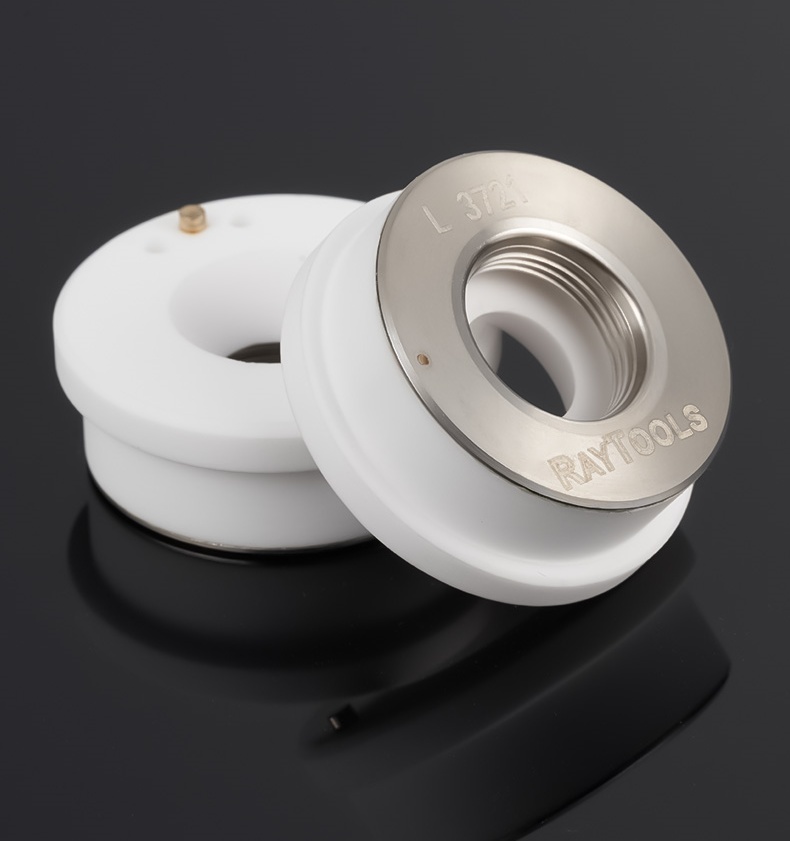

O1CN01DhGMOy1WTrq1niyvY_!!2212783982790

1. Ceramic Ring

  • Function: The ceramic ring is located at the tip of the laser cutting head. Its main function is to support and hold the cutting nozzle while providing electrical insulation to prevent damage caused by arcs or other electrical issues during cutting. It also ensures that the laser beam is accurately focused through the cutting head onto the material being processed.

  • Material: Made from high-purity ceramic, it has excellent heat resistance, corrosion resistance, and insulating properties, capable of withstanding the high heat generated during laser cutting.

  • Features:

    • High precision machining ensures stable operation of the cutting head.

    • Good electrical conductivity and insulation prevent electrical discharges or static interference.

    • High wear resistance for long-lasting performance, keeping the cutting head in optimal condition.

1-1. Large Ceramic Ring D32mm (Model: 120274100B)

  • Diameter: 32mm

  • Description: This large ceramic ring is typically used in high-power fiber laser cutting machines. It can withstand high levels of heat and pressure, effectively supporting the cutting head nozzle and ensuring stable laser beam transmission.

1-2. Medium Ceramic Ring D28mm (Model: 120515099A)

  • Diameter: 28mm

  • Description: The medium-sized ceramic ring is commonly used in medium-power fiber laser cutting machines. It offers excellent insulation and heat resistance, making it suitable for various cutting head maintenance and replacement needs.

1-3. Small Ceramic Ring D19.5mm (Model: 120572008B)

  • Diameter: 19.5mm

  • Description: This small ceramic ring is designed for smaller cutting heads, usually found in compact fiber laser cutting machines. Its compact size makes it ideal for more delicate cutting tasks.

1-4. Ceramic Ring D21.4 - M11 (95 Ceramic) (Model: 120515092B)

  • Diameter: 21.4mm

  • Thread: M11

  • Material: 95 Ceramic

  • Description: This ceramic ring, with a diameter of 21.4mm and M11 thread, is made of high-quality 95 ceramic, known for its excellent wear resistance and electrical insulation properties. It is suitable for various laser cutting heads.

1-5. Ceramic Body D21.4 - M8 (95 Ceramic) (Model: 120515093A)

  • Diameter: 21.4mm

  • Thread: M8

  • Material: 95 Ceramic

  • Description: This ceramic body has a 21.4mm diameter with an M8 thread and is made of 95 ceramic material. It offers excellent heat resistance and optical transmission, ensuring precise laser beam transmission within the cutting head.

1-6. Ceramic Body (Outer Diameter 41mm, M11) (Model: 120515089A)

  • Outer Diameter: 41mm

  • Thread: M11

  • Description: This ceramic body features a larger outer diameter of 41mm with an M11 thread. Its larger size makes it ideal for high-power laser cutting heads, capable of handling higher energy and pressure for stable laser transmission and cutting performance.


Component Model Diameter Thread Material Description
Large Ceramic Ring 120274100B 32mm - - Large ceramic ring for high-power fiber laser cutting machines, supports nozzle, ensures beam stability.
Medium Ceramic Ring 120515099A 28mm - - Medium-sized ceramic ring for medium-power laser cutters, offers insulation and heat resistance.
Small Ceramic Ring 120572008B 19.5mm - - Small ceramic ring for compact cutting heads, suitable for delicate cutting tasks.
Ceramic Ring D21.4 - M11 120515092B 21.4mm M11 95 Ceramic Made of 95 ceramic, wear-resistant and electrically insulating, suitable for various laser cutting heads.
Ceramic Body D21.4 - M8 120515093A 21.4mm M8 95 Ceramic High heat resistance and precise laser transmission for cutting heads, made of 95 ceramic.
Ceramic Body (Ø 41mm, M11) 120515089A 41mm M11 - Larger ceramic body for high-power laser heads, handles higher energy and pressure.

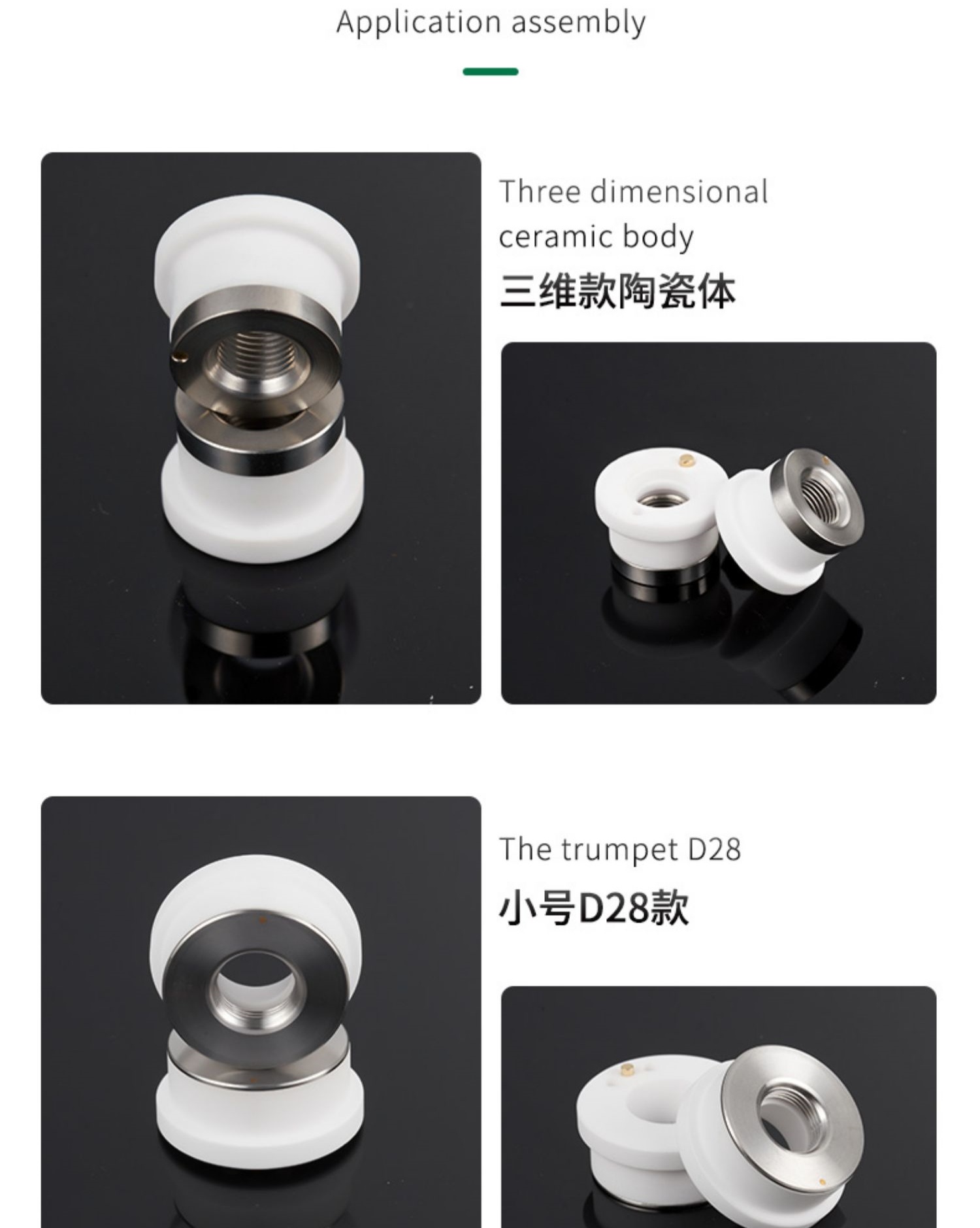

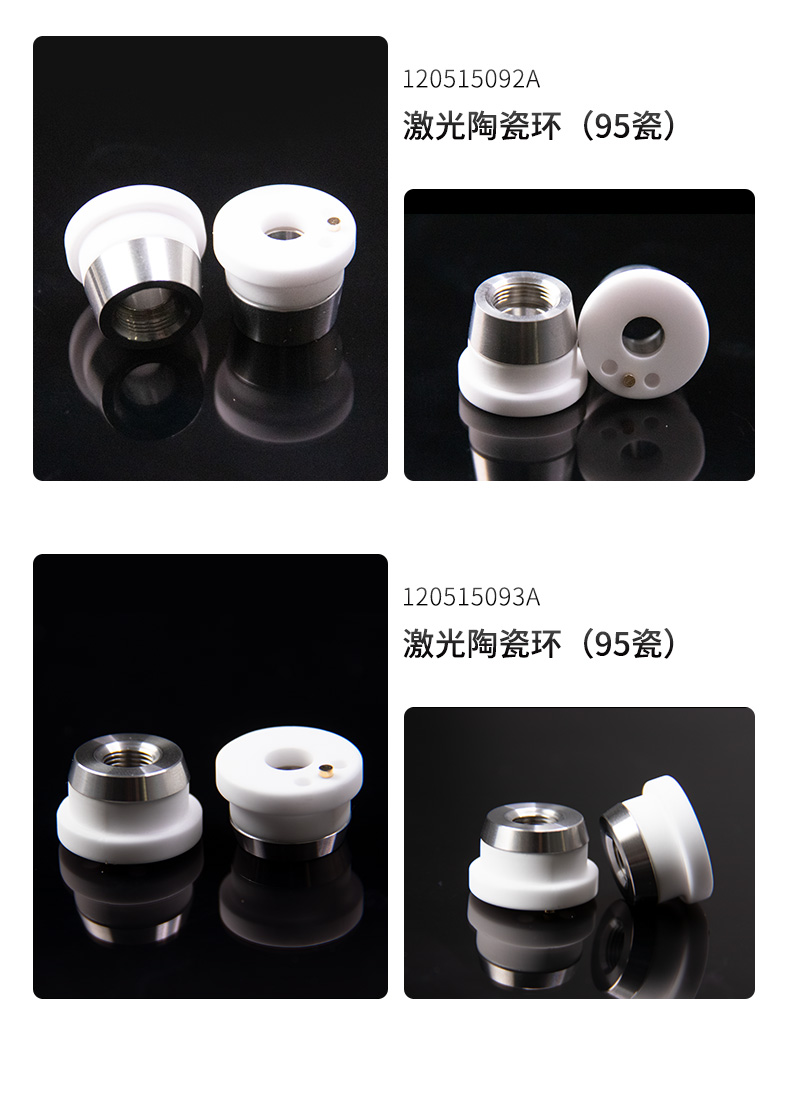

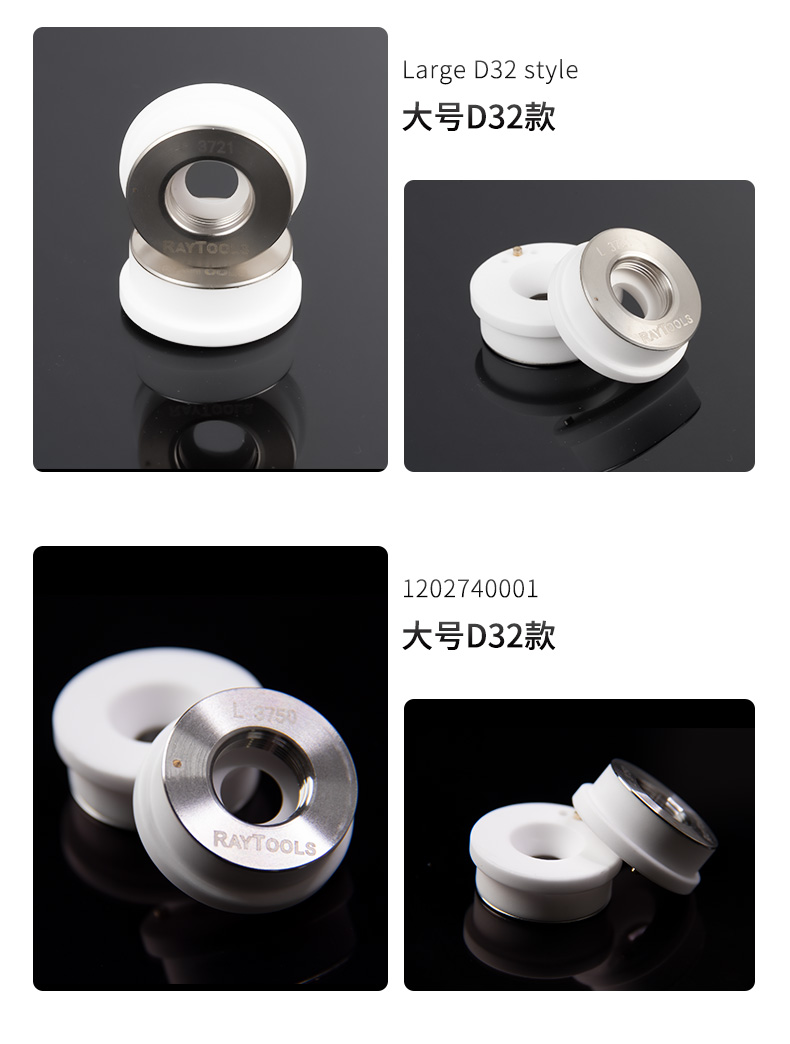

O1CN018q0vfx1WTrq86wWQz_!!2212783982790O1CN015RqpSD1WTrq3FT5Sf_!!2212783982790

O1CN014pSvNS1WTrq1njFYu_!!2212783982790

2. Fiber Ceramic Body

  • Function: The fiber ceramic body is primarily responsible for transmitting the laser beam. During the laser cutting process, it focuses and guides the laser beam through the cutting head, ensuring precise and efficient cutting. Its quality and design directly impact the machine's cutting efficiency and accuracy.

  • Material: Made from high-purity zirconia ceramic or other special ceramics, it provides excellent thermal stability and oxidation resistance.

  • Features:

    • High heat resistance, capable of withstanding thermal shocks during high-temperature cutting.

    • Outstanding optical transmission performance, ensuring accurate and high-quality laser cutting.

    • Durability under heavy workloads and extended periods of use.

自定义高清放大 (4)自定义高清放大 (3)自定义高清放大 (2)

3. Main Applications

  • Laser Cutting Machines: Raytools accessories are primarily used in fiber laser cutting machines for cutting various metals, such as carbon steel, stainless steel, aluminum alloy, and copper.

  • Cutting Head Components: The ceramic ring and ceramic body are crucial parts of the laser cutting head, ensuring precise laser beam transmission and cutting head stability. They are especially suitable for high-precision, high-speed cutting tasks.

4. Advantages

  • High Stability and Durability: Ceramic materials offer excellent wear resistance and corrosion resistance, allowing them to perform consistently under high-temperature, high-stress conditions.

  • Ensures Cutting Quality: High-quality ceramic rings and ceramic bodies minimize errors during cutting, enhancing cutting efficiency and product quality.

  • Easy to Replace: Although they are consumable parts, their simple structure makes replacement quick and easy, ensuring minimal downtime for the machine.

5. Compatibility

Raytools original ceramic rings and fiber ceramic bodies are typically compatible with various mainstream fiber laser cutting machines, including machines with power ratings of 500W, 1000W, 2000W, and higher. It is recommended to verify the model to ensure compatibility with your machine.

6. Maintenance and Care

  • Regularly inspect the ceramic ring and ceramic body for cracks or wear and replace them if needed.

  • Keep the surfaces of the components clean to avoid metal dust interference with beam transmission during cutting.

  • Prevent excessive contact of the ceramic ring with cutting materials during operation to extend its service life.
