High-Precision Laser Cutting Solution for 0.070mm EMI shielding layers

Our precision laser cutting machines are ideal for processing 0.070mm thin metal sheets including stainless steel, aluminum, and copper. These machines offer the highest level of precision and speed, ensuring that even the most intricate designs are cut cleanly and accurately without any thermal distortion or mechanical stress.
Availability:
Quantity:
  • 0.070mm

Product Description

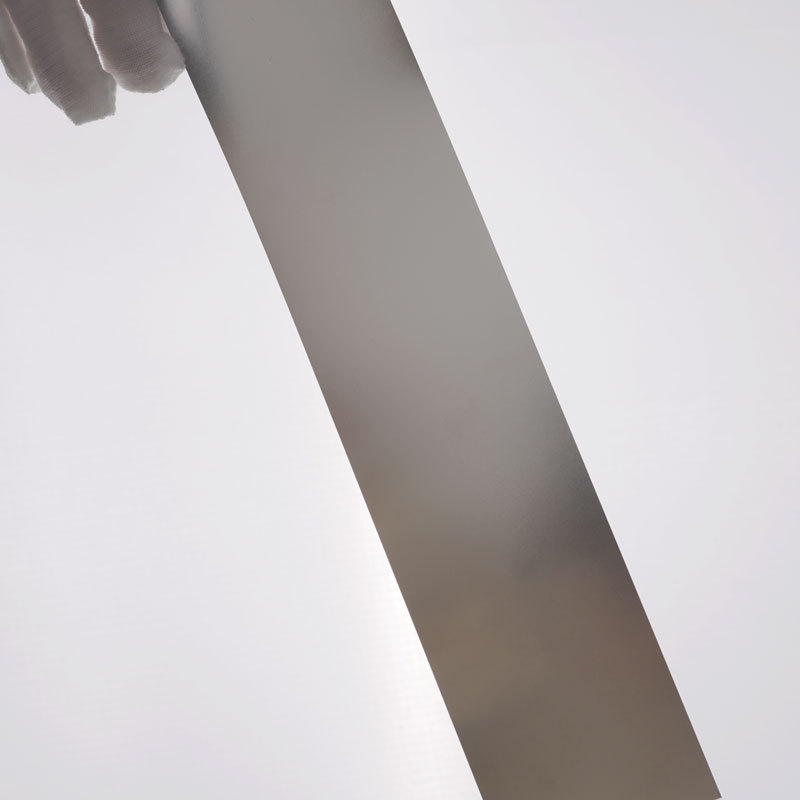

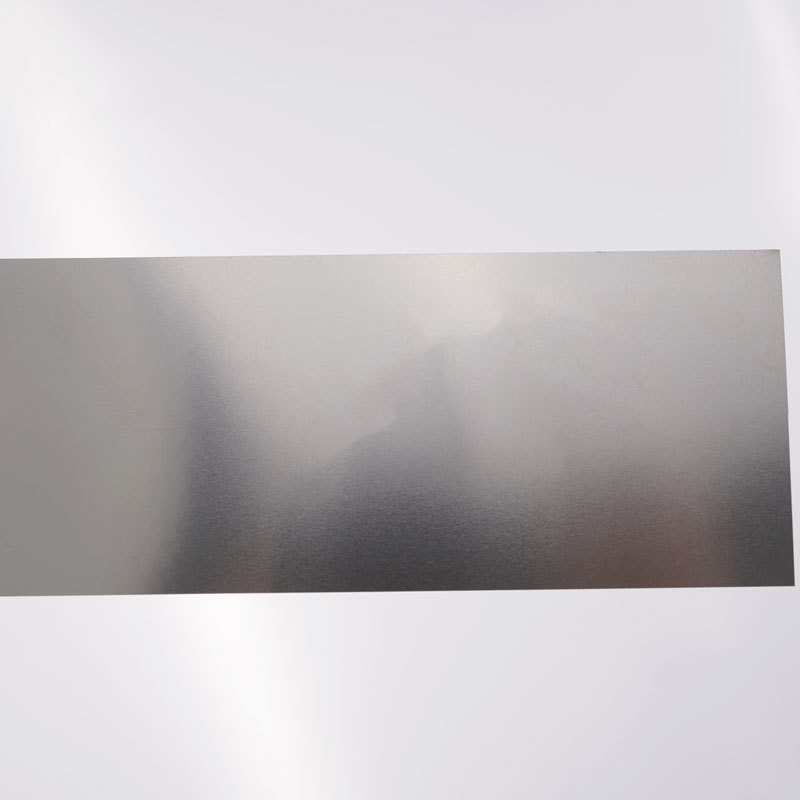

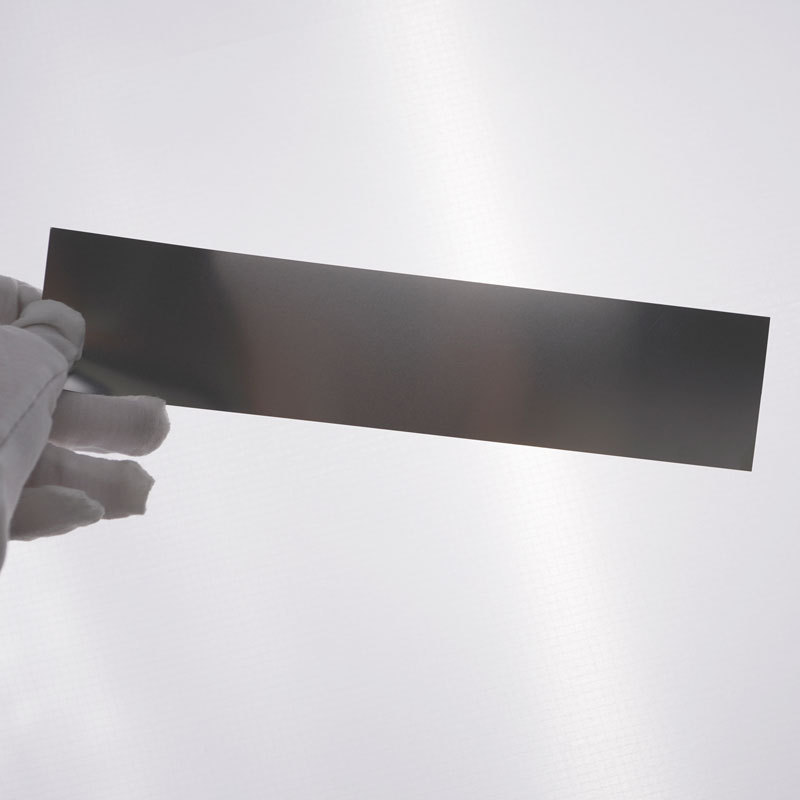

0.070mm Thin Metal Sheets

Industry Application
Electronics EMI shielding layers, precision connector parts, micro relays, flex circuit covers
Medical Devices Surgical blades, mesh filters, sensor elements, diagnostic strips
Aerospace & Defense Micro-components, thin metal diaphragms, signal shielding parts
Communication RF shielding, antenna elements, waveguide components
Automotive Micro valves, thin gaskets, EV sensor parts
Filtration & Fluidics Micro-perforated filter screens, precision fluid control parts
SMT / PCB Industry High-resolution stencil masks, solder paste stencils

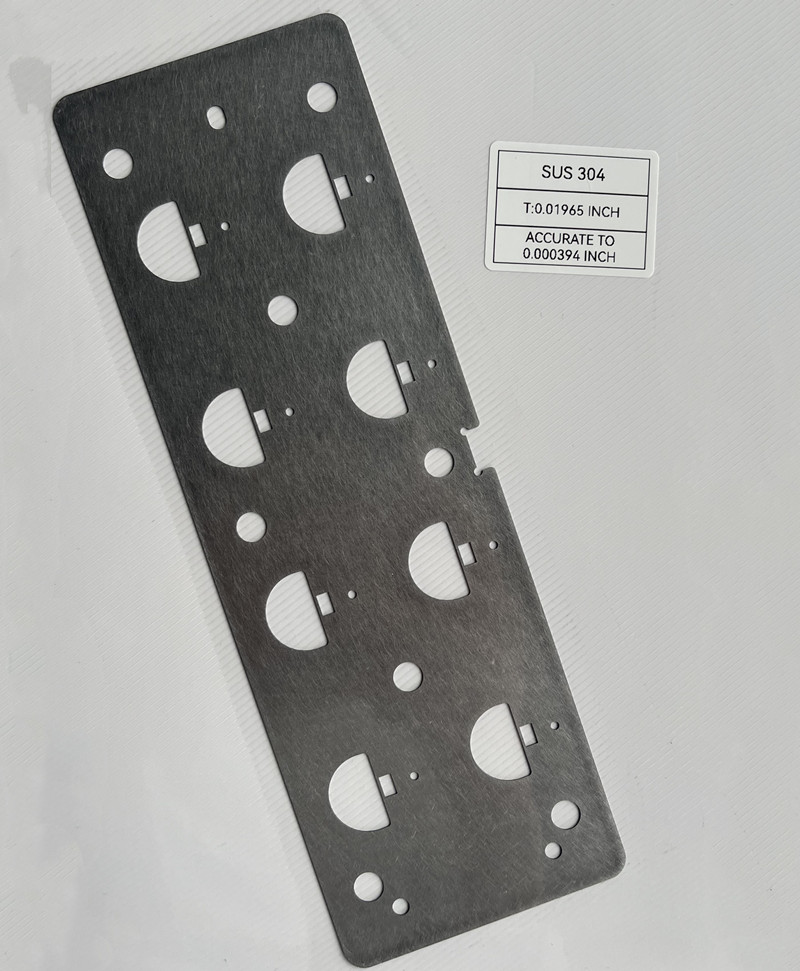

Laser Cutting for 0.070mm Metal Thin Sheets - Product Applications

1_东莞市长善精密科技有限公司简介202401-8_副本

Our precision laser cutting machines are ideal for processing 0.070mm thin metal sheets including stainless steel, aluminum, and copper. These machines offer the highest level of precision and speed, ensuring that even the most intricate designs are cut cleanly and accurately without any thermal distortion or mechanical stress.


Machine Applications for 0.070mm Thin Metal Sheets

Our laser cutting technology is well-suited for a variety of industries that require ultra-thin and highly detailed parts. The precision and flexibility of our machines make them perfect for the production of various high-quality components from 0.070mm metal sheets.

Key Products Manufactured Using 0.070mm Metal Sheets:

Industry End Products
Electronics - EMI shielding for mobile phones, tablets, and laptops

- Precision connectors and micro relays

- Flexible circuit boards for compact devices
Medical Devices - Surgical blades and micro-needles for minimally invasive surgeries

- Diagnostic strips and microfilters for medical equipment
Aerospace & Defense - Micro diaphragms for sensors and actuators

- Thin metal housing components for aerospace electronics
Communication - RF shielding and antenna parts for mobile and wireless communication
Automotive - Gaskets for automotive engines and other critical parts

- EV sensor parts for electric vehicles
SMT / PCB Industry - Stencil masks for PCB solder paste application
Filtration & Fluidics - Micro perforated filter screens for air or water filtration

- Flow control valves and precision fluid handling components

Why Choose Laser Cutting for 0.070mm Metal Sheets?

  • Precise Micro-Cutting: Achieve detailed and intricate designs with high-precision, even in ultra-thin metal sheets.

  • No Material Distortion: Non-contact cutting method ensures there is no deformation or mechanical stress on the material.

  • High Efficiency: Fast cutting speeds of up to 22,000 holes/hour for high-volume production.

  • Minimal Heat-Affected Zones (HAZ): Reduces thermal impact, ensuring fine edge quality without affecting the material's mechanical properties.

  • Perfect for Small Components: Ideal for producing small parts with complex geometries and high-density hole patterns.


Example Applications

  1. Electronics Industry:

    • 0.070mm thin stainless steel is used for precision shields in electronic devices like mobile phones, where fine patterns and high levels of protection are needed.

  2. Medical Devices:

    • Micro-needles for drug delivery or diagnostic equipment, where 0.070mm thick stainless steel ensures both strength and flexibility.

  3. Aerospace:

    • Diaphragms in aircraft sensors and actuators that require both durability and lightweight properties, processed from 0.070mm thin aluminum or titanium.


Machine Specifications for Processing 0.070mm Metal Sheets

Feature Specification
Laser Power 100W–200W (IPG Fiber Laser)
Cutting Speed Up to 22,000 holes/hour
Positioning Accuracy ±2 μm
Repeatability ±2 μm
Cutting Line Width 0.02–0.03 mm
Max Cutting Thickness 1.0 mm (Best for 0.070mm sheets)
Working Area 650mm × 650mm
Power Supply 220V, 3KW
Weight Approx. 2200Kg

This machine’s precision and flexibility allow manufacturers to produce a wide range of high-quality, intricate products from 0.070mm metal sheets, making it an essential tool for industries such as electronics, medical devices, aerospace, and more.
