RayTools Bullet Nozzle single and dual-layer nozzles for laser cutting head Laser Cutting Nozzles

Single Laser Cutting Machine Nozzle
Double-Layer Laser Cutting Machine Nozzle
Availability:
Quantity:
  • D28*M11

Product Description

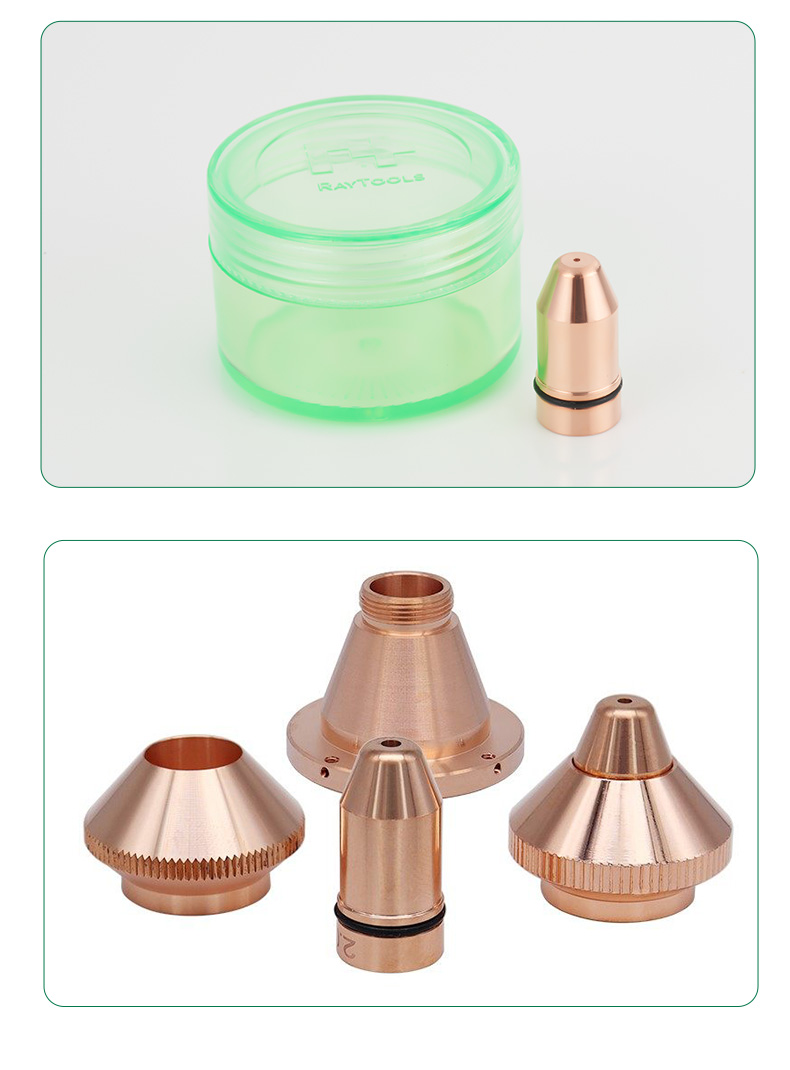

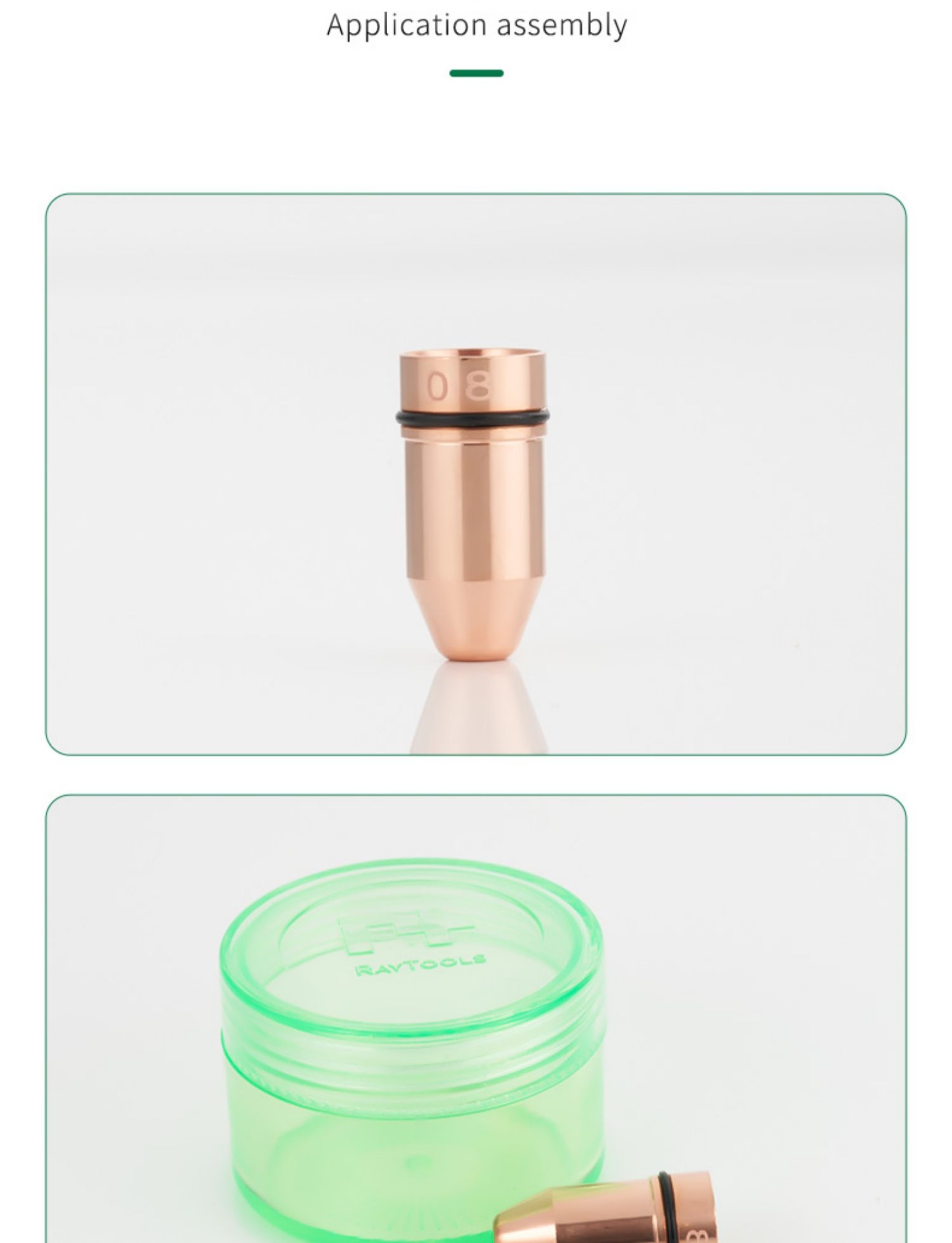

RayTools Original Bullet Nozzle Lock Nut Copper Mounting Base for Laser Cutting Nozzles

This product features a specialized design tailored for high-performance laser cutting applications.

自定义高清放大

Key Features:

  1. Compatibility: Designed specifically for RayTools laser cutting heads, ensuring a perfect fit and optimal performance.

  2. Bullet Nozzle Design: The bullet-shaped nozzle allows for improved gas flow and cutting efficiency, enhancing the overall cutting quality.

  3. Lock Nut Mechanism: The included lock nut securely fastens the nozzle in place, preventing any movement or misalignment during operation, which is critical for maintaining precision.

  4. Copper Material: Made from high-quality copper, the nozzle provides excellent thermal conductivity and heat resistance, suitable for high-power laser applications.

  5. Ease of Installation: The mounting base is designed for quick and easy installation, allowing for efficient maintenance and replacement.

  6. Durability: Built to withstand the rigors of laser cutting environments, ensuring a long service life and reliability in performance.

O1CN012Df4yM1WTrq4IR1IS_!!2212783982790

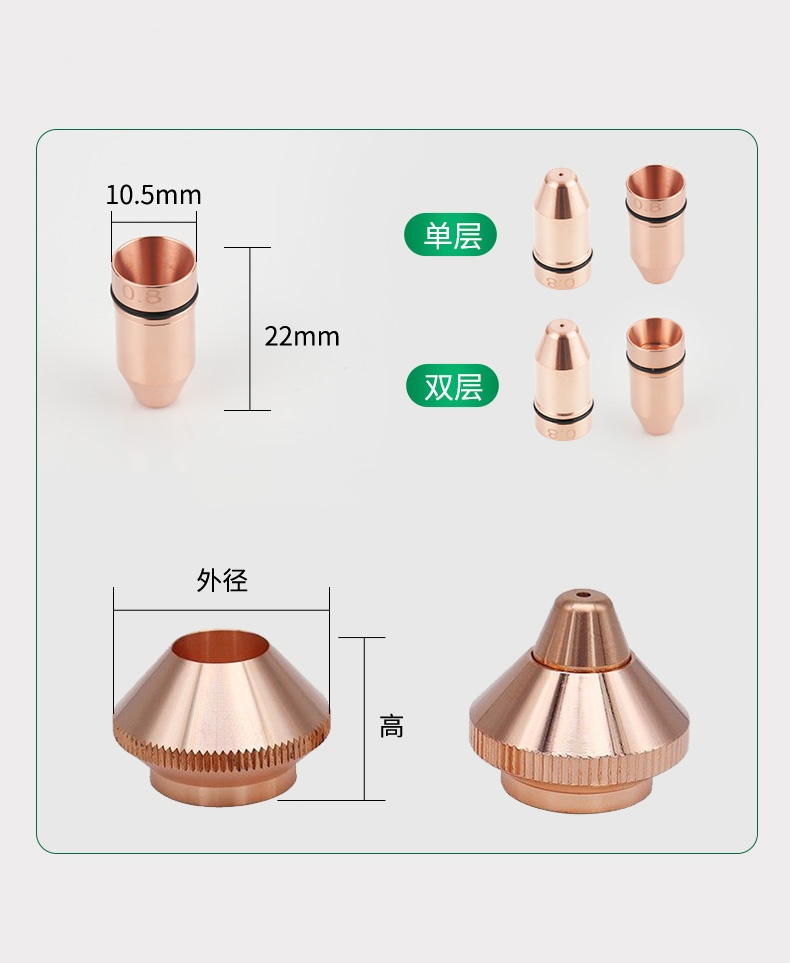

D10.5mm laser cutting nozzles :

Layer Type Diameter (D) Height (H) Aperture (φ) Model Number Quantity
Single-layer D10.5mm H22mm φ0.8mm 211GJT0337 5
Single-layer D10.5mm H22mm φ1.0mm 211GJT0058 5
Single-layer D10.5mm H22mm φ1.2mm 211GJT0261 5
Single-layer D10.5mm H22.2mm φ1.5mm 211GJT0039 5
Single-layer D10.5mm H22mm φ2.0mm 211GJT0098 5
Single-layer D10.5mm H22mm φ2.5mm 211GJT0168 5
Single-layer D10.5mm H22mm φ3.0mm 211GJT0138 5
Single-layer D10.5mm H22mm φ3.5mm 211GJT0335 5
Single-layer D10.5mm H22mm φ4.0mm 211GJT0336 5
Dual-layer D10.5mm H22mm φ0.8mm 211GJT1208 5
Dual-layer D10.5mm H22mm φ1.0mm 211GJT0256 5
Dual-layer D10.5mm H22mm φ1.2mm 211GJT0284 5
Dual-layer D10.5mm H22mm φ1.5mm 211GJT0257 5
Dual-layer D10.5mm H22mm φ2.0mm 211GJT0258 5
Dual-layer D10.5mm H22mm φ2.5mm 211GJT0285 5
Dual-layer D10.5mm H22mm φ3.0mm 211GJT0416 5
Dual-layer D10.5mm H22mm φ3.5mm 211GJT0414 5
Dual-layer D10.5mm H22mm φ4.0mm 211GJT0415 5
Lock Nut D23mm H15mm φ10mm 2110328008B 5
Single-layer D10.5mm H22mm φ1.25mm 210GJT0025 1
Single-layer D10.5mm H22mm φ2.0mm 210GJT0029 1
Single-layer D10.5mm H22mm φ1.5mm 210GJT0060 1
Dual-layer D10.5mm H22mm φ1.0mm 210GJT0256 1
Dual-layer D10.5mm H22mm φ2.0mm 210GJT0258 1
Dual-layer D10.5mm H22mm φ1.8mm 211GJT026 1

Applications:

  • Suitable for cutting various metals, including stainless steel, aluminum, and copper.

  • Ideal for industrial laser cutting operations requiring high precision and efficiency.

O1CN01onh3tE1WTrq1OJOjl_!!2212783982790O1CN01oVXltm1WTrpz3AMrf_!!2212783982790O1CN01NnQ7yB1WTrpyd18Bc_!!2212783982790自定义高清放大 (4)
