RayTools M11 BS12K single and dual-layer nozzles D28mm of BS12K BM114 BM115 laser cutting head for laser cutting machines

Single Laser Cutting Machine Nozzle
Double-Layer Laser Cutting Machine Nozzle
Availability:
Quantity:
  • D28*M11

Product Description

M11 BS12K single and dual-layer nozzles are high-performance components designed specifically for kilowatt-level laser cutting heads, commonly used in high-power laser cutting machines. These nozzles enhance cutting efficiency and ensure superior cutting quality, particularly in thick metal sheet processing.

自定义高清放大

Key Features:

  1. Compatibility: The M11 thread design is specifically tailored for kilowatt-level laser cutting heads, particularly compatible with the BS12K model. It ensures seamless integration with high-power laser systems.

  2. Single and Dual-Layer Construction:

    • Single-layer nozzles: These are ideal for cutting with lower gas pressure, suitable for thinner materials or applications with lower gas flow requirements. They offer precise gas control, leading to smooth cutting edges.

    • Dual-layer nozzles: Designed for use in high-pressure gas environments, they are perfect for high-speed cutting of thicker materials. The dual-layer structure enhances gas flow, increases cutting speed, and provides better protection for the optics, extending the equipment’s lifespan.

  3. Material: Made from high-quality copper, these nozzles have excellent thermal conductivity and heat resistance, ensuring stability during high-power laser cutting operations and reducing the risk of nozzle damage due to heat.

  4. Diameter and Height: The standard M11 nozzles have a D28mm diameter and H15mm height, adhering to industry standards, making them easy to replace and install.

  5. Various Aperture Sizes: BS12K nozzles are available in multiple aperture sizes (e.g., φ1.0mm to φ5.0mm), accommodating different cutting needs. Smaller apertures are used for precision cutting, while larger ones enable faster cutting of thicker materials.

自定义高清放大 (1)

D28mm laser cutting nozzles (both single and dual-layer):

Layer Type Diameter (D) Thread Size (M) Height (H) Aperture (φ) Model Number
Single-layer D28mm M11 H15 φ1.2 120GJT1212
Single-layer D28mm M11 H15 φ1.3 120GJT1213
Single-layer D28mm M11 H15 φ1.4 120GJT1214
Single-layer D28mm M11 H15 φ1.5 120GJT1215
Single-layer D28mm M11 H15 φ1.6 120GJT1216
Single-layer D28mm M11 H15 φ1.7 120GJT1217
Single-layer D28mm M11 H15 φ1.8 120GJT1218
Dual-layer D28mm M11 H15 φ1.2 120GJT2212
Dual-layer D28mm M11 H15 φ1.3 120GJT2213
Dual-layer D28mm M11 H15 φ1.4 120GJT2214
Dual-layer D28mm M11 H15 φ1.5 120GJT2215
Dual-layer D28mm M11 H15 φ1.6 120GJT2216
Dual-layer D28mm M11 H15 φ1.7 120GJT2217
Dual-layer D28mm M11 H15 φ1.8 120GJT2218

Advantages:

  1. Ideal for High-Power Cutting: The BS12K nozzles are specifically designed for kilowatt-level laser cutting heads, capable of withstanding extremely high power outputs, ensuring long-term stable operation in high-power cutting applications.

  2. Efficient Cutting and Precision: Dual-layer nozzles, in particular, are perfect for applications requiring high gas flow. They help expel molten material more effectively, minimizing dross and ensuring cleaner, smoother edges.

  3. Durability and Longevity: Thanks to their robust design and material selection, the BS12K nozzles are highly durable and able to withstand high temperatures and pressure, reducing the frequency of replacements and downtime.

  4. Enhanced Optics Protection: The dual-layer construction provides better protection for the optics from spatter and debris, extending the lifespan of the laser head and reducing maintenance costs associated with damaged lenses.

  5. Versatile Applications: Suitable for cutting various metals such as stainless steel, aluminum, copper, carbon steel, and more, with excellent performance in thick sheet metal processing.

Applications:

  • Heavy Industry: Ideal for sectors such as shipbuilding and heavy machinery manufacturing that require cutting of thick metal plates.

  • Automotive Manufacturing: Used in high-speed, high-precision cutting of metal parts.

  • Metal Fabrication: Including laser cutting, drilling, and other precision metal processing applications.

In summary, the M11 BS12K single and dual-layer nozzles are high-performance components tailored for high-power laser cutting heads.

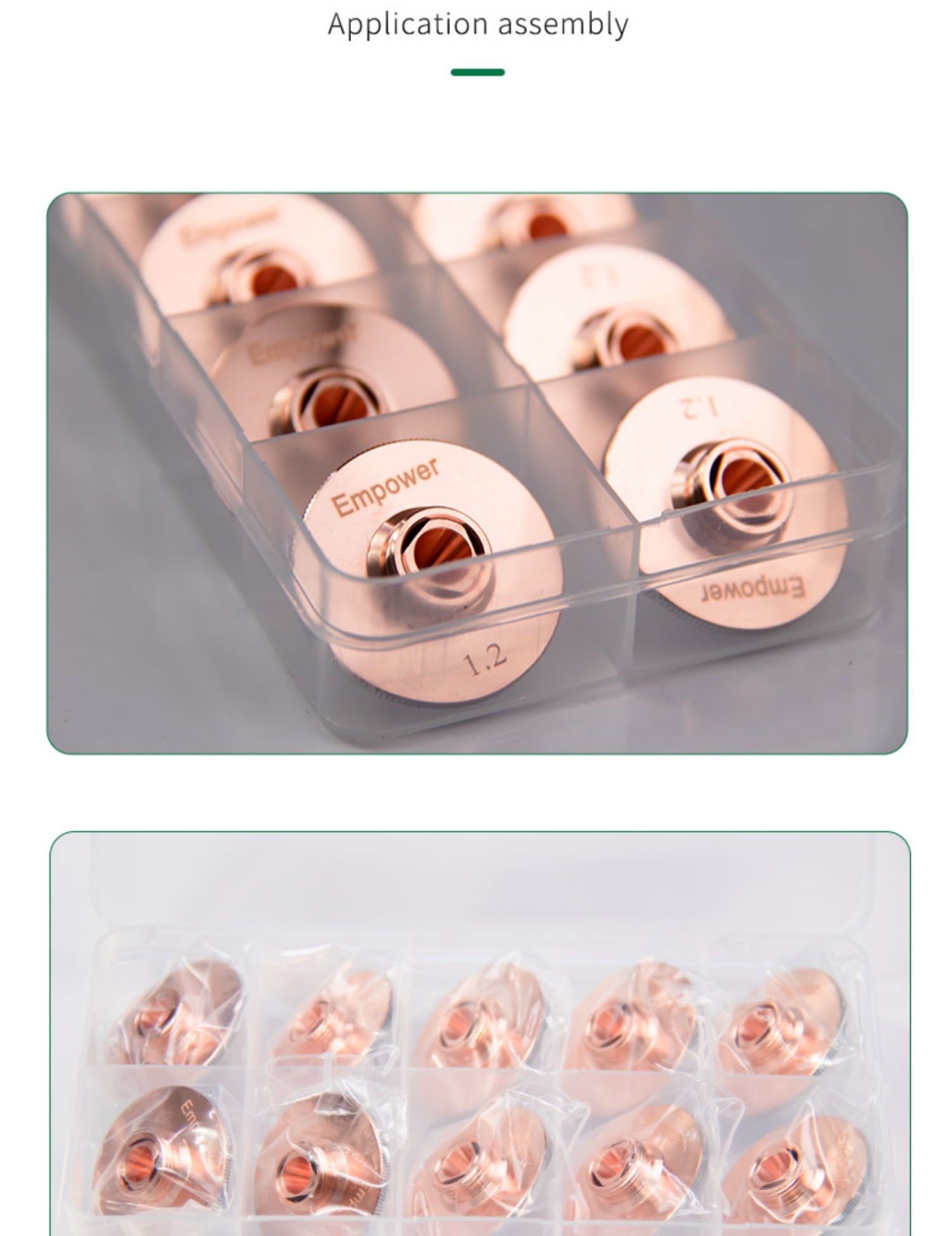

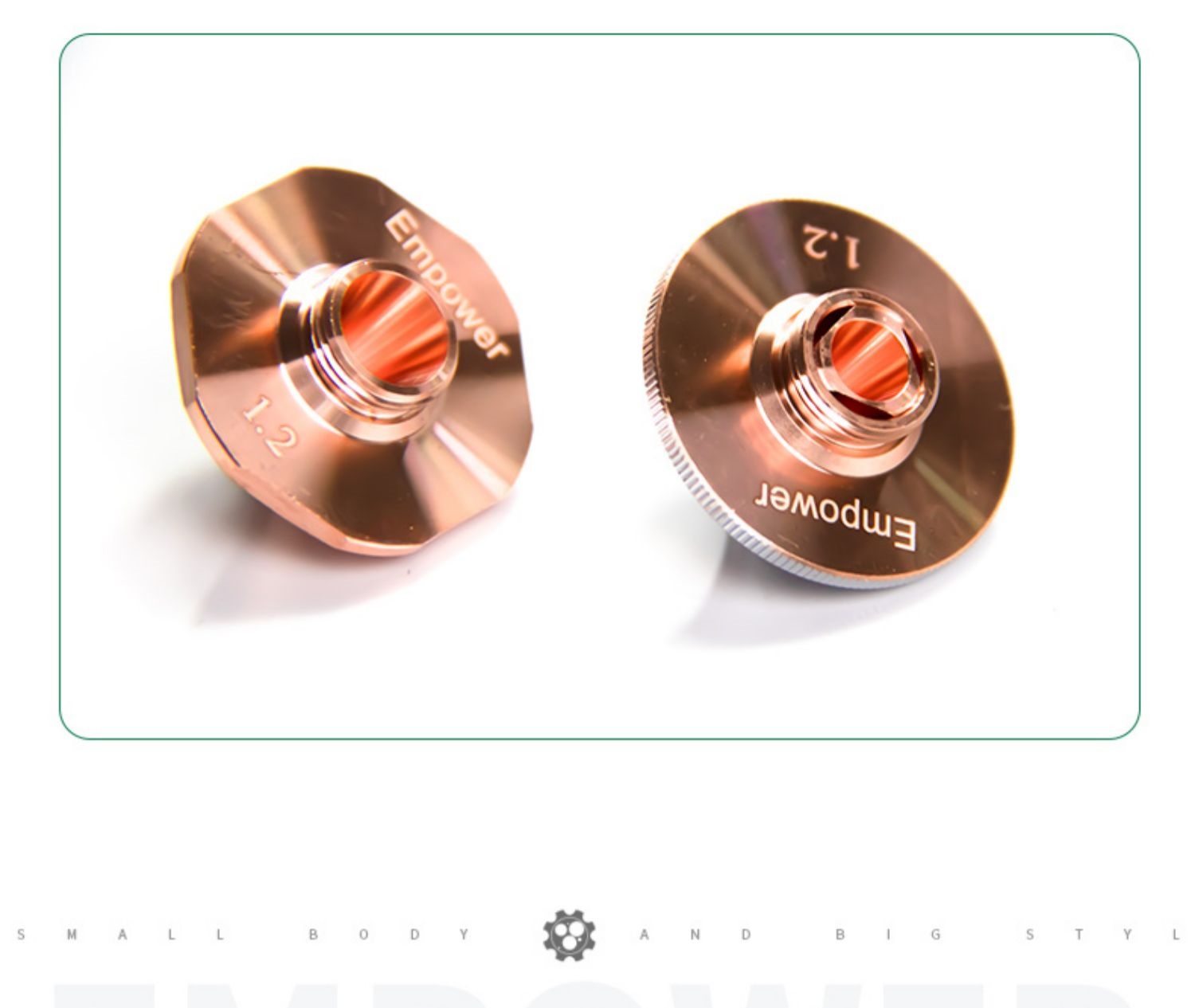

O1CN01rPEsnN1WTrq2dLkfC_!!2212783982790O1CN01YCSzcB1WTrq1sNOQa_!!2212783982790自定义高清放大 (4)
