D28*M11*H15

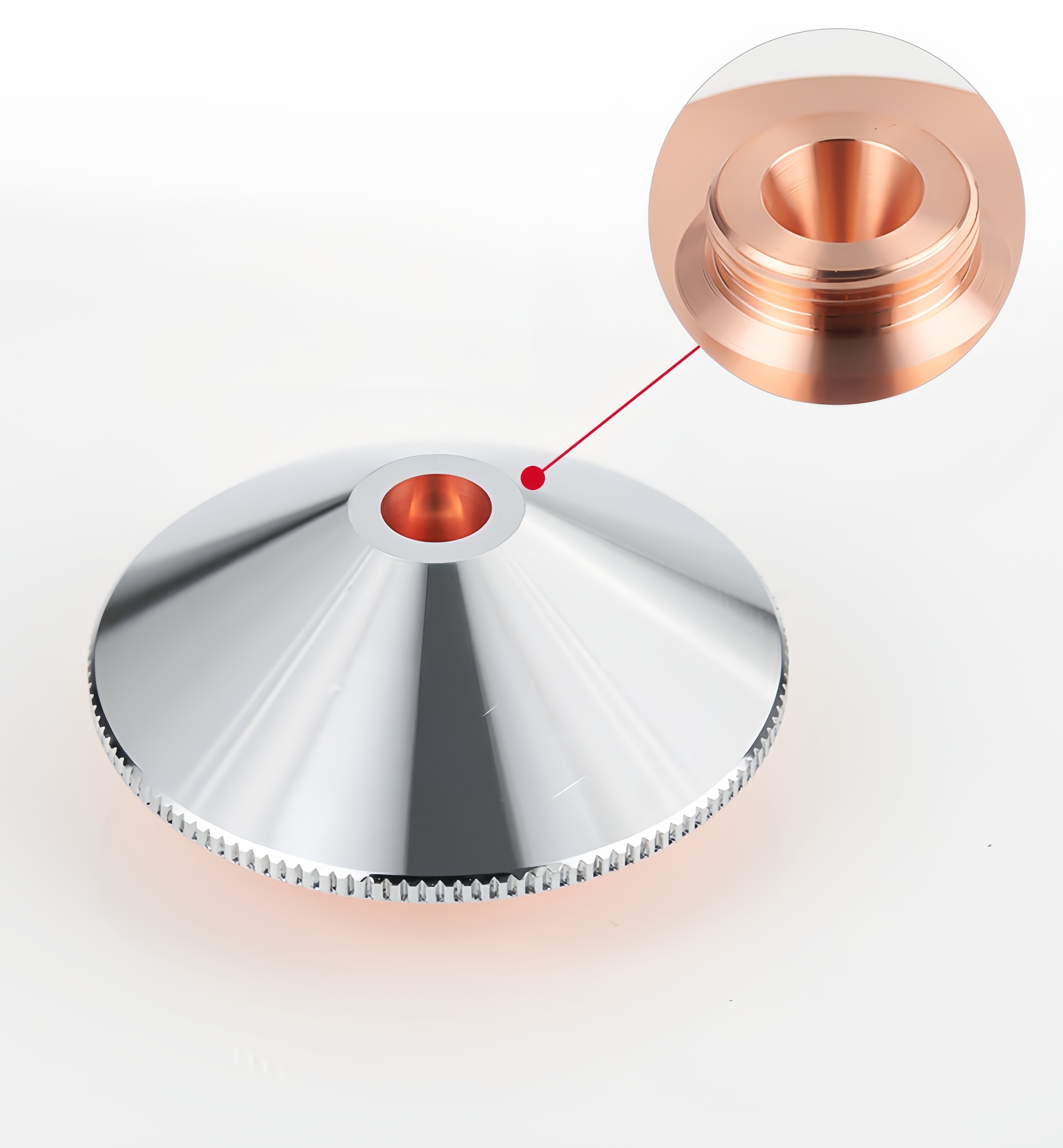

Laser cutting machine nozzles are essential components used in laser cutting operations. They serve to focus the laser beam onto the workpiece and assist in delivering assist gases, which improve cutting efficiency and quality.

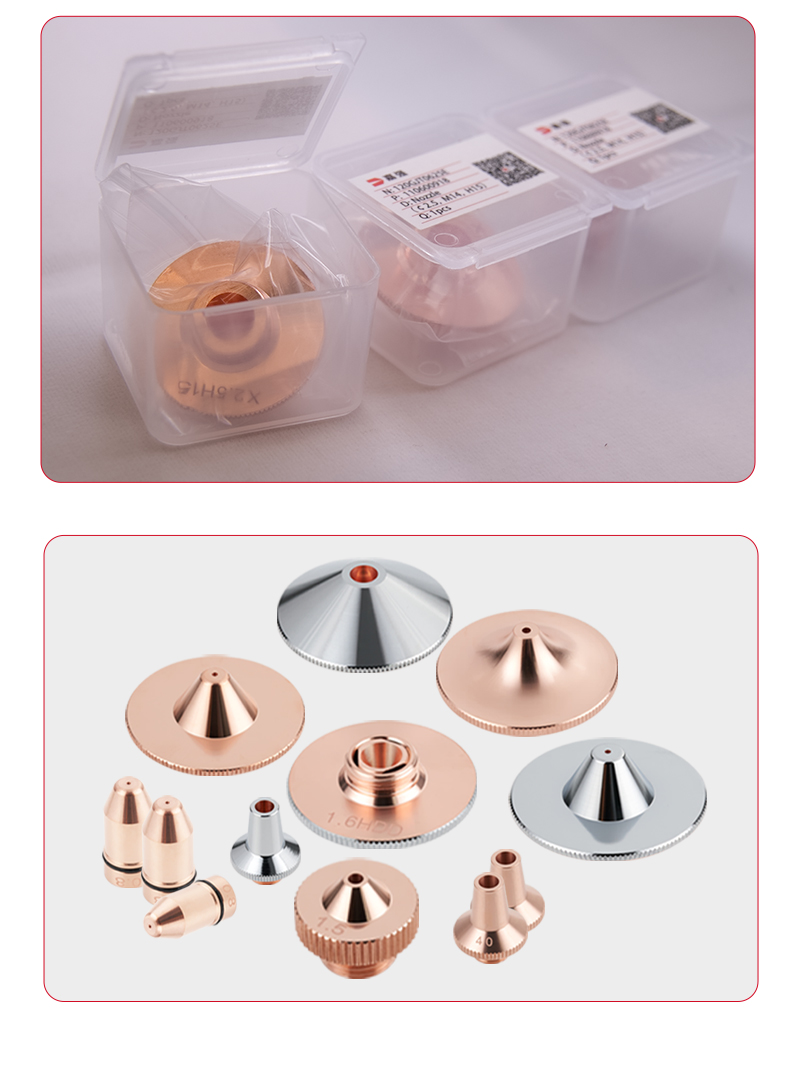

Types:

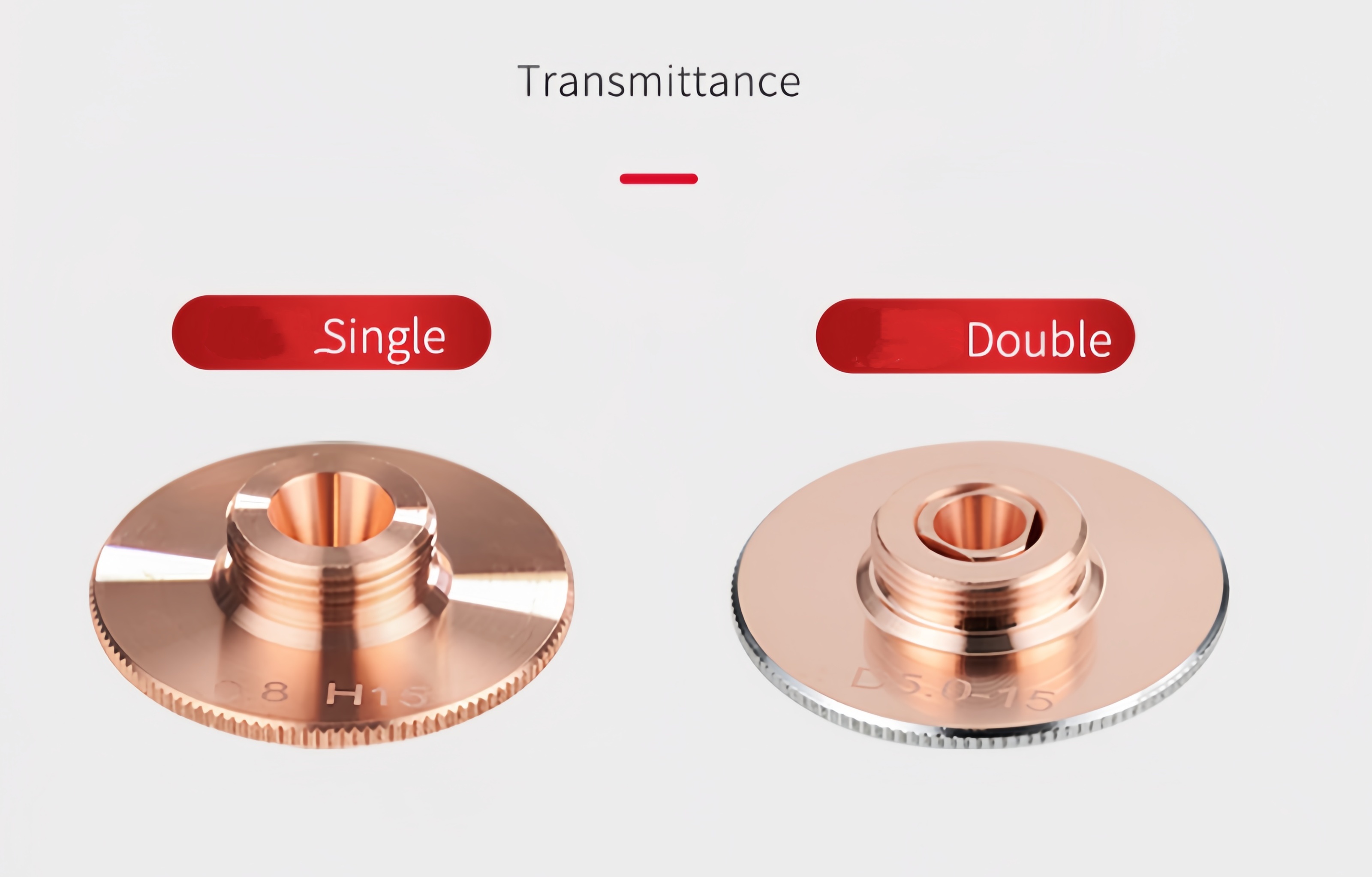

Single-Layer Nozzles: Designed for basic cutting applications, these nozzles provide straightforward performance for various materials.
Double-Layer Nozzles: These nozzles are engineered to enhance gas flow and cooling, making them ideal for cutting thicker materials or achieving higher precision.
Specifications:
Available in various sizes and models, accommodating different laser cutting machines.
Materials often include high-quality quartz or metal for durability and performance.
Common Uses:
Metal fabrication
Automotive manufacturing
Aerospace engineering
General industrial applications
D28M11H15 and D32M14H15 laser nozzles are designed for use in laser cutting machines, providing optimal performance for a variety of applications. These nozzles facilitate precise gas flow and focus the laser beam on the material, enhancing cutting efficiency and quality.
Specifications:
D28M11H15 Laser Nozzles:
Diameter: D28 mm
Mounting Thread: M11
Height: H15 mm
Applications: Suitable for cutting various materials, particularly effective for thinner sheets and intricate designs.
D32M14H15 Laser Nozzles:
Diameter: D32 mm
Mounting Thread: M14
Height: H15 mm
Applications: Ideal for thicker materials and high-speed cutting, providing improved gas flow and cooling.
Features:
Material: Typically made from durable quartz or specialized metals to withstand high temperatures and wear.
Precision Design: Engineered for optimal laser beam focusing and assist gas delivery, ensuring clean cuts and minimal slag.
Common Applications:
Metal fabrication (steel, stainless steel, aluminum)
Automotive and aerospace industries
General industrial cutting tasks
Laser cutting machine nozzles:

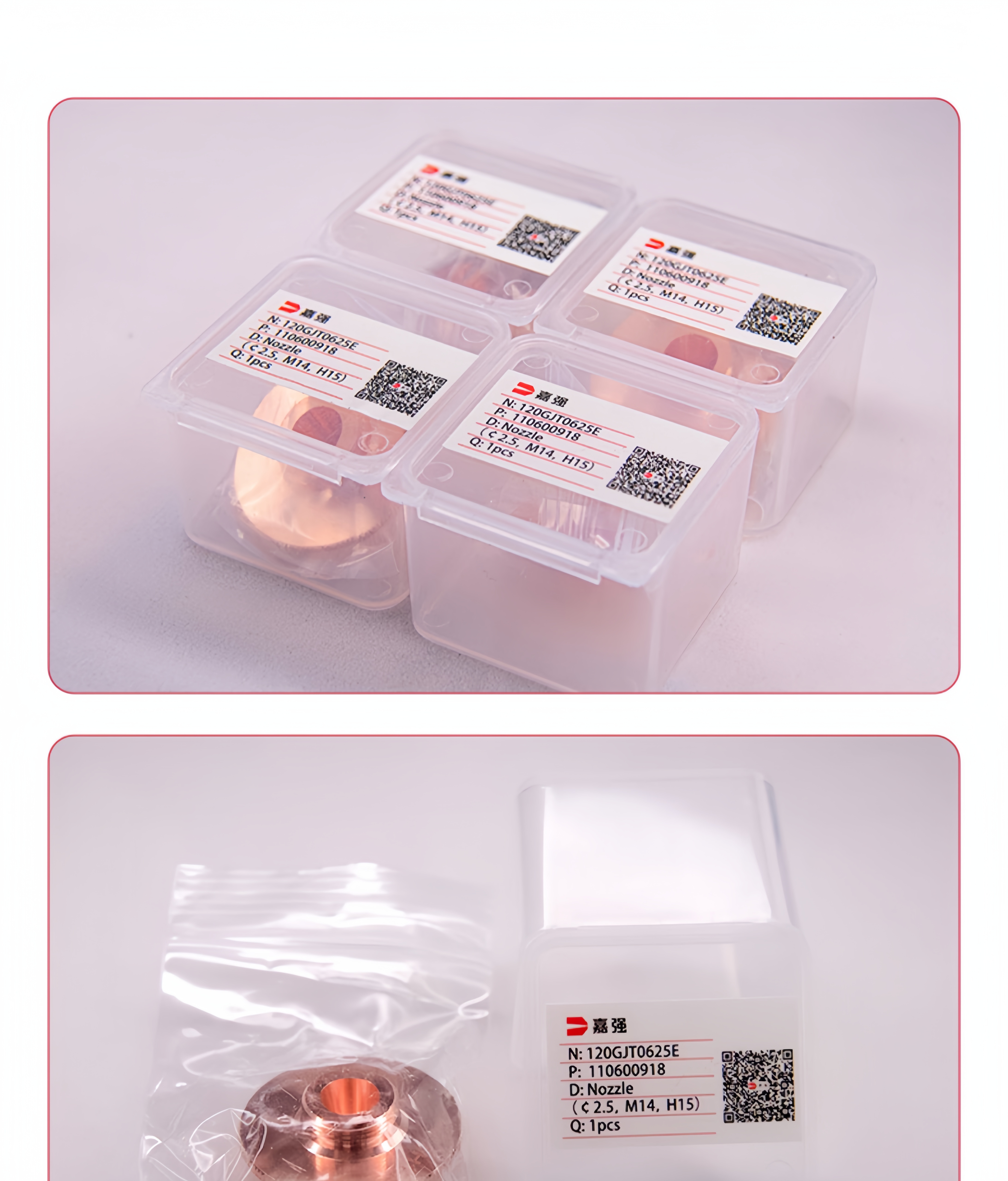

Nozzle Type | Dimensions | Model Number |
---|---|---|
Single | D32M14H15*φ1.0 | 120GJT0510E |
Single | D32M14H15*φ1.2 | 120GJT0512E |
Single | D32M14H15*φ1.5 | 120GJT0515E |
Single | D32M14H15*φ2.0 | 120GJT0520E |
Single | D32M14H15*φ2.5 | 120GJT0525E |
Single | D32M14H15*φ3.0 | 120GJT0530E |
Single | D32M14H15*φ3.5 | 120GJT0535E |
Single | D32M14H15*φ4.0 | 120GJT0540E |
Single | D32M14H15*φ4.5 | 120GJT0545E |
Single | D32M14H15*φ5.0 | 120GJT0550E |
Double | D32M14H15*φ1.0 | 120GJT0610E |
Double | D32M14H15*φ1.2 | 120GJT0612E |
Double | D32M14H15*φ1.5 | 120GJT0615E |
Double | D32M14H15*φ2.0 | 120GJT0620E |
Double | D32M14H15*φ2.5 | 120GJT0625E |
Double | D32M14H15*φ3.0 | 120GJT0630E |
Double | D32M14H15*φ3.5 | 120GJT0635E |
Double | D32M14H15*φ4.0 | 120GJT0640E |
Double | D32M14H15*φ4.5 | 120GJT0645E |
Double | D32M14H15*φ5.0 | 120GJT0650E |
Single | D28M11H15*φ2.0 | 120AU3520E |
Single | D28M11H15*φ3.0 | 120AU3530E |
Single | D28M11H15*φ4.0 | 120AU3540E |
Single | D28M11H15*φ5.0 | 120AU3550E |
Double | D28M11H15*φ1.2 | 120AU3612E |
Double | D28M11H15*φ1.5 | 120AU3615E |
Double | D28M11H15*φ1.6 | 120AU3616E |
Double | D28M11H15*φ1.8 | 120AU3618E |
Double | D28M11H15*φ2.0 | 120AU3620E |
