RayTools Copper Nozzle D28mm for Laser Cutting Head Models BT220, BM115, BM114 for Laser Cutting Machines
Original RayTools laser cutting head with single and dual-layer high-speed copper nozzles, D28mm.
Type | Diameter (D) | Thread (M) | Height (H) | Nozzle Diameter (φ) | Model | Pieces per Set |
---|---|---|---|---|---|---|
Single-layer | D28 | M11 | H15 | φ1.0 | 120AU3510A | 5 |
Single-layer | D28 | M11 | H15 | φ1.5 | 120AU3515A | 5 |
Single-layer | D28 | M11 | H15 | φ2.0 | 120AU3520A | 5 |
Single-layer | D28 | M11 | H15 | φ2.5 | 120AU3525A | 5 |
Single-layer | D28 | M11 | H15 | φ3.0 | 120AU3530A | 5 |
Single-layer | D28 | M11 | — | φ3.5 | 120AU3535A | 5 |
Single-layer | D28 | M11 | H15 | φ4.0 | 120AU3540A | 5 |
Single-layer | D28 | M11 | H15 | φ5.0 | 120AU3550A | 5 |
Dual-layer | D28 | M11 | H15 | φ1.0 | 120AU3610A | 5 |
Dual-layer | D28 | M11 | H15 | φ1.2 | 120AU3612A | 5 |
Dual-layer | D28 | M11 | H15 | φ1.5 | 120AU3615A | 5 |
Dual-layer | D28 | M11 | H15 | φ2.0 | 120AU3620A | 5 |
Dual-layer | D28 | M11 | H15 | φ2.5 | 120AU3625A | 5 |
Dual-layer | D28 | M11 | H15 | φ3.0 | 120AU3630A | 5 |
Dual-layer | D28 | M11 | H15 | φ3.5 | 120AU3635A | 5 |
Dual-layer | D28 | M11 | H15 | φ4.0 | 120AU3640A | 5 |
Dual-layer | D28 | M11 | H15 | φ4.5 | 120AU3645A | 5 |
Dual-layer | D28 | M11 | H15 | φ5.0 | 120AU3650A | 5 |
Single-layer | D32 | M14 | H15 | φ2.5 | 120GJT2525 | 5 |
Single-layer | D32 | M14 | H15 | φ3.0 | 120GJT2530 | 5 |
Single-layer | D32 | M14 | H15 | φ3.5 | 120GJT2535 | 5 |
Single-layer | D32 | M14 | H15 | φ4.5 | 120GJT2545 | 5 |
Single-layer | D32 | M14 | H15 | φ5.0 | 120GJT2550 | 5 |
Dual-layer | D32 | M14 | H15 | φ1.2 | 120GJT1612 | 5 |
Dual-layer | D32 | M14 | H15 | φ1.5 (2018 Model) | 120GJT1615 | 5 |
Dual-layer | D32 | M14 | H15 | φ2.5 | 120GJT3625 | 5 |
Dual-layer | D32 | M14 | H15 | φ3.5 | 120GJT3635 | 5 |
Dual-layer | D32 | M14 | H15 | φ4.0 | 120GJT3640 | 5 |
Dual-layer | D32 | M14 | H15 | φ4.5 | 120GJT3645 | 5 |
Dual-layer | D32 | M14 | H15 | φ5.0 | 120GJT3650 | 5 |
Dual-layer | D32 | M14 | H15 | φ5.0 | 120GJT3651 | 5 |
The D28 copper nozzles, both single and dual-layer, are essential components designed for high-performance laser cutting heads, particularly compatible with models such as BT220, BM115, and BM114. These nozzles play a critical role in optimizing the cutting precision, speed, and quality in laser cutting machines.
Compatibility: These nozzles are specifically engineered to fit RayTools BT220, BM115, and BM114 laser cutting heads, ensuring seamless integration and optimal performance.
Single and Dual-Layer Options:
Single-layer nozzles are ideal for applications requiring lower gas pressure and are commonly used in cutting thinner materials.

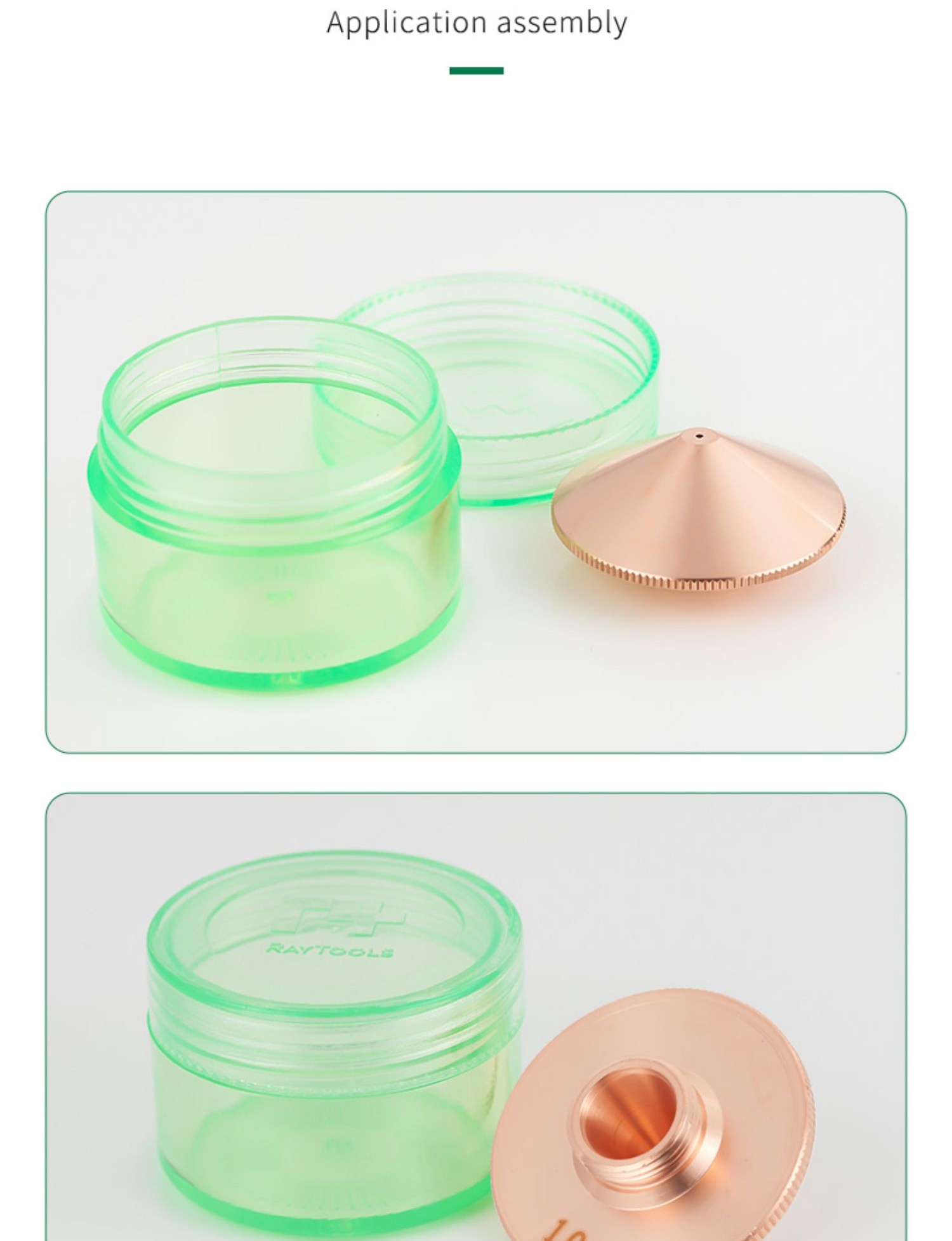

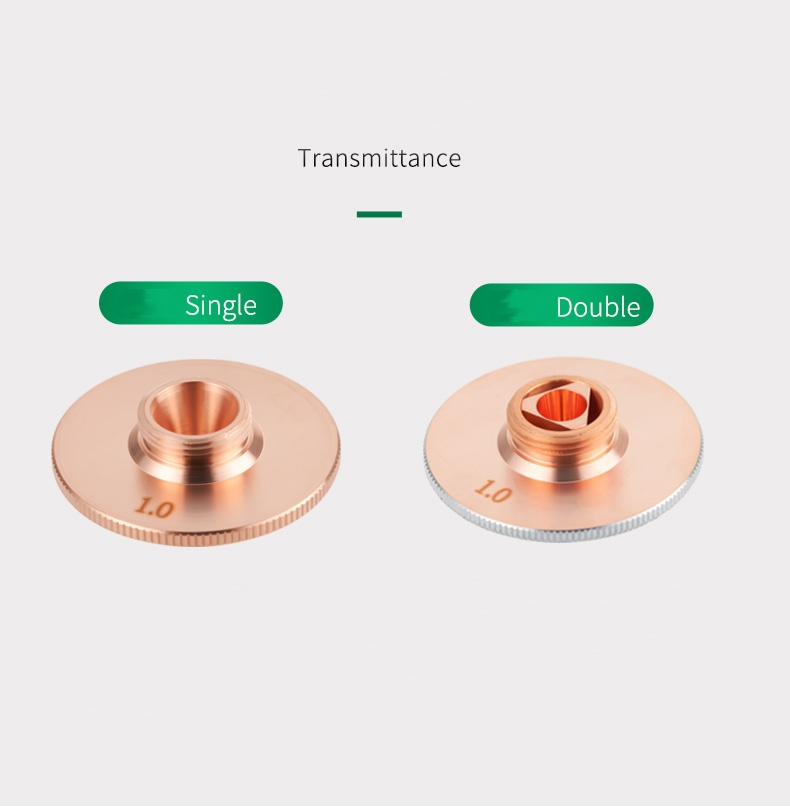

Dual-layer nozzles are designed for higher gas flow, providing enhanced protection for the lens and improved cooling efficiency, making them suitable for thicker materials or high-speed cutting operations.
Material: Made of high-quality copper, these nozzles offer excellent heat resistance and conductivity, which is crucial for maintaining performance consistency under high temperatures during laser cutting.
Nozzle Diameter Variations: The D28 nozzles come in various aperture sizes (ranging from φ1.0mm to φ5.0mm) to accommodate different cutting requirements. Smaller diameters focus the gas more narrowly for precision cuts, while larger diameters allow for faster cutting of thicker materials.
Efficient Gas Flow: The nozzles are designed to provide optimized gas flow, enhancing the cutting process by ensuring efficient heat removal and material ejection. This leads to clean cuts with minimal dross.

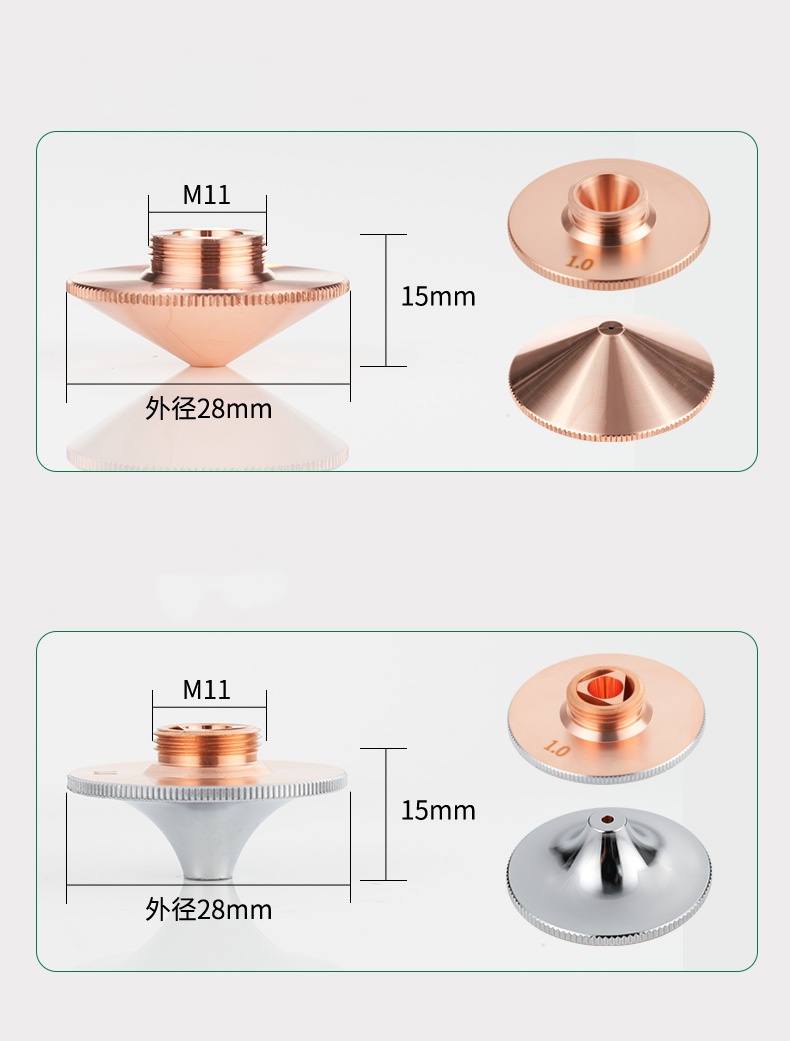

Precision Engineering: Both single and dual-layer nozzles feature a D28 diameter, M11 thread, and H15 height, offering a universal fit and ensuring precision in the laser beam's focus and gas flow.
High Speed and Precision: The design of these nozzles ensures high-speed cutting while maintaining precision, making them suitable for various industries such as automotive, electronics, and metal fabrication.
Versatility: The different aperture sizes make these nozzles versatile for cutting various materials like stainless steel, aluminum, copper, and carbon steel in both thin and thick forms.
Durability and Longevity: The high-quality copper construction ensures the nozzles withstand high temperatures and extended usage, reducing the need for frequent replacements.
Enhanced Cutting Quality: Dual-layer nozzles, in particular, offer better cutting quality on thicker materials due to improved gas control and cooling.
Single-layer Nozzles: Best suited for cutting thinner materials where lower gas pressure is sufficient, often used in precision applications requiring smooth edges.
Dual-layer Nozzles: Ideal for cutting thicker materials or high-speed operations, providing greater protection for the optical components and improved cutting efficiency.
