The octagonal welding table is used on a positioner in a robot cell. It offers the same clamping possibilities as the 3D welding table.

The octagonal welding table is used on a positioner in a robot cell. It offers the same clamping possibilities as the 3D
welding table.
Availability:
Quantity:
  • Octangle Welding Table

  • XZR

Product Description

Octangle Welding Table

The octagonal welding table is used on a positioner in a robot cell. It offers the same clamping possibilities as the 3D welding table.


2019316145110

88

Instructions for using the basic platform

The three-dimensional flexible combined fixture is divided into 8 categories according to the different functions of each component: working platform, support, positioning piece, adjustment key, pressing piece, locking piece, joint piece, and accessories. The function and use method in tooling are introduced in detail.


O27W7`H`Q7K5KIIDJNLK4

The support feet of the platform include standard support feet, universal wheel support feet, fixed support feet, frame structure support and hydraulic lifting support, etc. to meet the different needs of customers. This series of carefully designed for use provides great convenience.


Instructions for use of supports


Supports include: U-shaped square box, L-shaped square box, support angle iron, angle connection seat, etc. Each group of supports has different types.

Positioning elements of the same size.

2.1 U/L square box

U/L-shaped square boxes have 5 and 3 working surfaces respectively, and their functions are:

a) Extension of fixture table and providing clamping position

b) Two fixture tables or more than two fixture tables are connected

c) Can be used as a positioning and support module in the fixture system

AXHBEJY8)6XV_X5135HJ6


2.2 Support angle iron

The support angle iron has 3 working surfaces, and its functions are:

a) Extension of fixture table and providing clamping position

b) can be adjusted arbitrarily and can be precisely positioned

c) It can be placed on the surface or side of the fixture table for large-scale positioning

6NA61605DT7QG_)%_%OA


2.3 Angle type connector

Angle type connecting seat is used for bevel edge extension of fixture table, V-shaped positioning use, angle stop of each accessory

N0)HFV`W%CXUCON)MP3M1X

Instructions for use of positioning parts

The positioning pieces include: positioning squares, positioning squares, plane squares, V-shaped positioning pieces, etc., and each set of positioning pieces includes positioning elements of different sizes.

3.1 Positioning square

The positioning square has two working surfaces, and its functions are: a)

The extension of the fixture table and the provision of positioning clamping positions b)

Arbitrary adjustments and precise positioning possible

c) Squares with different structures and heights can be flexibly adjusted in size and can be used with other accessories to locate the three-dimensional shape of the space

R)BE%5L1KG`7`II00_LC


3.2 Positioning the ruler

The positioning ruler has two working surfaces, and its functions are:

a) Arbitrary adjustment and precise positioning on the fixture table and all accessories, the adjustment amount is an integer multiple of 25mm b)

Can be used for 45°, 90°, 135°, 180° positioning and clamping

c ) Can be used to install quick clamps with toggle plate

P0SM9SQLX5G2UF87BMKI(5L


flat square

a) can be adjusted arbitrarily and can be precisely positioned

b) Can be used for 45°, 90°, 135°, 180° positioning and clamping

Y%C10JOMW7`KS_MNEE

V-shaped positioning piece

The V-shaped positioning piece is mainly used for the positioning and support of pipe fittings. The V-shaped positioning piece can be inserted into the platform or other fixed position.

The positioning workpiece is supported in any hole of the positioning element.

9JI7YALCC8XE)AF7253V8

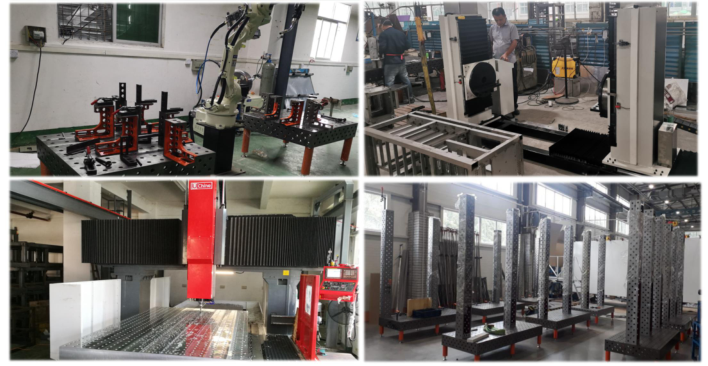

Practical case

BYCX%O35K8D7P)R93YRRYT(HEWL)UY4CJR08YQS(6R
