3D Welding Table 3D Welding Fixture

3D modular fixture system has a high precision hole grid system. The system enables a high precision and repetition.The welding table has a hole grid system of 100×100 mm with a bore diameter of 28 mm or 16mm.It is possible to extend in all five directions.
Availability:
Quantity:
  • 3D Steel Welding Table

  • XZR

Product Description

3D Welding Table 3D Welding Fixture


3D modular fixture system has a high precision hole grid system. The system enables a high precision and repetition.

The welding table has a hole grid system of 100×100 mm with a bore diameter of 28 mm or 16mm.It is possible to extend in all five directions.

The welding table has exact size. It is made of high quality steel which has high strength and rigidity.

Each side can extend 800mm by supporting angle and corner connecting block. When you use U-shaped square and supporting legs, it can extend longer.(via the corner connecting block).

We can meet the request of large workpiece through U-shaped squares.A few fixture table connect together to become a positioning surface in the landscape or portrait. (It can be used in positioning and clamping large workpiece, such as container, bus, large engineering machinery etc.)

201931613370


3D Steel Welding Table

The 3D steel welding table is the most flexible table of the 3D Modular Fixture System. It has a horizontal / vertical hole arrangement on all five surface. It is possible to extend in all five direction. The welding table has a hole grid system of 100×100 mm with a bore diameter of 28 mm or 16mm.

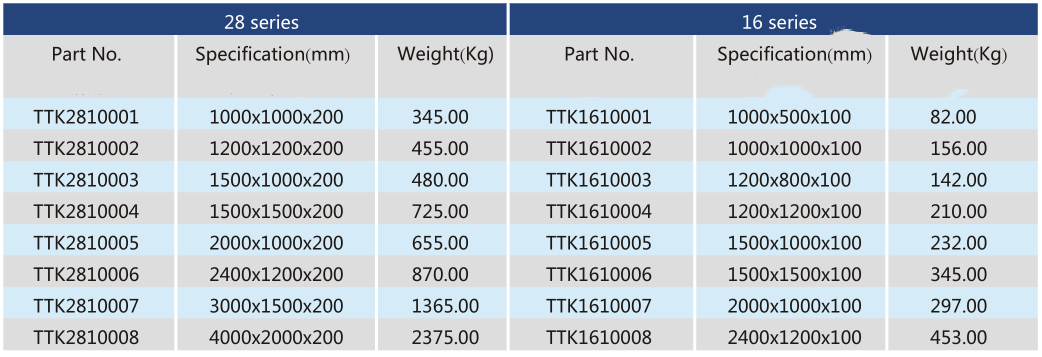

%D5Q%Q8LLO_P0RP8
