DRK32HWG-B Square Hollow Laser Pneumatic Rotary Chuck rear chuck for Tube Cutting Machine

A very important part of the pipe laser pipe cutting machine is the chuck. The maintenance of the chuck determines whether the round pipe laser pipe cutting machine can operate normally, whether the automatic steel pipe cutting machine can cut products with high precision, and whether the cut products have no flaws. Burr, can be used directly.
Availability:
Quantity:
  • DRK32HWG-B

  • DAIRUIKE

Product Description

DRK32HWG-B Square Hollow Laser Pneumatic Rotary Chuck rear chuck for Tube Cutting Machine


- Small inertia

Using the same power motor, the acceleration is faster and the drive is more stable

- less leftover

It can extend into the inner hole of the matching front card to the maximum extent

-Built-in dust extraction duct

It is convenient for matching dust extraction and improving the quality of the inner wall when the pipe is cut.

-High rigidity

High rigidity long cantilever structure design to meet heavy pipe clamping

-Can realize special-shaped pipe clamping

Optional clamping of various profiles to keep the pipe fittings from slipping

DRK32HWG-B

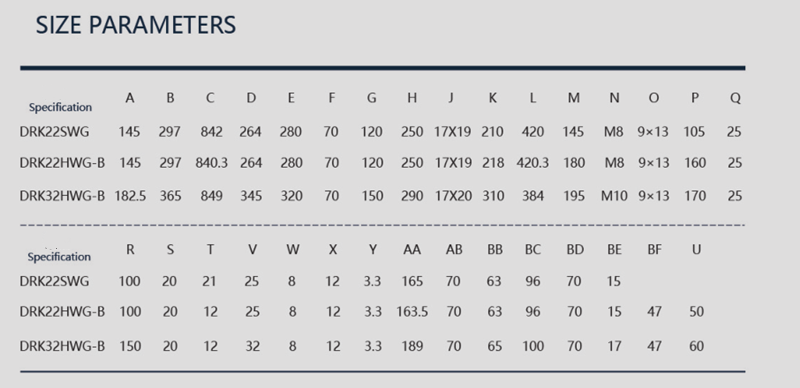

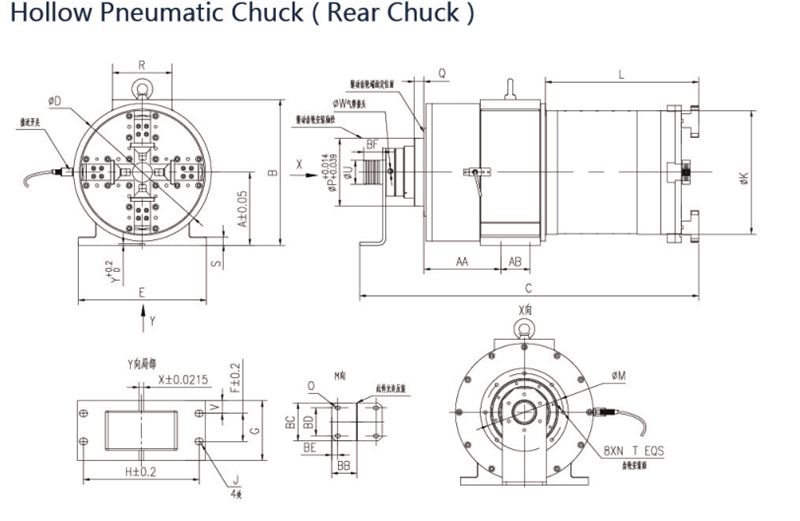

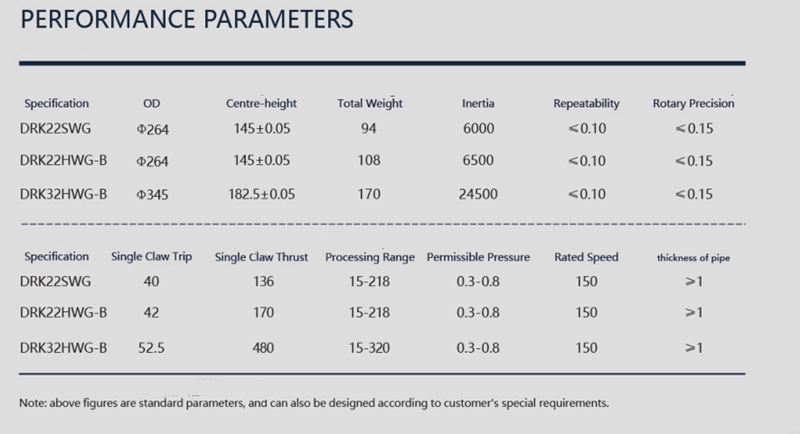

QQ图片20220808140913QQ图片20220808140956QQ图片20220808141018
