Laser Protective Window for Raytools BM114S

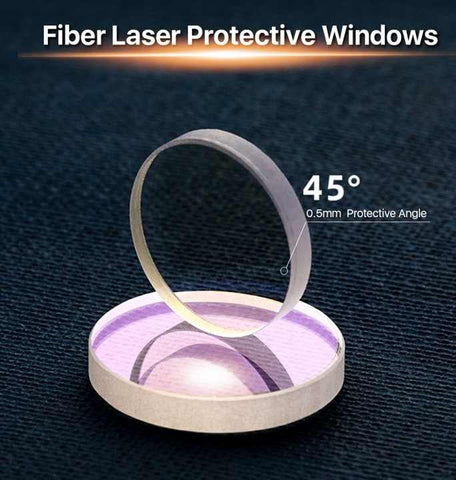

◆1064nm Fiber Cutting Welding Machine Head Laser Protection Windows
Diameter 20-29mm Series1064nm Fiber Laser Protective Windows
Material: Quartz Fused Silica
Wavelength: 1064nm(900-1100nm)
Transmittance: >99.5%
Laser Power: 0 - 6kW
Application: Fiber YAG Laser Cutting Welding Machine
Fiber Cutting Head Brand: Precitec Raytools WSX HIGHYAG






Availability:
Quantity:
Inquire Add to Basket

  • D18X2mm

  • D18

Product Description

D18X2mm Protective Lens Quartz Laser Protective Window for Raytools BM114S BM115 WSX NC60 Cutting Head Protection Lens Glass

If you need other type, you can send photos to us , we will confirm with you!
Our company is very professional supplier and different from others! We can provide SUP20S Laser Welding Head, Water Chiller, Raycus and Max Laser Source and Machines too! Welcome to be our agent!  If you order in bulk, we will give you best price!


◆1064nm Fiber Cutting Welding Mac hine Head Laser Protection Windows
Diameter 20-29mm Series1064nm Fiber Laser Protective Windows
Material: Quartz Fused Silica
Wavelength: 1064nm(900-1100nm)
Transmittance: >99.5%
Laser Power: 0 - 6kW
Application: Fiber YAG Laser Cutting Welding Machine
Fiber Cutting Head Brand: Precitec Raytools WSX HIGHYAG

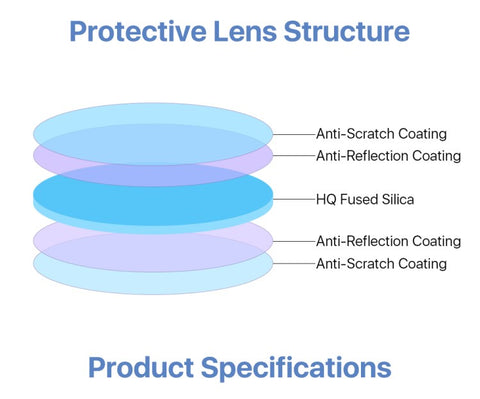

◆Protective lens structure
The high-temperature coating of the automatic coating machine adopts the original German coating material, and the anti-reflection coating with high damage threshold is coated on both sides, and the reflection loss is minimized.

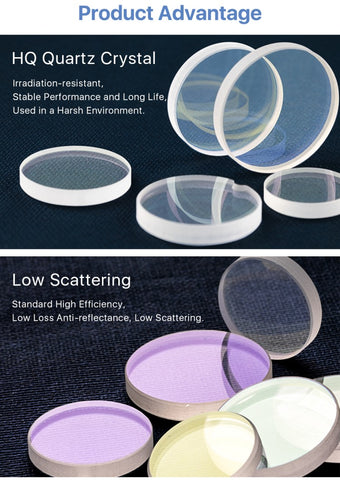

◆High Quality Fused Silica Fiber Laser Protective Lens
1.lrradiation-resistant, Stable Performance and Long Life,Used in a Harsh Environment.
2. Low Scattering Standard High Efficiency, Low Loss Anti-reflectance, Low Scattering.

◆ Ar Fused Silica Laser Protective Windows for Fiber Laser Machine

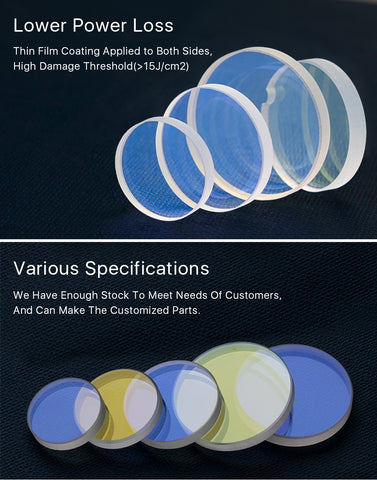

3.Lower Power Loss Thin Film Coating Applied to Both Sides,High Damage Threshold(>15J/cm2)

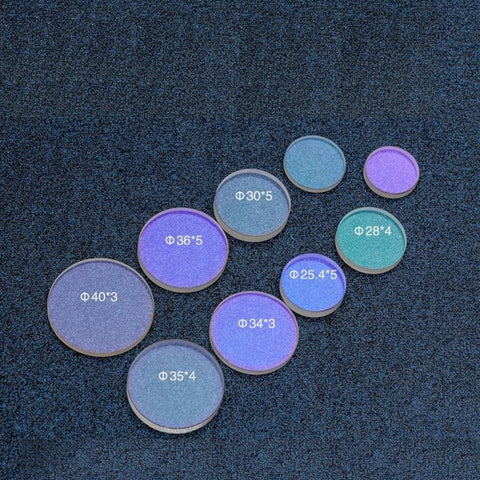

4.Various Specifications We Have Enough Stock To Meet Needs Of Customers, And Can Make The Customized Parts.


Why choose us？

DOUBLE COATING STRONG DURABILITY
Anti-reflection flm with high damage threshold is coatedon both sides to reduce the loss caused by reflection and protect it from splash and other hazards

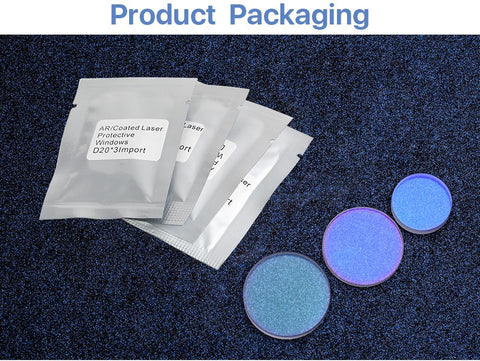

◆Packaging & Shipping

Standard export packing customized packing as your request We use hard boxes, your cargo will not be affected in any way

Every optical lens is packed with great care and tough material. It is packed with cling films first and then film bags. At last, it is packed with a hard box

We can transport the lens by sea/air freight or express by DHL EMS UPS etc. According to your requirement.



◆Efficient express delivery, door-to-door service, you can receive the express without leaving home
